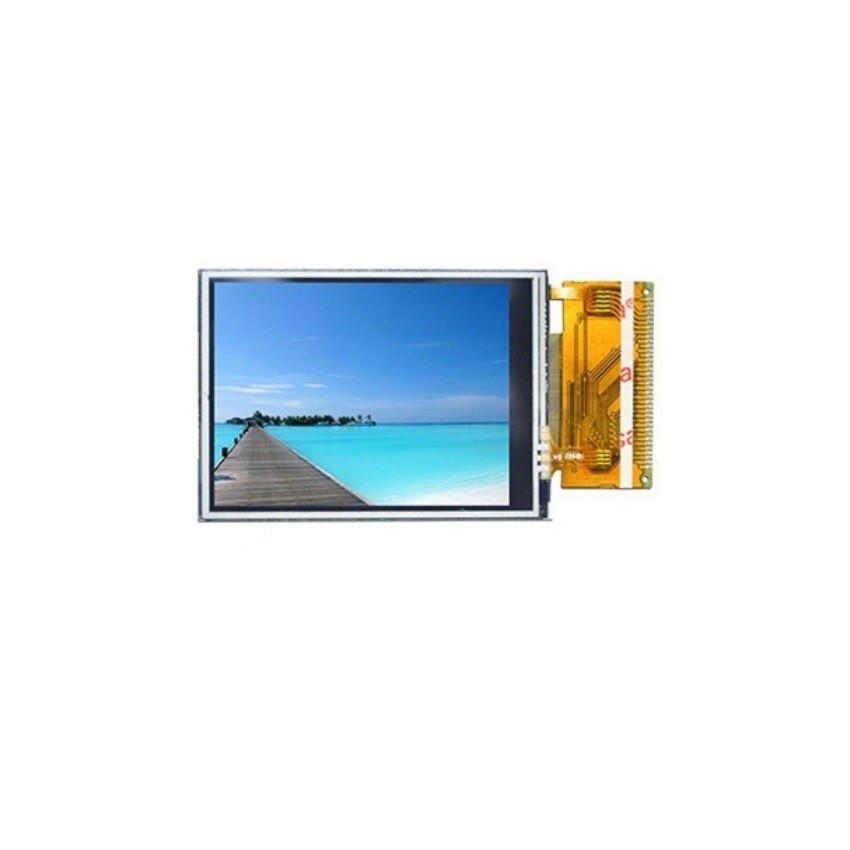

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.4英寸 LCD RG024GQT-02R 2.4英寸 LCD 240x320 180nit 37
| Item | Standard |
| LCD Type | TFT/Transmissive |
| Driver element | a-Si TFT Active matrix |
| Number of Dots | 320*240 Dots |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 36.72 *48.96 mm |
| Viewing Direction | 6 O'clock |
| Driver IC | ILI9341V |
| Module Size(W*H*T) | 76.9x63.9x4.3 mm |
| Approx. Weight | TBD g |
| Back Light | 4-DIES White LED |
| System interface | 1. 8/ 9/ 16/ 18-bit 6800-series /8080-series Parallel Interface |
| 2. Serial Peripheral Interface (SPI) | |
| 3. 18-/6-bit RGB interface (DE,DOTCLK, HSYNC, VSYNC, DB[17:0]) | |
| 4. WSYNC interface (system interface + WSYNC) |
