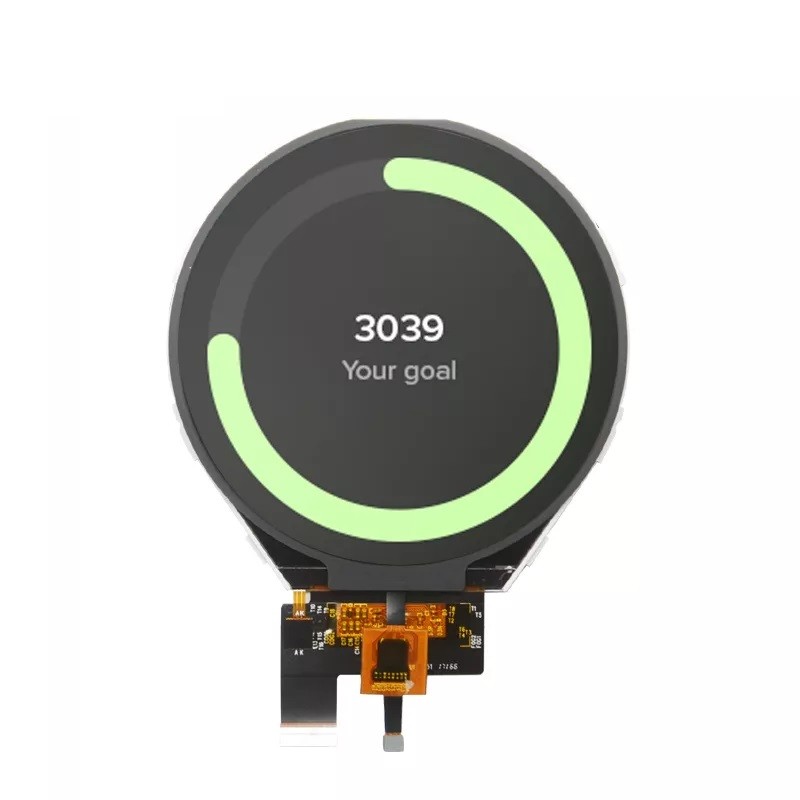

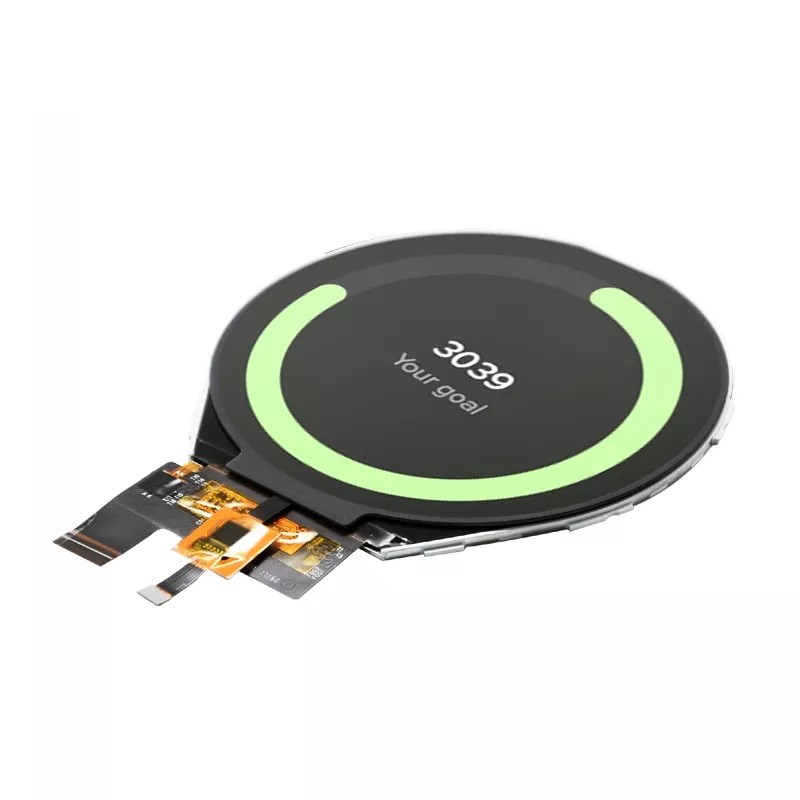

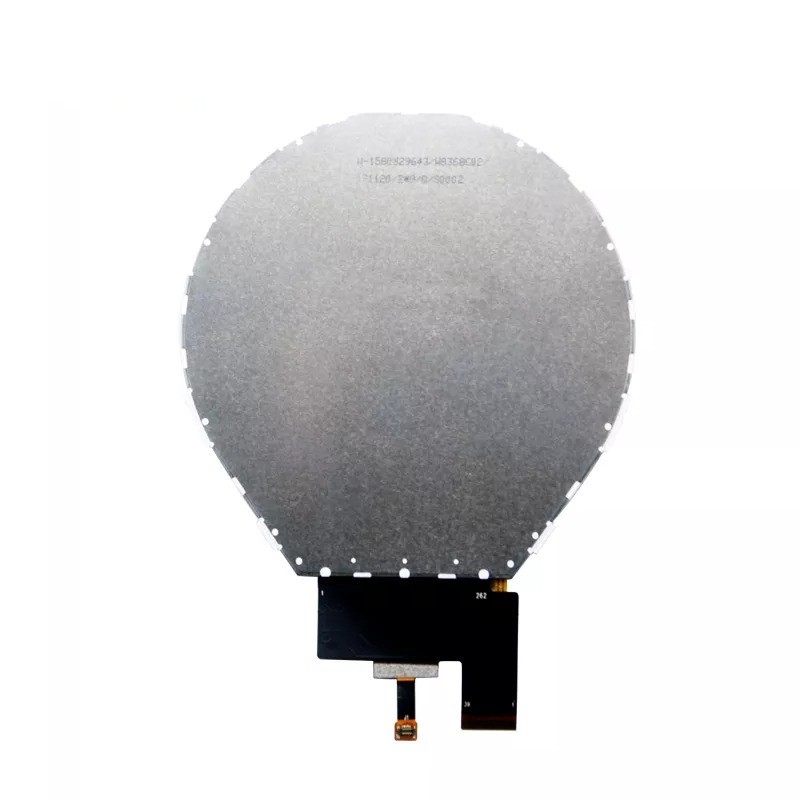

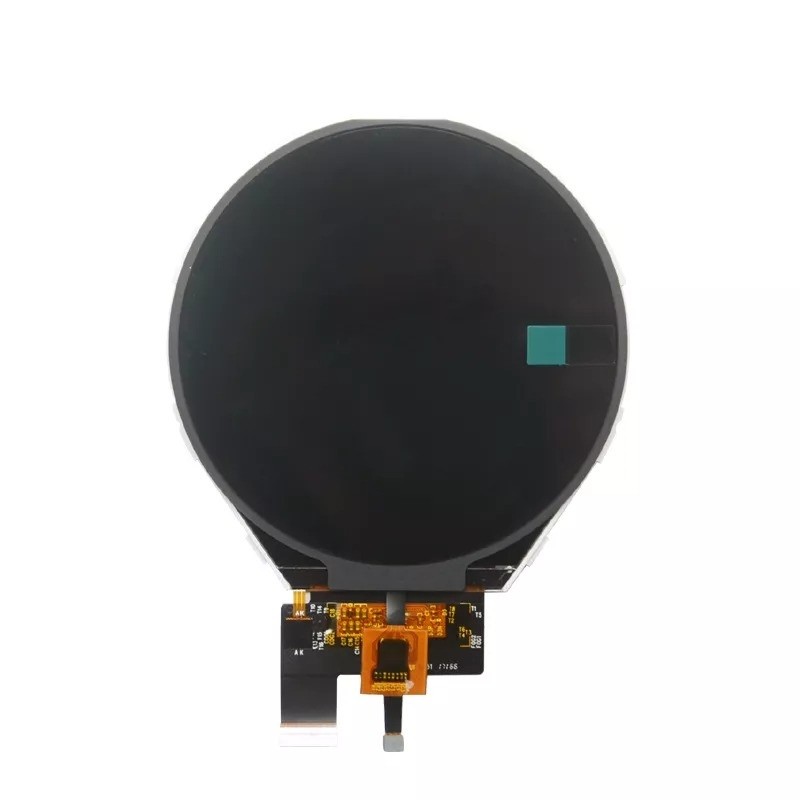

首页 产品展示 3英寸-4英寸 TFT LCD 3.4英寸 LCD RG034TQH-01CP 3.4英寸 800x800 圆形LCD带触摸
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.4 | inch |
| Resolution | 800*800 | dots |
| Pixel pitch | 0.1095(H)* 0.1095(V) | mm |
| Display Mode | IPS | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 96.60*99.00*3.98 | mm |
| Active Area (W * H ) | 87.60*87.60 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 4S2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MIPI | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 12.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ILI9881C | - |
| CTP Dricer IC | HX8526 | - |
