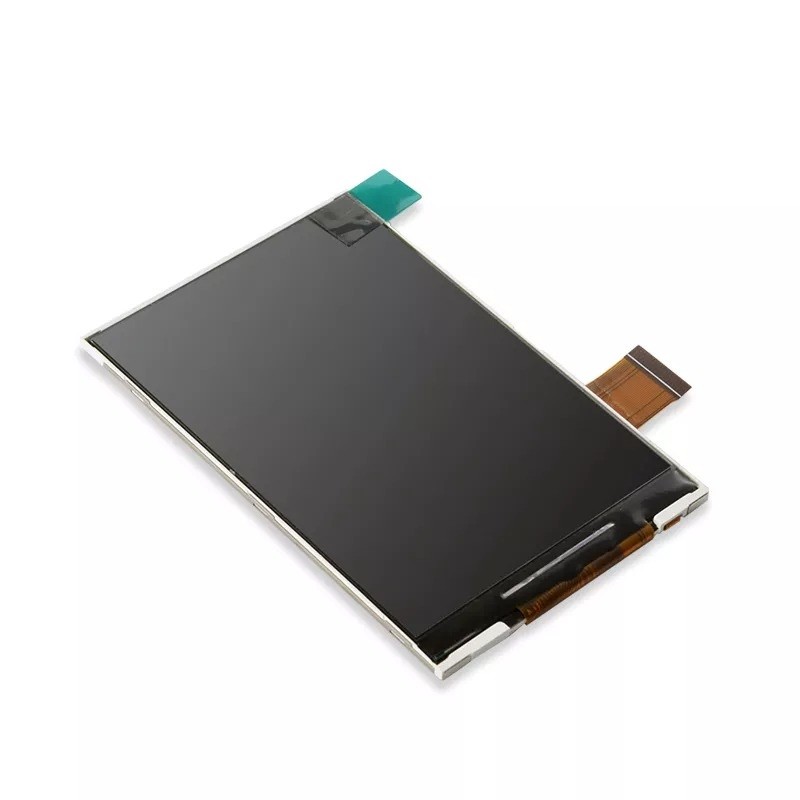

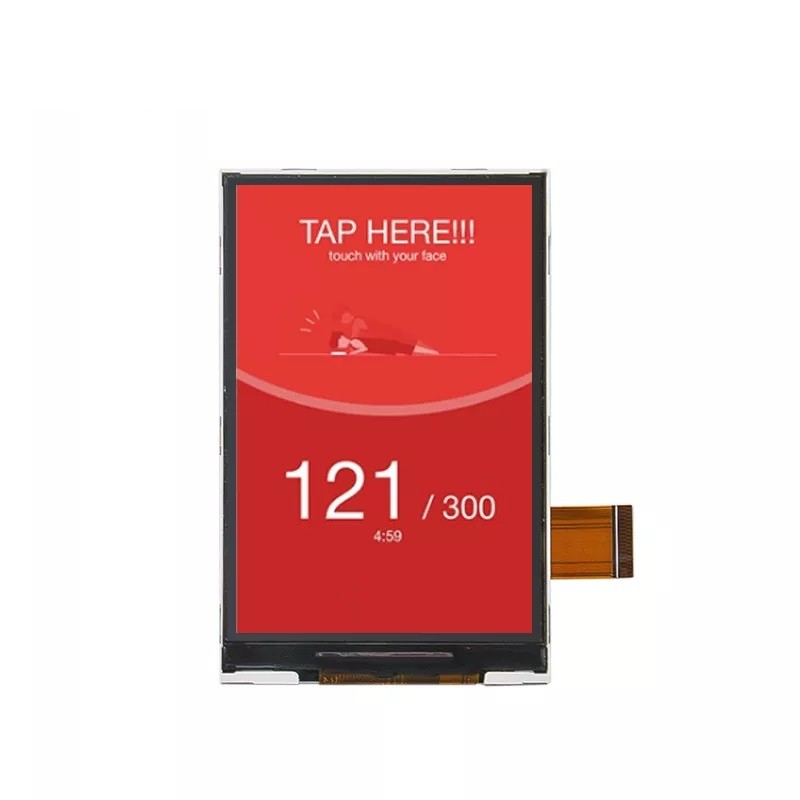

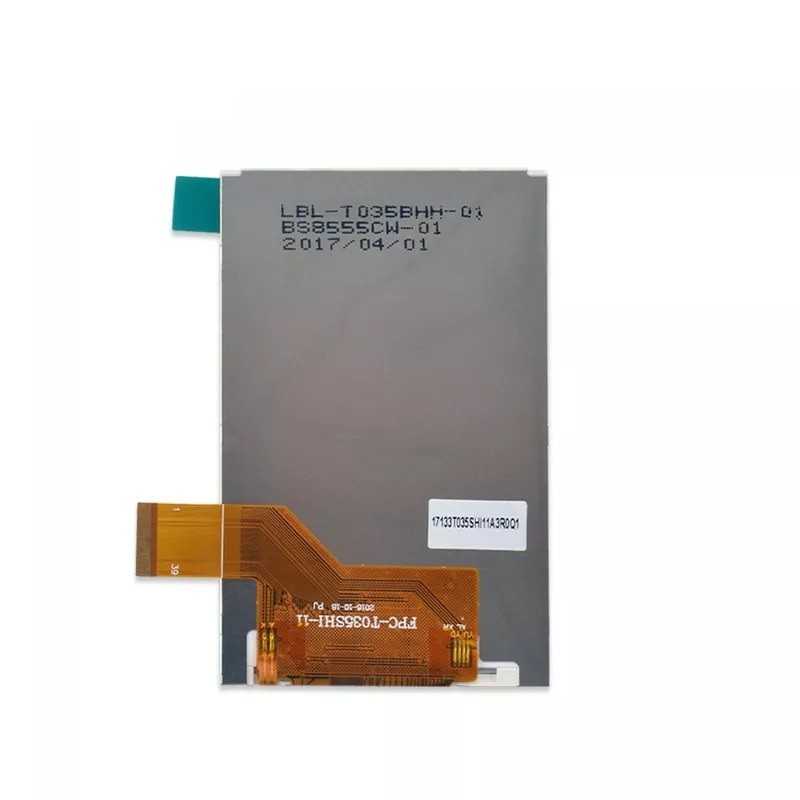

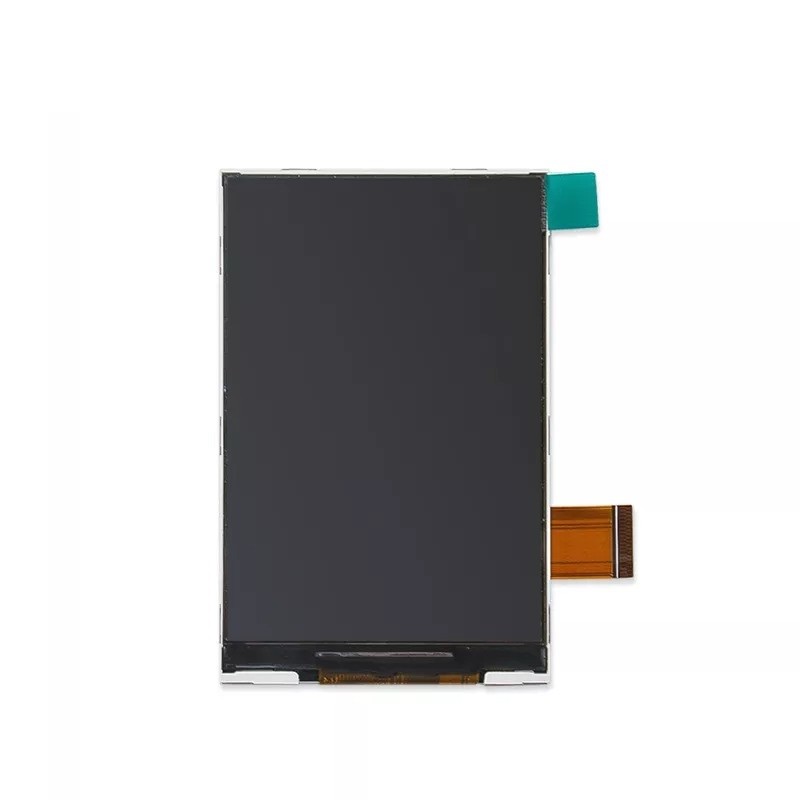

RG035SHI-11 3.5英寸 320x480 TFT LCD ILI9488

  • 产品项目 : RG035SHI-11
  • 类别: 3.5英寸 LCD
  • 分辨率: 320*(RGB)*)480
  • 亮度: 330nits
  • LCM (W * H * D): 54.48×84.71×2.15mm
  • LCM驱动IC: ILI9488
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 3.5 inch
Resolution 320*480 dots
Pixel pitch 0.153(H)*0.153(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 330 cd/m2
LCM (W * H * D) 54.48×84.71×2.15 mm
Active Area (W * H ) 48.96×73.44 mm
With /Without TP Without TP -
LED Numbers 6S-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 18BIT RGB 39PIN -
LCM Power Supply 2.8 V
LED  Power Supply 18.0 V
Color Depth 262K -
LCM Driver IC ILI9488 -
