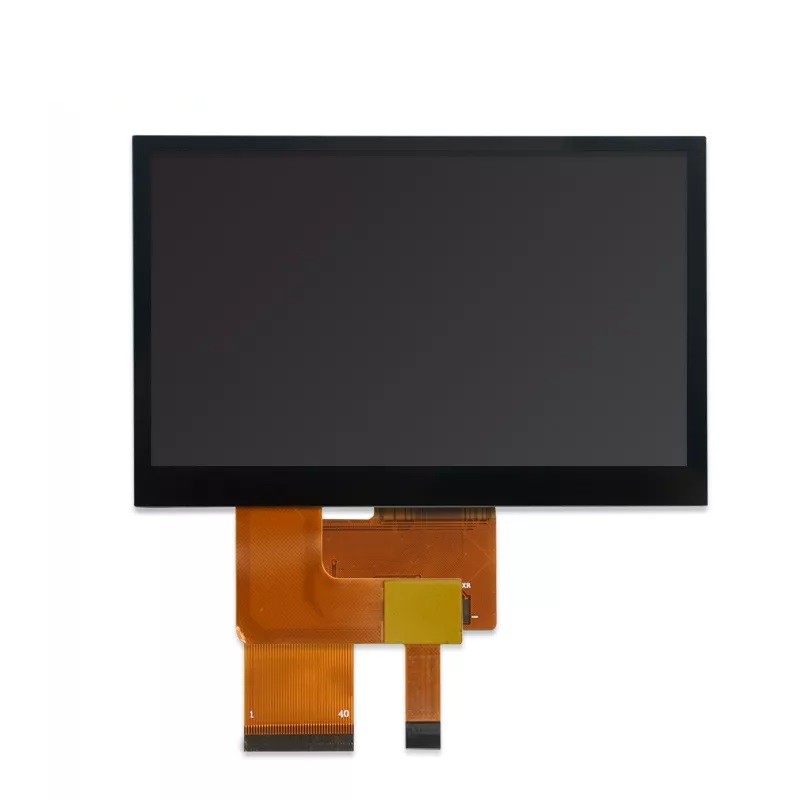

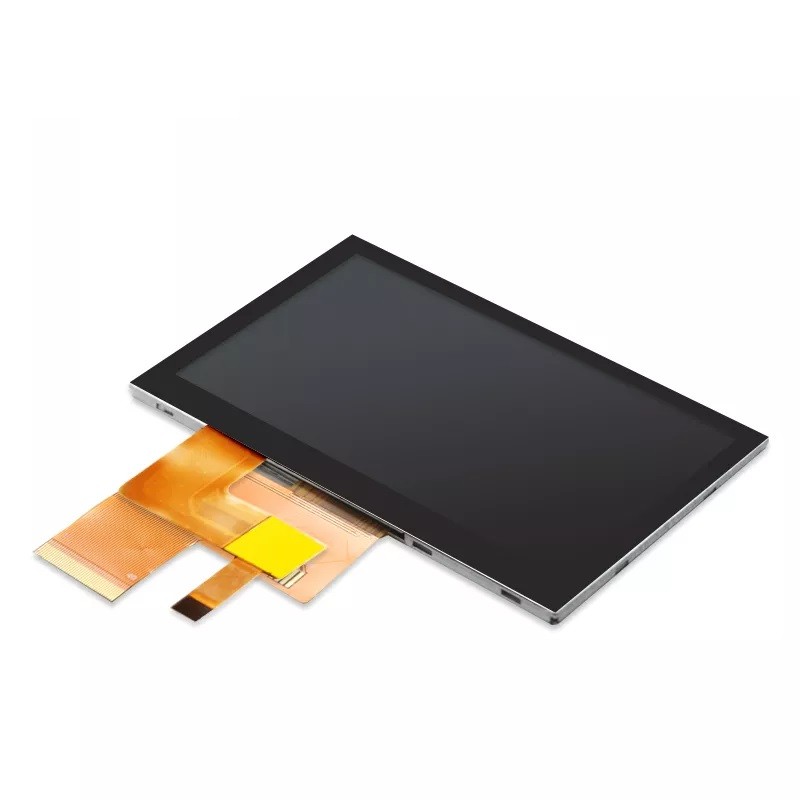

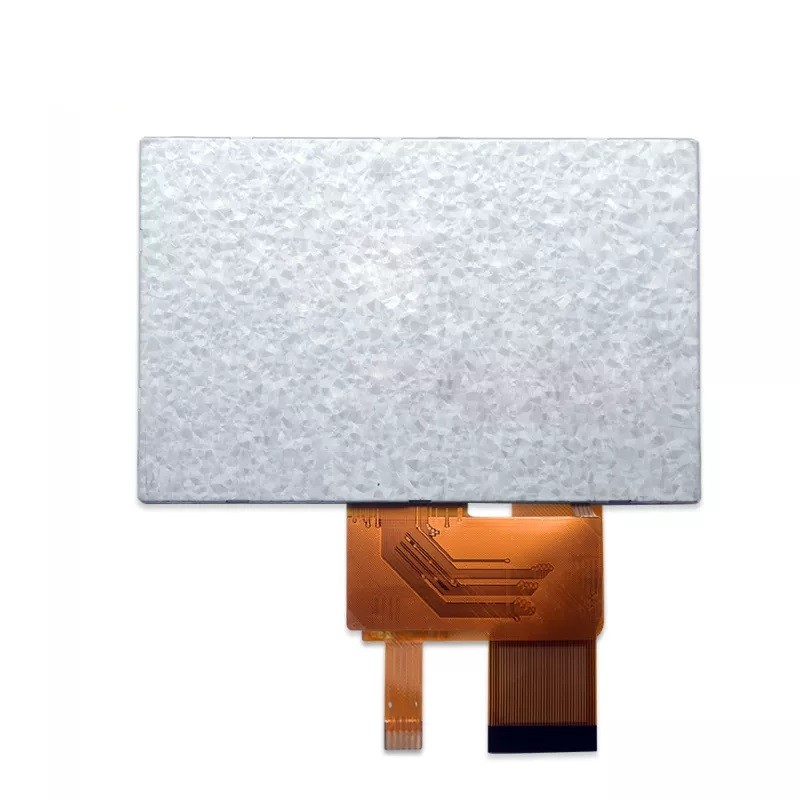

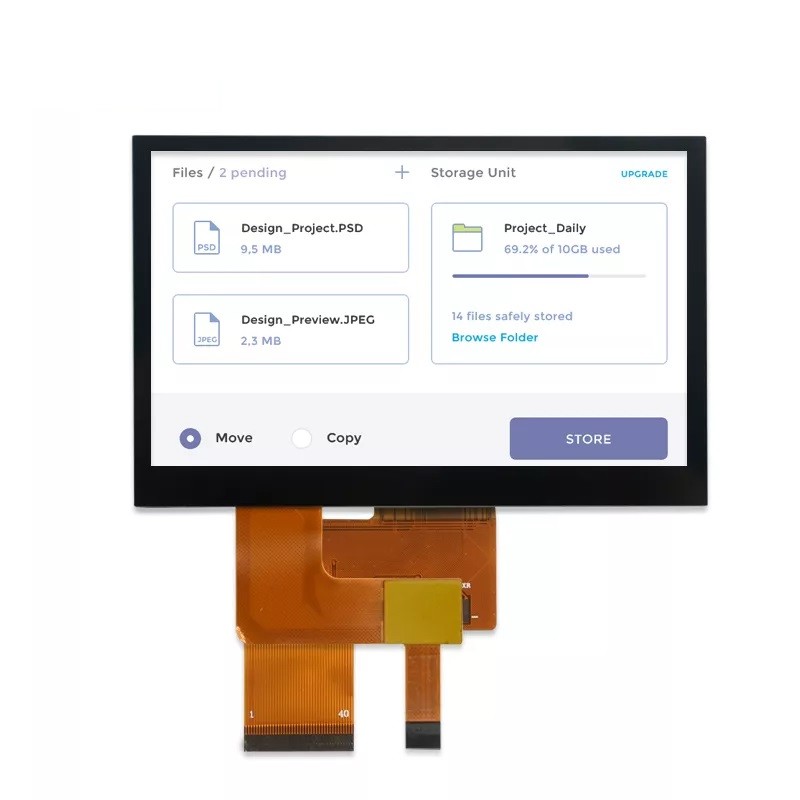

RG043BWSA-06CP 4.3英寸800X480 WVGA TFT LCD带电容触摸屏

  • 产品项目 : RG043BWSA-06CP
  • 类别: 4.3英寸 LCD
  • 分辨率:800*480
  • 亮度: 500nits
  • LCM (W * H * D): 105.50*67.20*4.75 mm
  • 驱动IC:ST7262E43
  • 询价   邮件
产品描述:
Size 4.3 inch
Resolution 800*480
Pixel pitch 0.1188(H)*0.1122(V) mm
Display Mode IPS/NB
Viewing Direction ALL
Gray Scale Inversion Direction ALL
Luminance 500
LCM (W * H * D) 105.50*67.20*4.75 mm
Active Area (W * H ) 95.04*53.86 mm
With /Without TP With CTP
LED Numbers 5S2P-LED pcs
Operation temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Interface RGB888
LCM Power Supply 3.3V
LED  Power Supply 15.0 V
Color Depth 16.7M
LCM Driver IC ST7262E43
