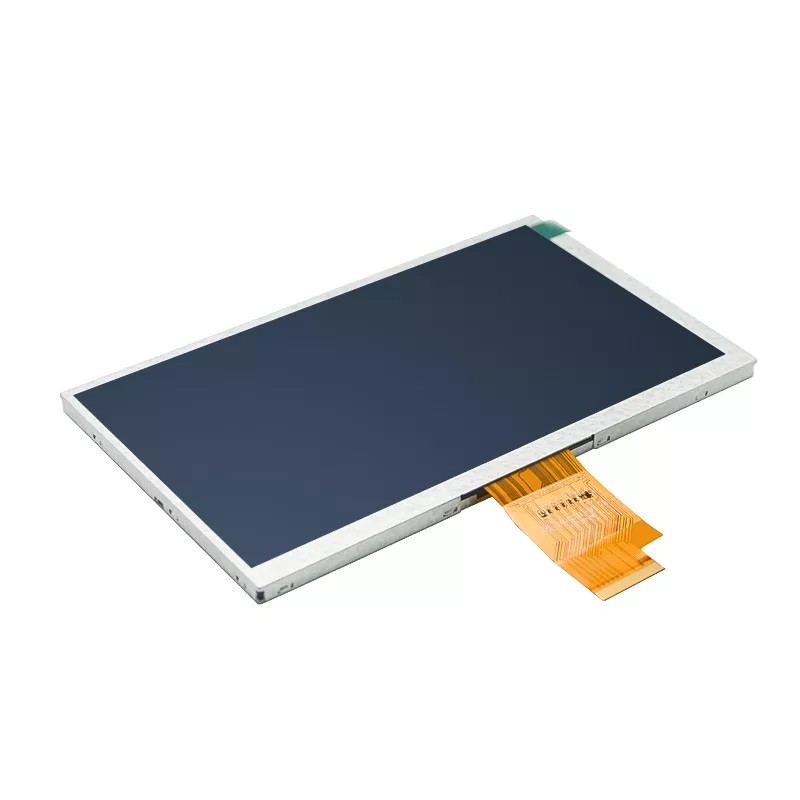

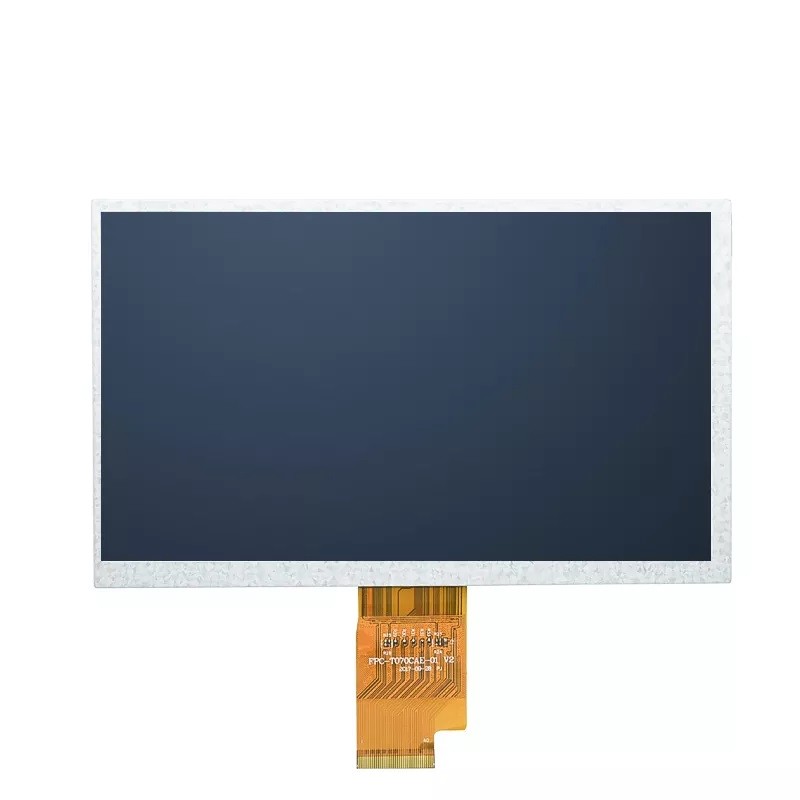

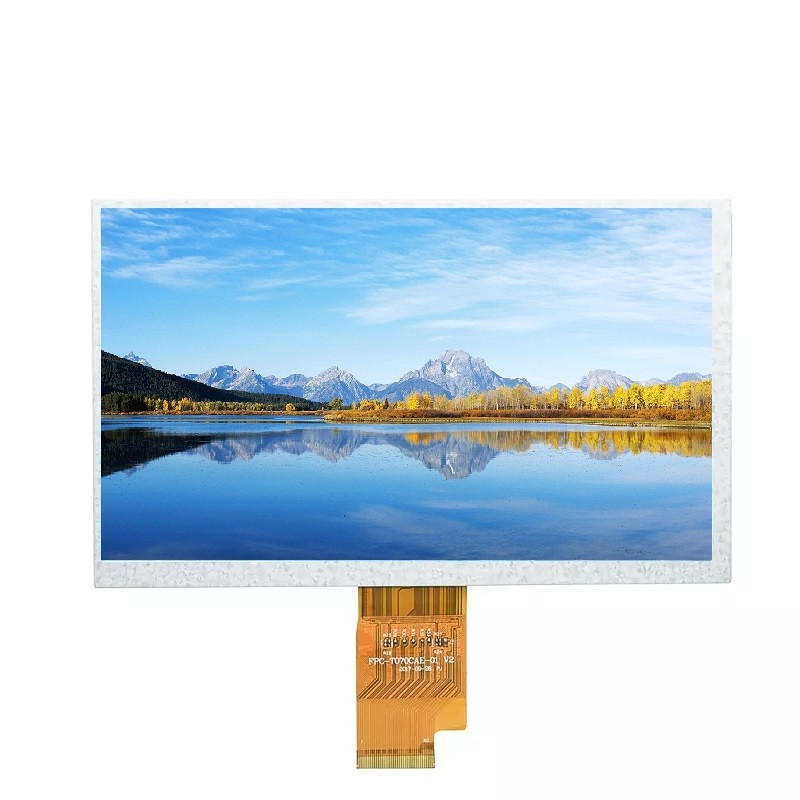

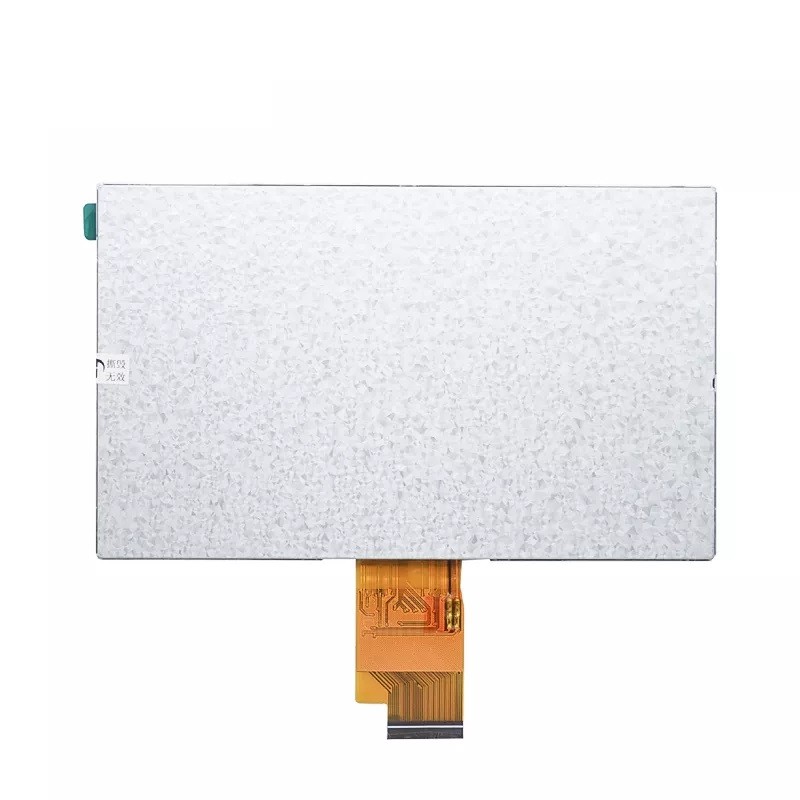

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070BAHA-09 7英寸1024x600高亮TFT LCD模块LVDS接
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 7.0 | inch |
| Resolution | 1024 x 600 | dots |
| Pixel pitch | 0.1509(H)×0.1432(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 500 | cd/m2 |
| LCM (W * H * D) | 164.80*99.80*5.65 | mm |
| Active Area (W * H ) | 154.21*85.92 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S10P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 8BIT LVDS | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8282+HX8696 | - |
