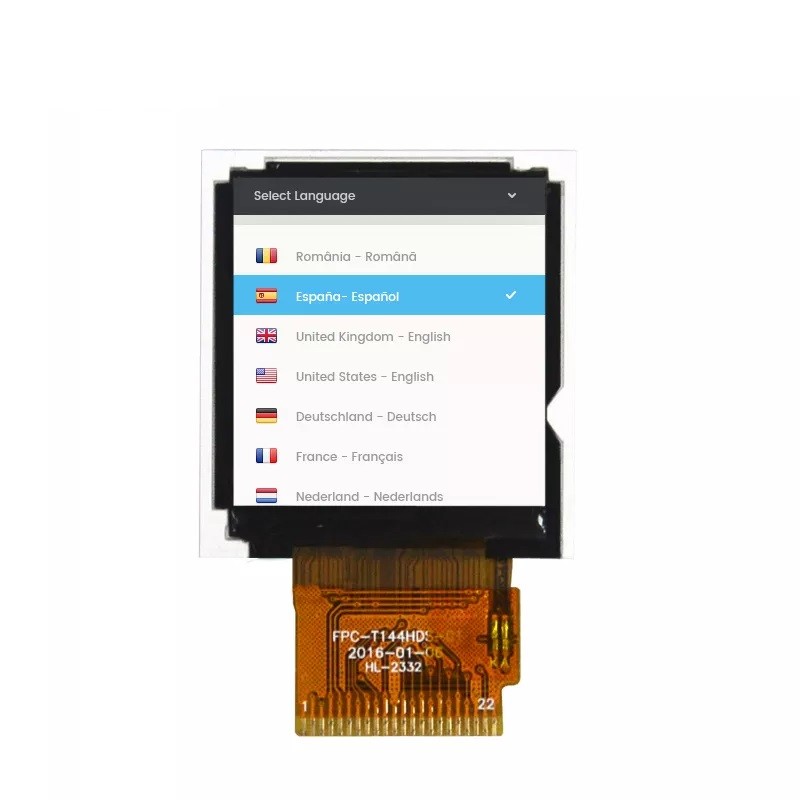

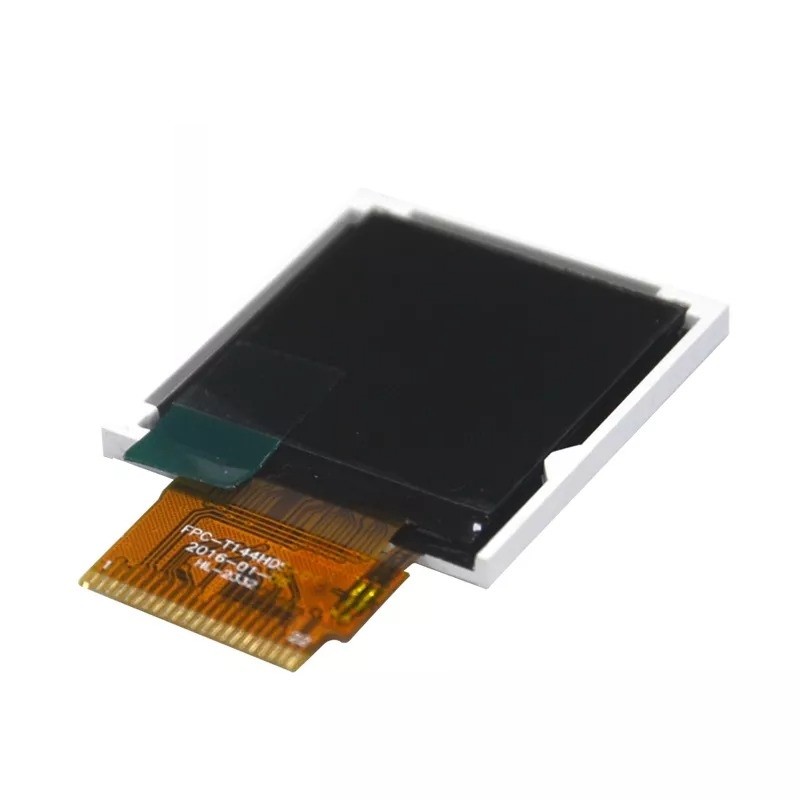

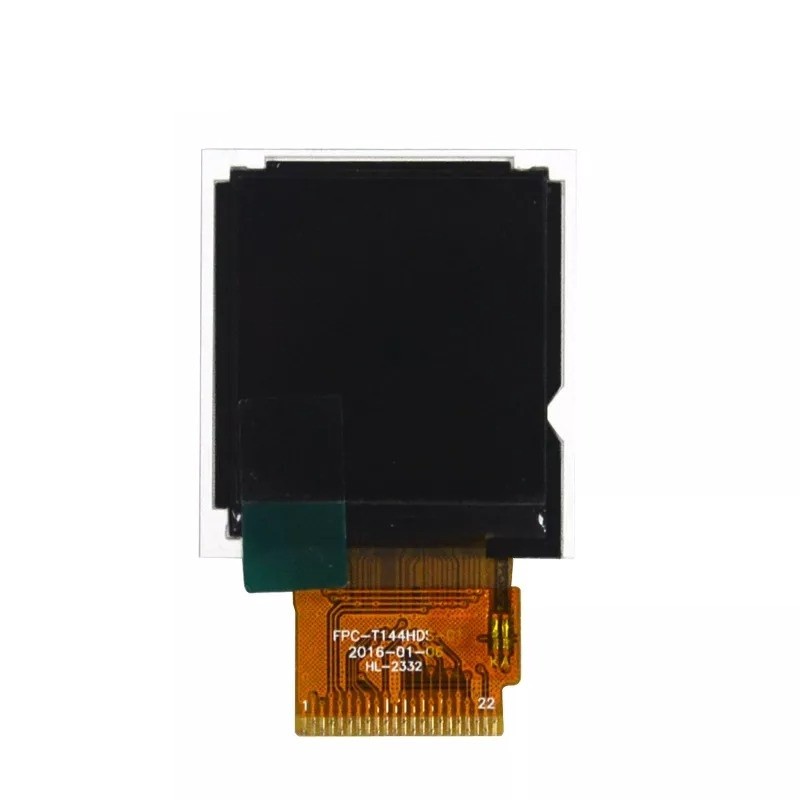

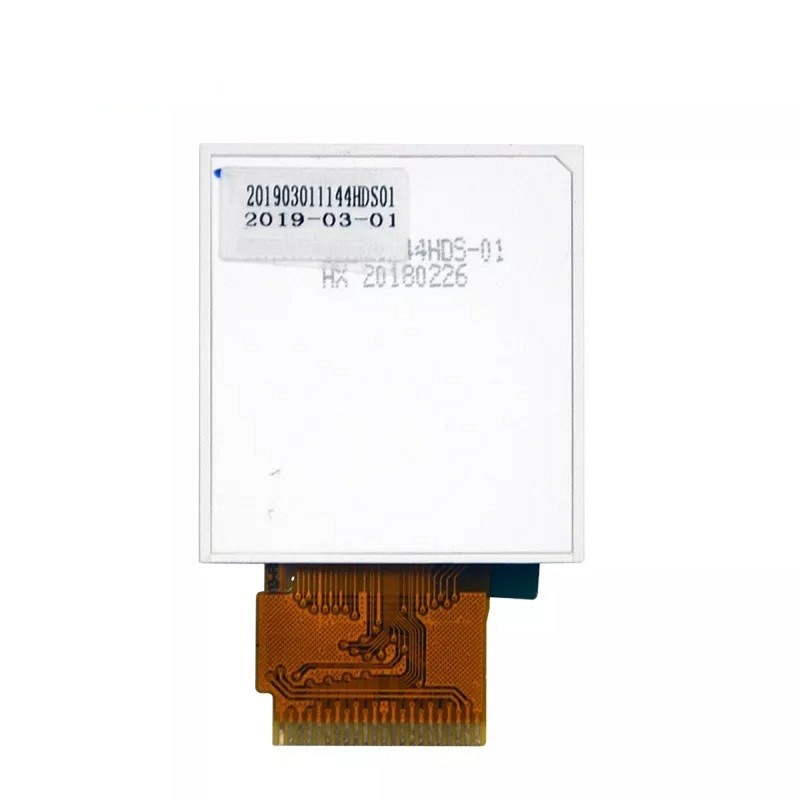

首页 产品展示 0.9英寸-1.8英寸 TFT LCD 1.44英寸 LCD RG144HDS-01 1.44英寸 128*128 TFT LCD 驱动IC
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 1.44 | inch |
| Resolution | 128*128 | dots |
| Pixel pitch | 0.1992(H)*0.2070(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 200 | cd/m2 |
| LCM (W * H * D) | 33.00*36.00*2.70 | mm |
| Active Area (W * H ) | 25.50*26.50 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 1-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 8BIT MCU | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ST7735 | - |
