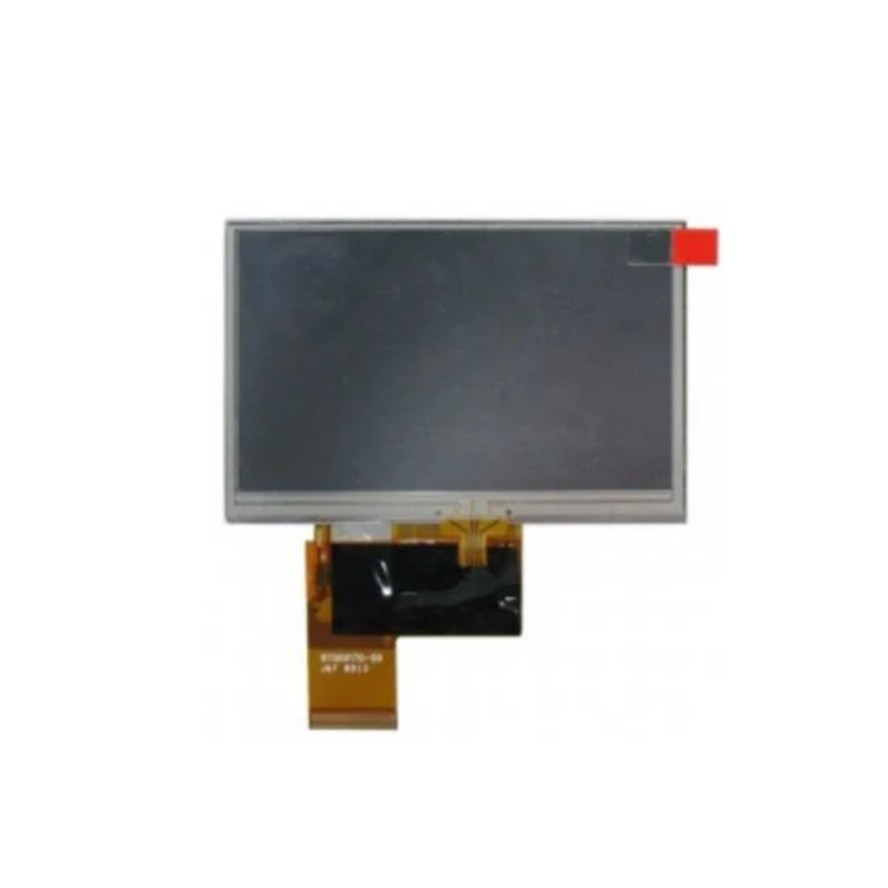

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD Rg-T430mcnh-01p 4.3英寸 LCD 260nit 40pin R
| Items | Contents |
| Size | 4.3 inch |
| Resolution | 480*272 dots |
| Pixel Pitch | 0.198(H)*0.198(V) mm |
| Display Mode | TN |
| Viewing Direction | 12:00 |
| Grayscale Direction | 6:00 |
| Luminance | 260 cd/m2 |
| LCM(W*H*D) | 105.50*67.20*4.12 mm |
| Active Area(W*H) | 95.04*53.86 mm |
| With/Without TP | With RTP |
| LED Numbers | 5S2P-LED |
| Operation Temp. | -20~+70 ºC |
| Storage Temp. | -30~+80 ºC |
| Interface | 24bit RGB/40PIN |
| LCM Power Supply | 3.3 v |
| LED Power Supply | 15.0 v |
| Color Depth | 16.7M |
| LCM Driver IC | HX8257A |
