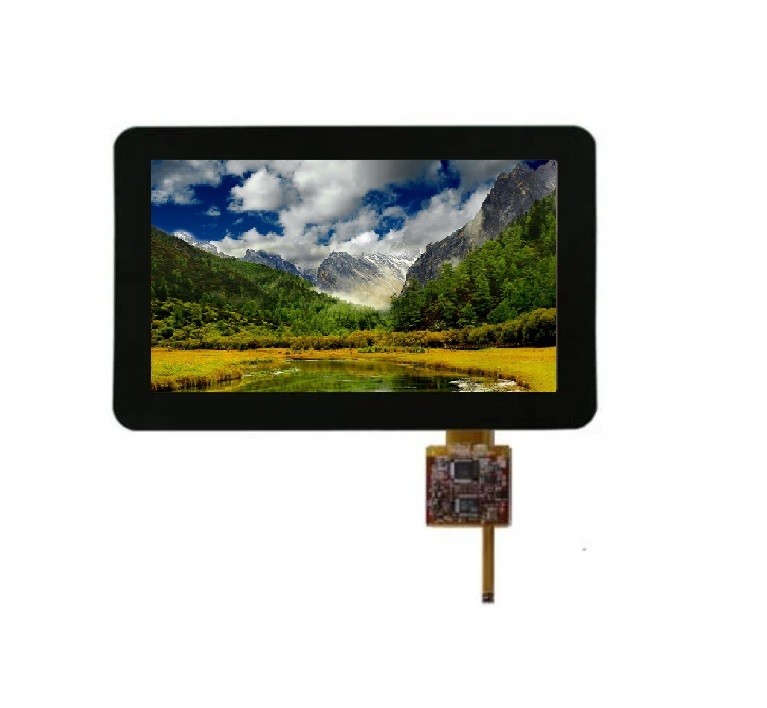

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD Rg070cqt-04c 7英寸TFT LCD 800x480带电容触屏400n
ITEM | STANDARD VALUE |
LCD Type | TFT Transmissive Positive |
Driver element | a-Si TFT Active matrix |
Number of dots | 800*(RGB)*480 DOTS |
Pixel Arrangement | RGB Vertical Stripe |
Active Area | 152.4*91.44 mm |
Module Size(W*H*T) | 188*124*12.4mm |
Viewing Direction | 12 o'clock |
Driver IC | HX8262+HX8678 |
Touch Panel Type | Capacitive |
Back Light | 30- White LED |
System interface | MCU Interface |
