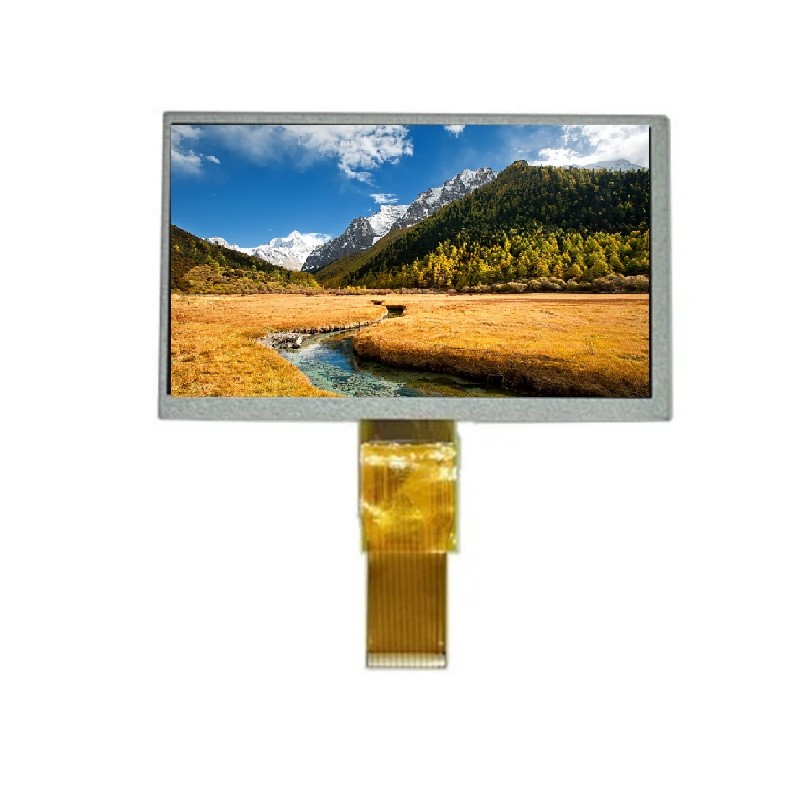

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG-T700MIWN-46 7英寸TFT LCD 800x480 1000ni
| Item | Specification |
| LCD size | 7.0 inch(Diagonal) |
| Driver element | a-Si TFT active matrix |
| Resolution | 800 × 3(RGB) × 480 |
| Display mode | Normally White, Transmissive |
| Dot pitch | 0.1905(W) × 0.1905(H) mm |
| Active area | 154.08(W) × 85.92(H) mm |
| Module size | 164.55(W) ×99.95(H) ×3.5(D) mm |
| Surface treatment | Anti-Glare |
| Color arrangement | RGB-stripe |
| Interface | 24 Bit RGB (TTL) |
| Backlight power consumption | 1.92W |
| Optimum viewing direction | 12 O'CLOCK |
| Weight | TBD |
