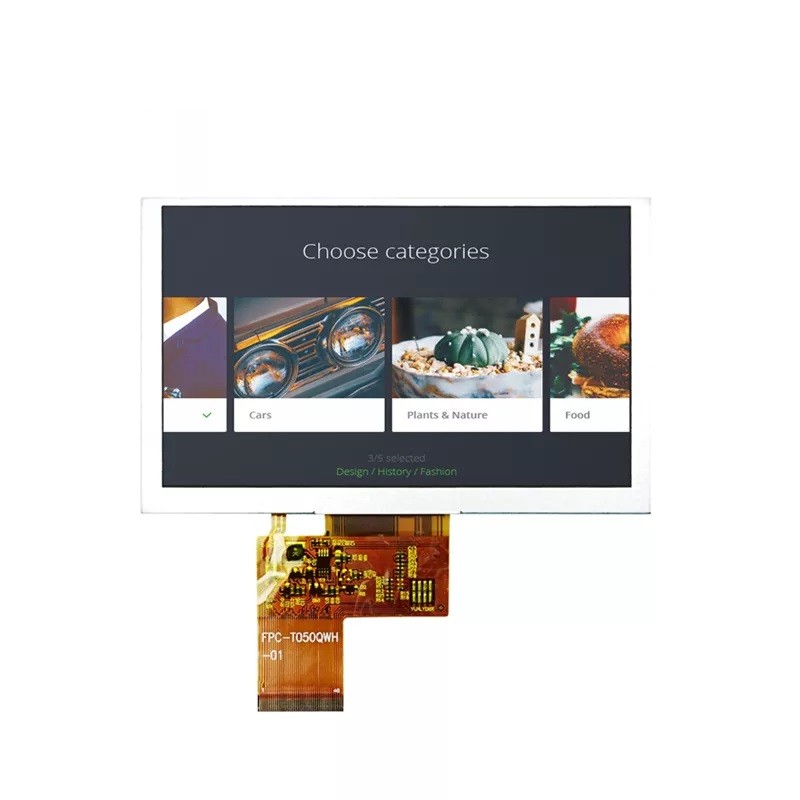

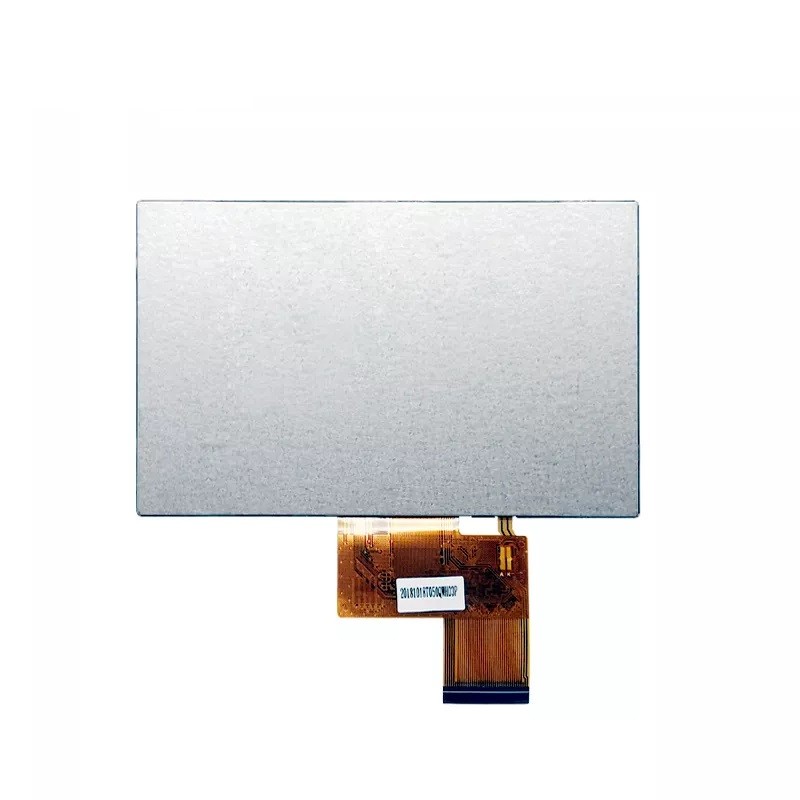

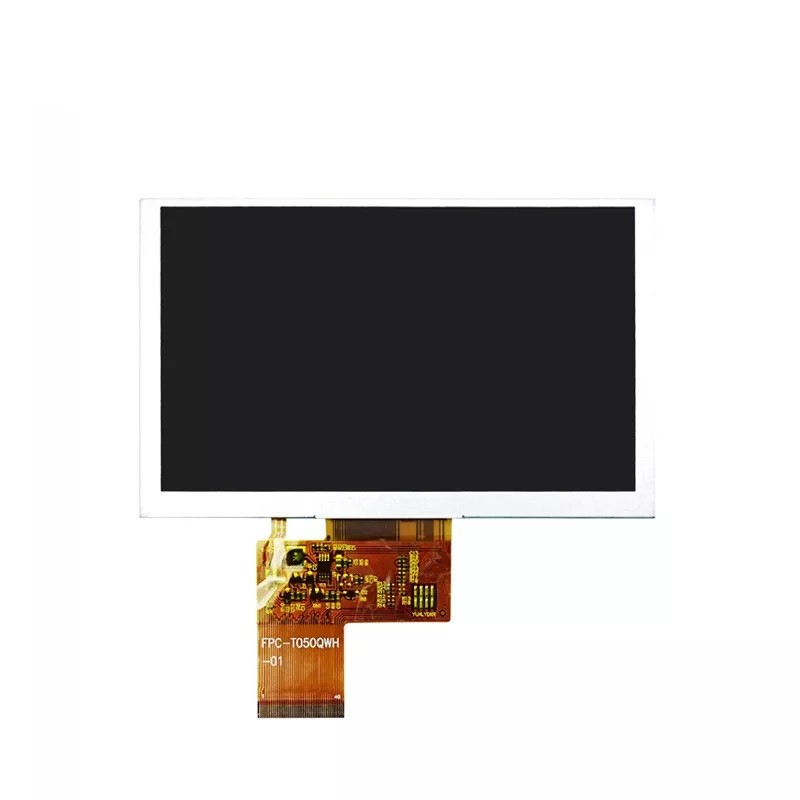

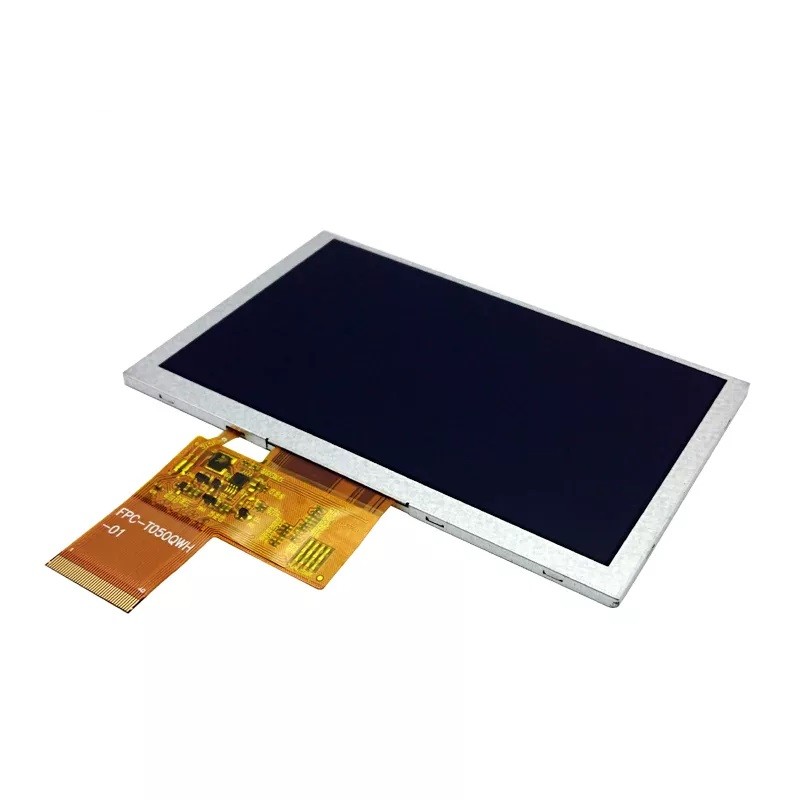

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5英寸 LCD RG050QWH-05 5英寸800x480阳光下可视LCD模块
Feature | Specification | Unit |
---|---|---|
Brand | Ronen | - |
Size | 5.0 | inch |
Resolution | 800*480 | dots |
Pixel pitch | 0.135(H)x0.135(V) | mm |
Display Mode | TN/NW | - |
Viewing Direction | 12 | o'clock |
Gray Scale Inversion Direction | 6 | o'clock |
Luminance | 1000 | cd/m2 |
LCM (W * H * D) | 120.70*75.80*3.10 | mm |
Active Area (W * H ) | 108.00*64.80 | mm |
With /Without TP | Without TP | - |
LED Numbers | 10S2P-LED | pcs |
Operation temperature | -20~+70 | ℃ |
Storage temperature | -30~+80 | ℃ |
Interface | RGB888/40PIN | - |
LCM Power Supply | 3.3 | V |
LED Power Supply | 30.0 | V |
Color Depth | 16.7M | - |
LCM Driver IC | ILI6122+ILI5960 | - |
