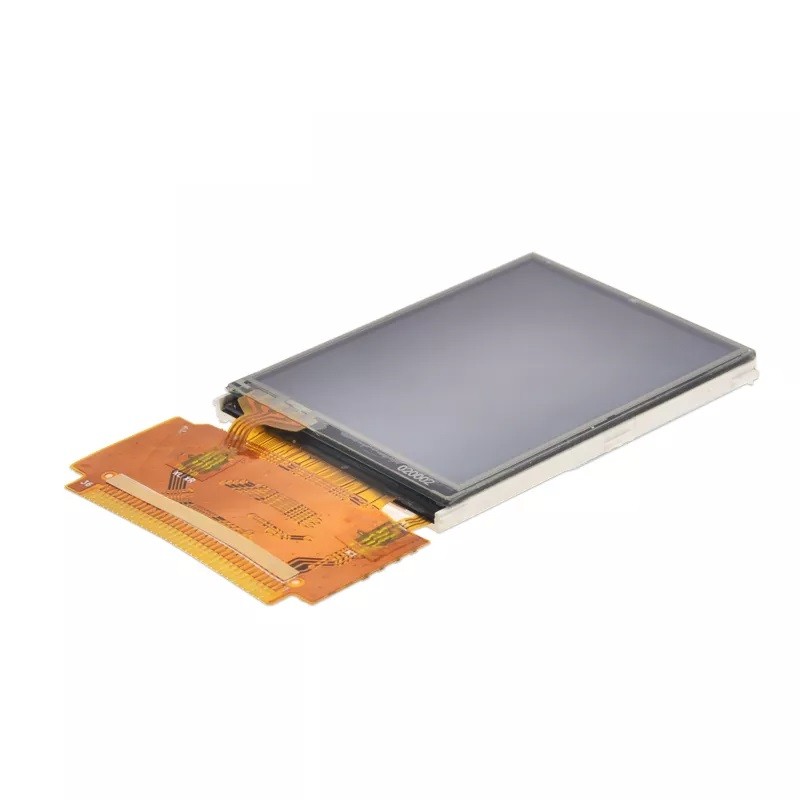

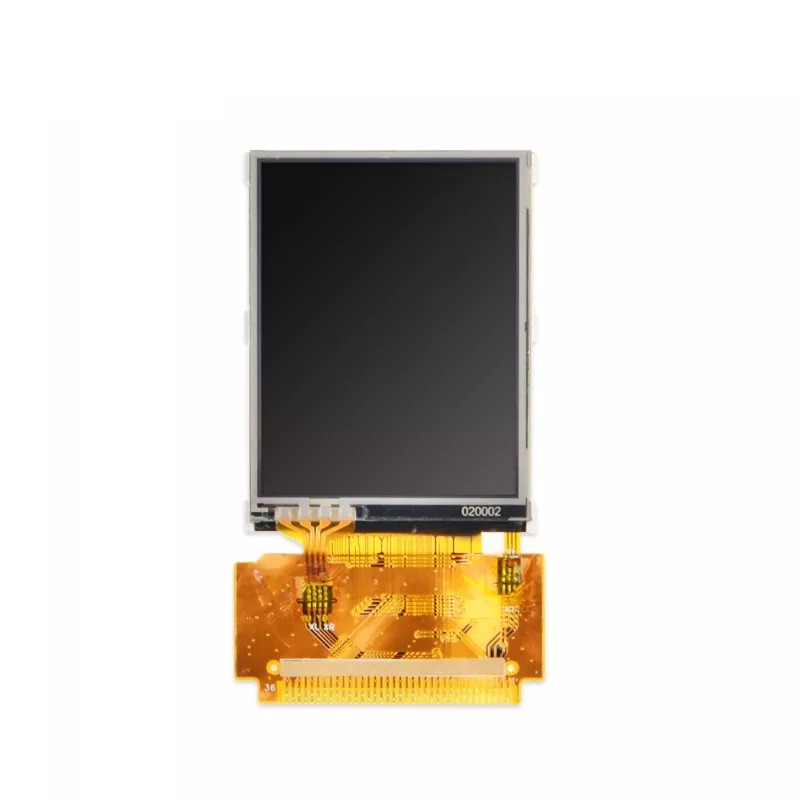

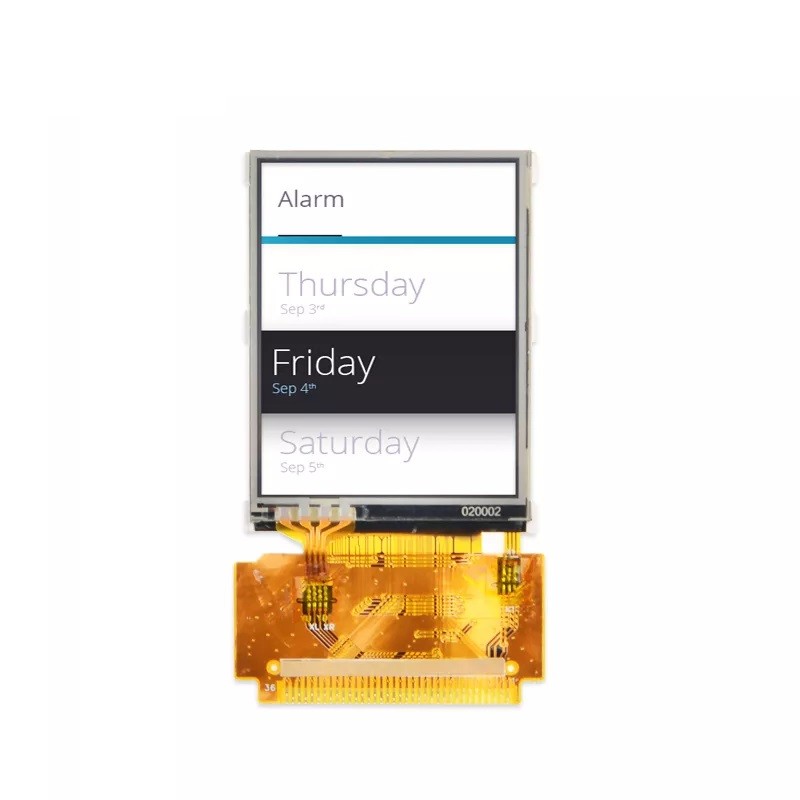

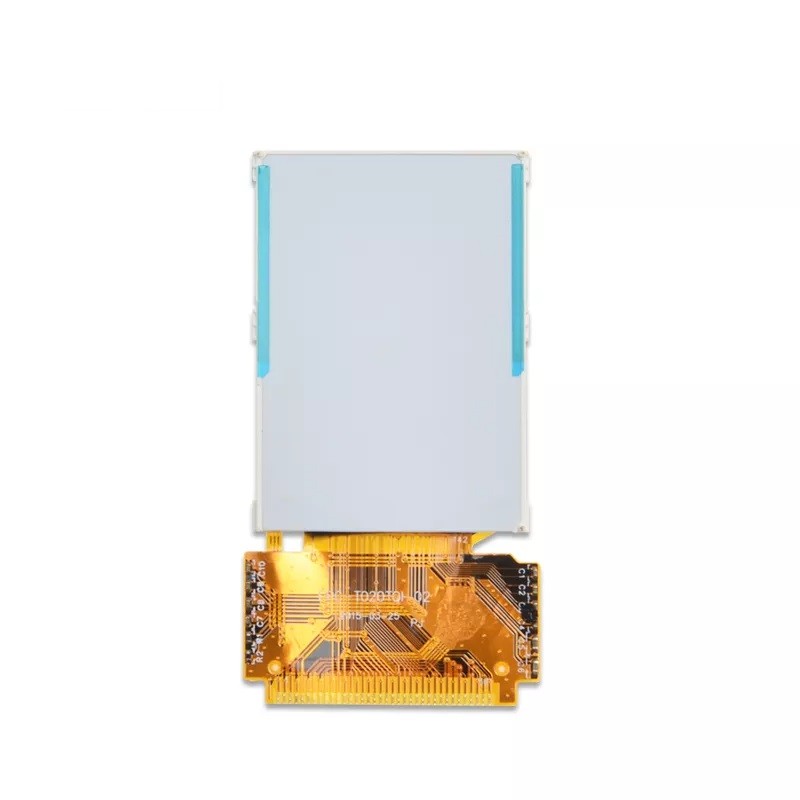

首页 产品展示 2英寸-2.8英寸 TFT LCD 2英寸 LCD RG020TQI-02P 2英寸 TFT LCD ILI9335
| Brand | Ronen |
|---|---|
| Size | 2 inch |
| Resolution | 240*320 dots |
| Pixel pitch | 0.126(H)*0.126(V)mm |
| Display Mode | TN/NW |
| Viewing Direction | 9 o'clock |
| Gray Scale Inversion Direction | 3 o'clock |
| Luminance | 130 cd/m2 |
| LCM (W * H * D) | 36.80*48.20*3.75 mm |
| Active Area (W * H ) | 30.24*40.32 mm |
| With /Without TP | Yes |
| LED Numbers | 2P-LED pcs |
| Operation temperature | -20~+70℃ |
| Storage temperature | -30~+80℃ |
| Interface | MCU-8/16bit/36PIN- |
| LCM Power Supply | 2.8 V |
| LED Power Supply | 3 V |
| Color Depth | 262K |
| LCM Driver IC | ILI9335 |
