  • RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC
  • RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC
  • RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC
  • RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC
RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S ICRG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S ICRG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S ICRG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC

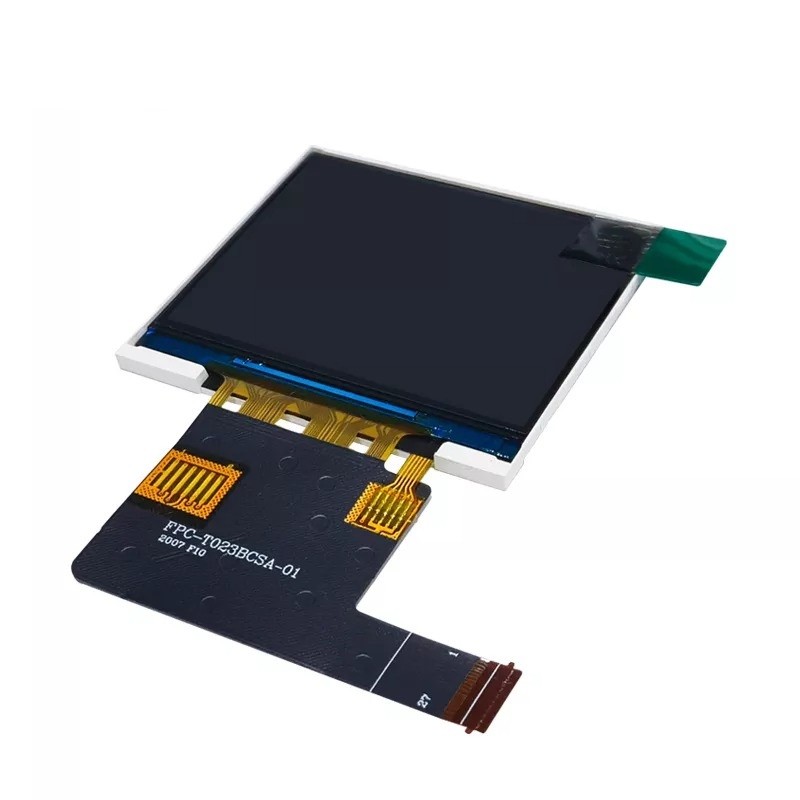

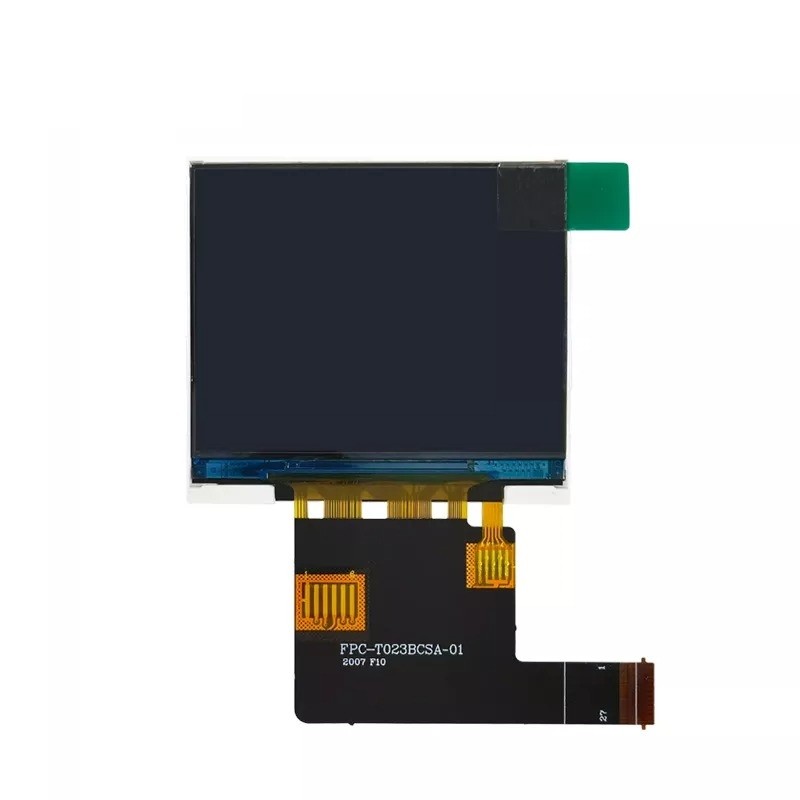

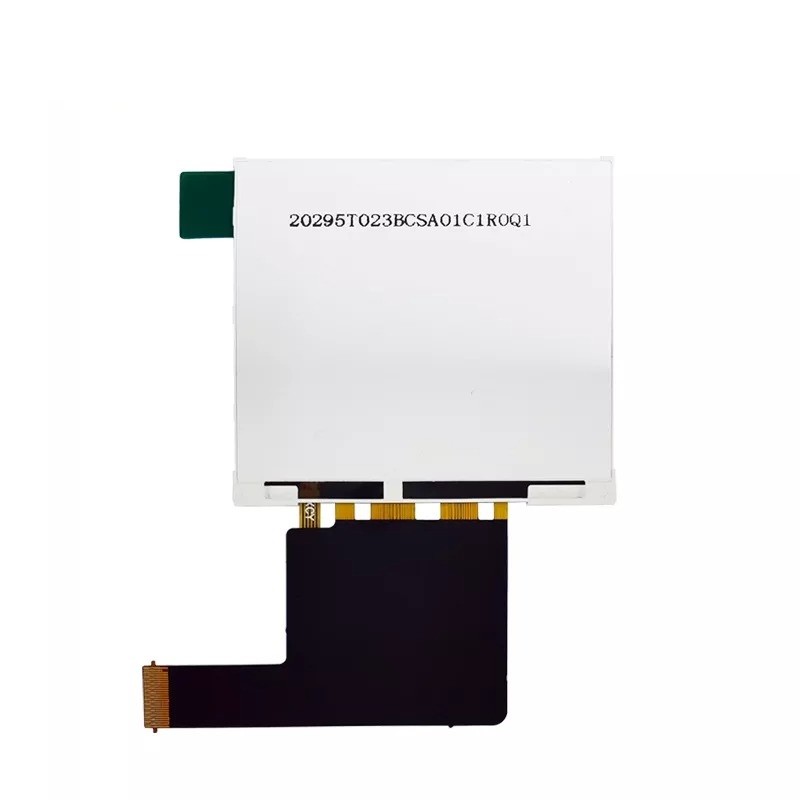

RG023BCSA-01 2.3英寸 480x360 IPS LCD ST7701S IC

  • 产品项目 : RG023BCSA-01
  • 类别: 2.3英寸 LCD
  • 分辨率: 480*(RGB)*)360
  • 亮度: 500nits
  • LCM (W * H * D): 50.90*45.80*2.45mm
  • LCM驱动IC: ST7701S
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 2.3 inch
Resolution 480*360 dots
Pixel pitch 0.0975(H)*0.0975(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 500 cd/m2
LCM (W * H * D) 50.90*45.80*2.45 mm
Active Area (W * H ) 46.8*35.1 mm
With /Without TP Without TP -
LED Numbers 4P-LED pcs
Operation temperature -30~+80
Storage temperature -30~+80
Interface MIPI -
LCM Power Supply 2.8 V
LED  Power Supply 3.0 V
Color Depth 262K -
LCM Driver IC ST7701S -
