  • RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC
  • RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC
  • RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC
  • RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC
RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 ICRG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 ICRG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 ICRG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC

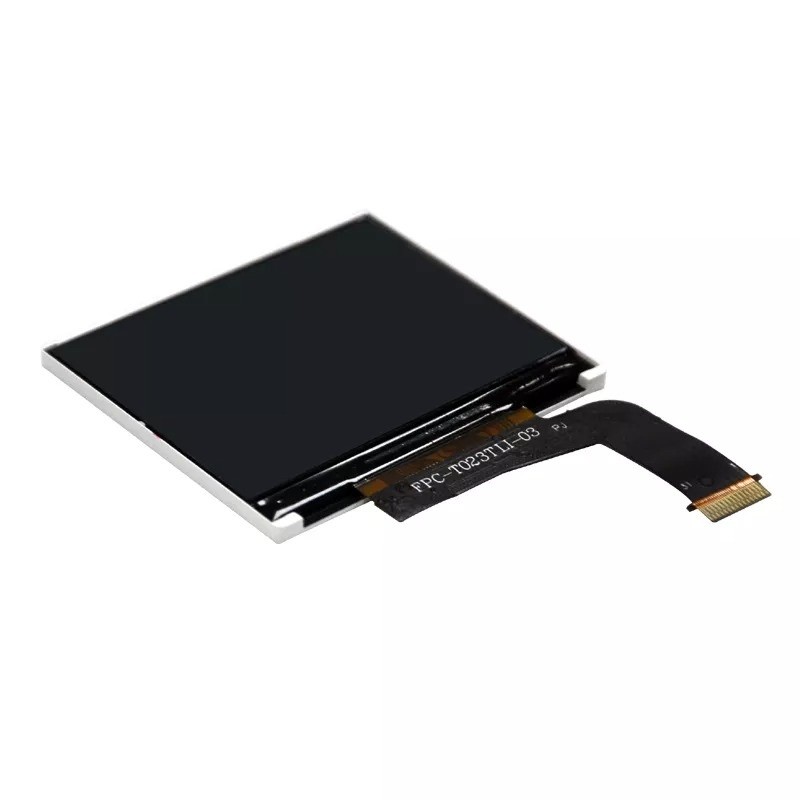

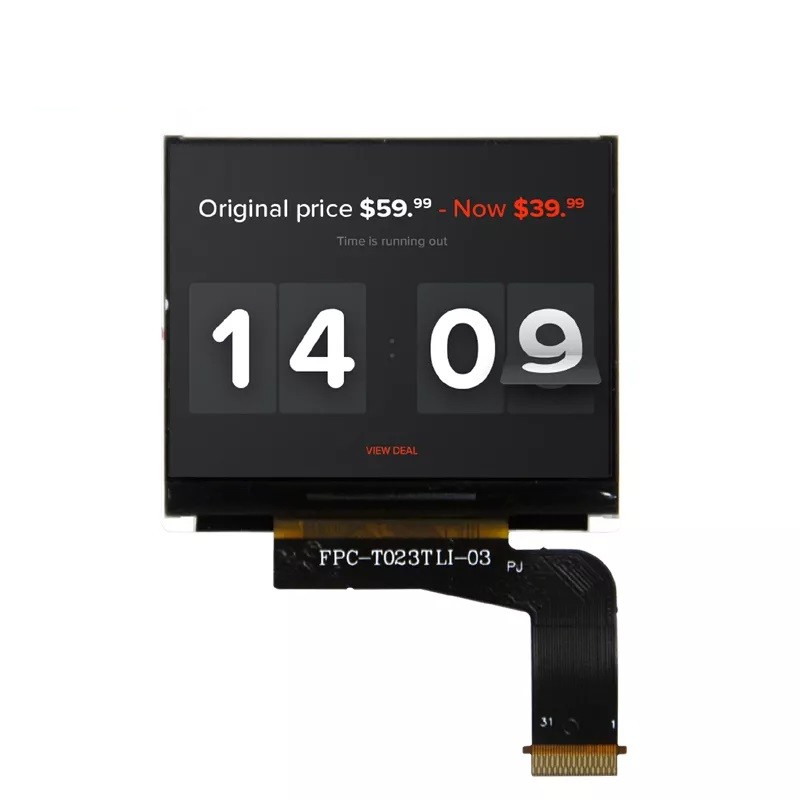

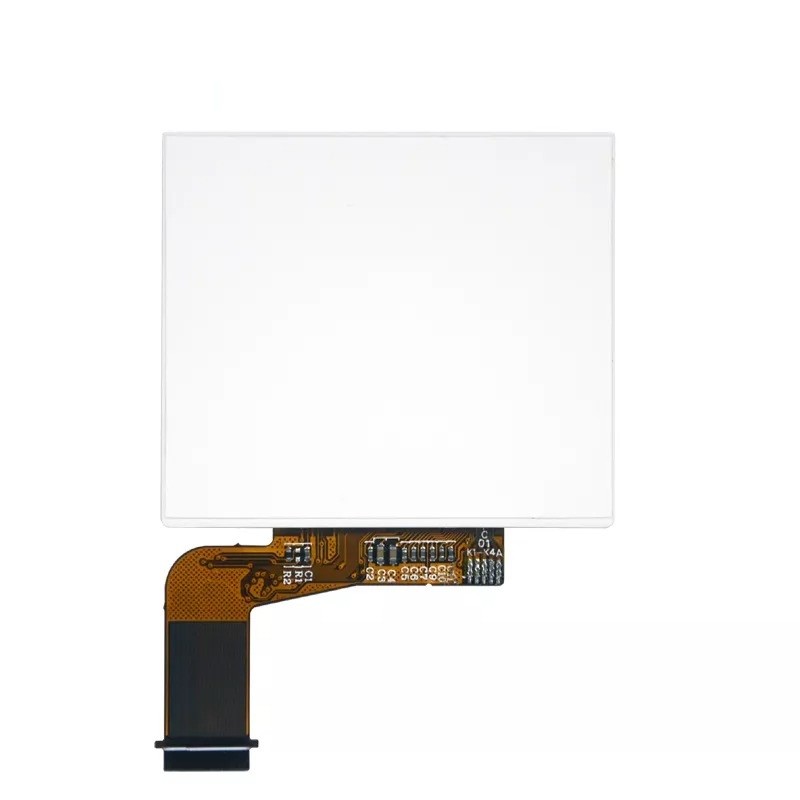

RG023TLI-03 2.3英寸 320x240 TFT LCD ILI9342 IC

  • 产品项目 : RG023TLI-03
  • 类别: 2.3英寸 LCD
  • 分辨率: 320*(RGB)*240
  • 亮度: 290nits
  • LCM (W * H * D): 50.60*44.30*2.30mm
  • LCM驱动IC: ILI9342
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 2.3 inch
Resolution 320*240 dots
Pixel pitch 0.146(H)*0.146(V) mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 290 cd/m2
LCM (W * H * D) 50.60*44.30*2.30 mm
Active Area (W * H ) 46.75*35.06 mm
With /Without TP Without TP -
LED Numbers 4P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 8BIT MCU -
LCM Power Supply 2.8 V
LED  Power Supply 3.0 V
Color Depth 262K -
LCM Driver IC ILI9342 -
