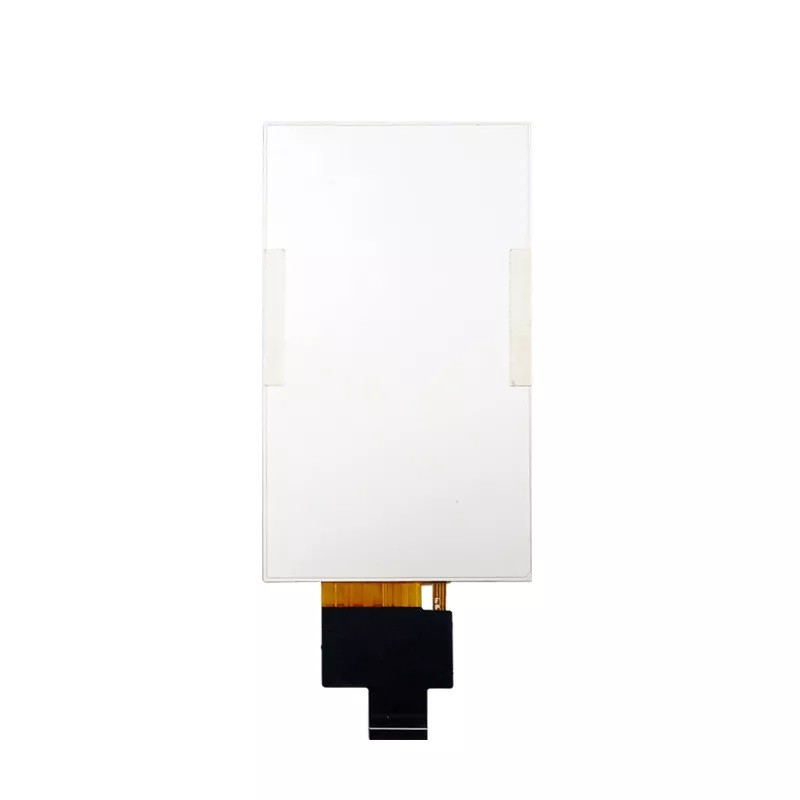

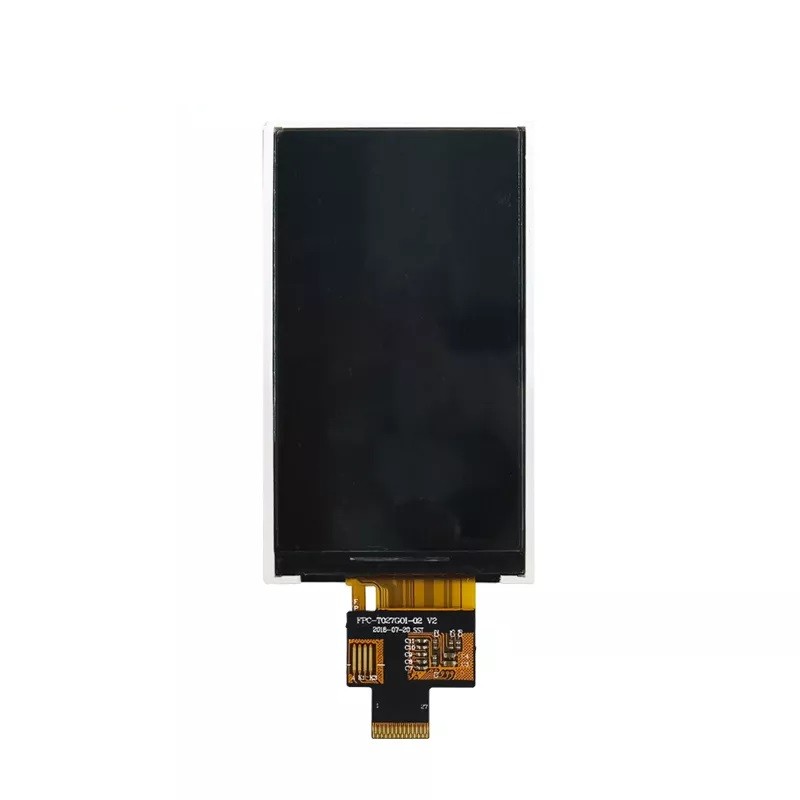

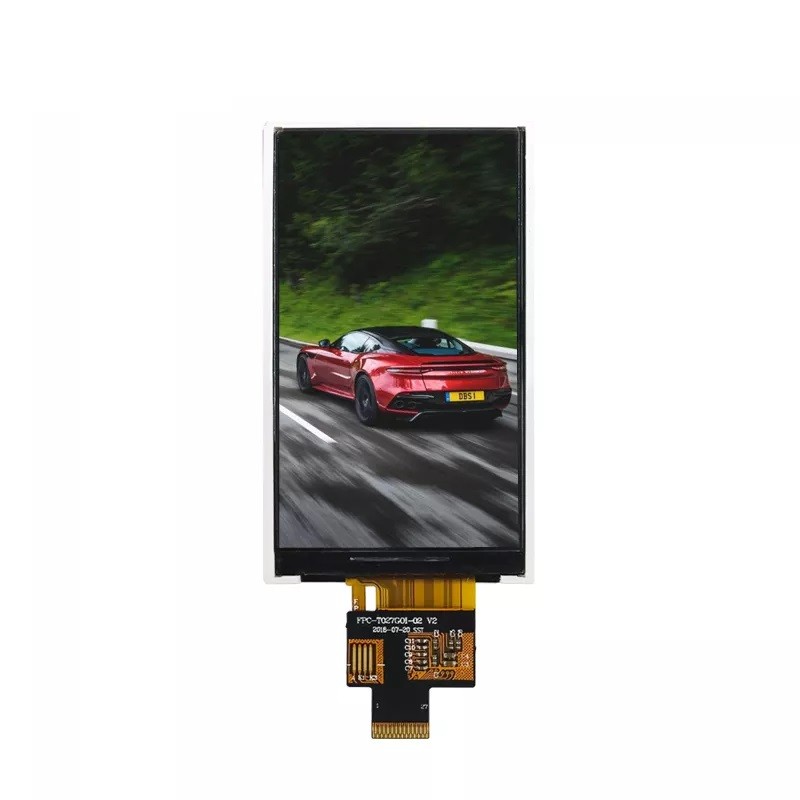

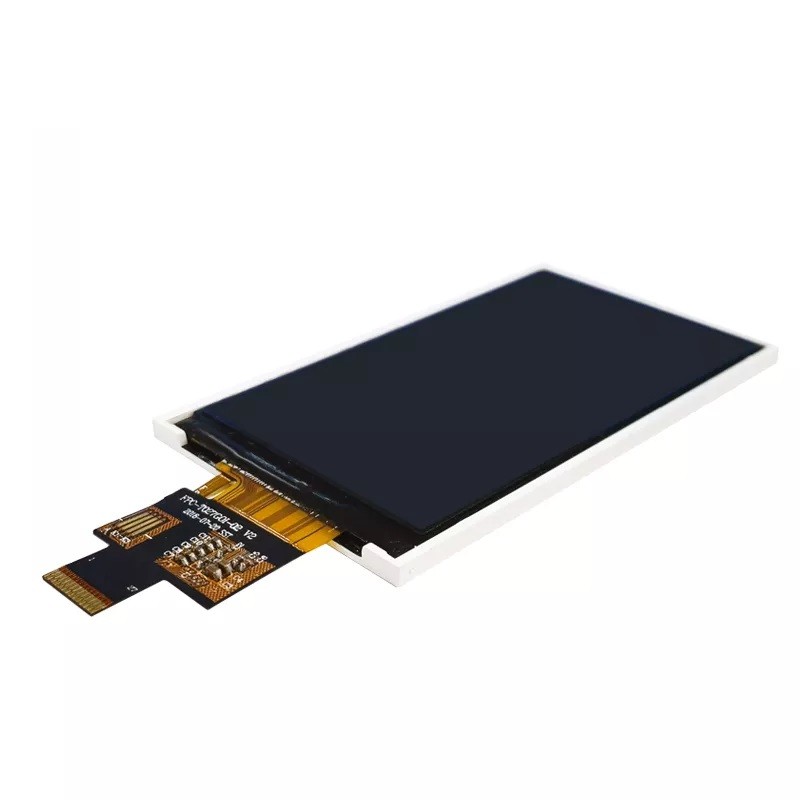

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.7英寸 LCD RG027GOI-02 2.7英寸 960x240 TFT LCD ILI896
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 2.7 | inch | |
| Resolution | 960*240 | dots | |
| Pixel pitch | 0.061(H)*0.137(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 9 | o'clock | |
| Gray Scale Inversion Direction | - | o'clock | |
| Luminance | 350 | cd/m2 | |
|
Mechanical Characteristics |
LCM (W * H * D) | 67.50*39.10*2.43 | mm |
| Active Area (W * H ) | 58.56*32.88 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 3P-LED | pcs | |
| Operation temperature | -30~+80 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | MIPI | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 3.0 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | ILI8961 | - | |
