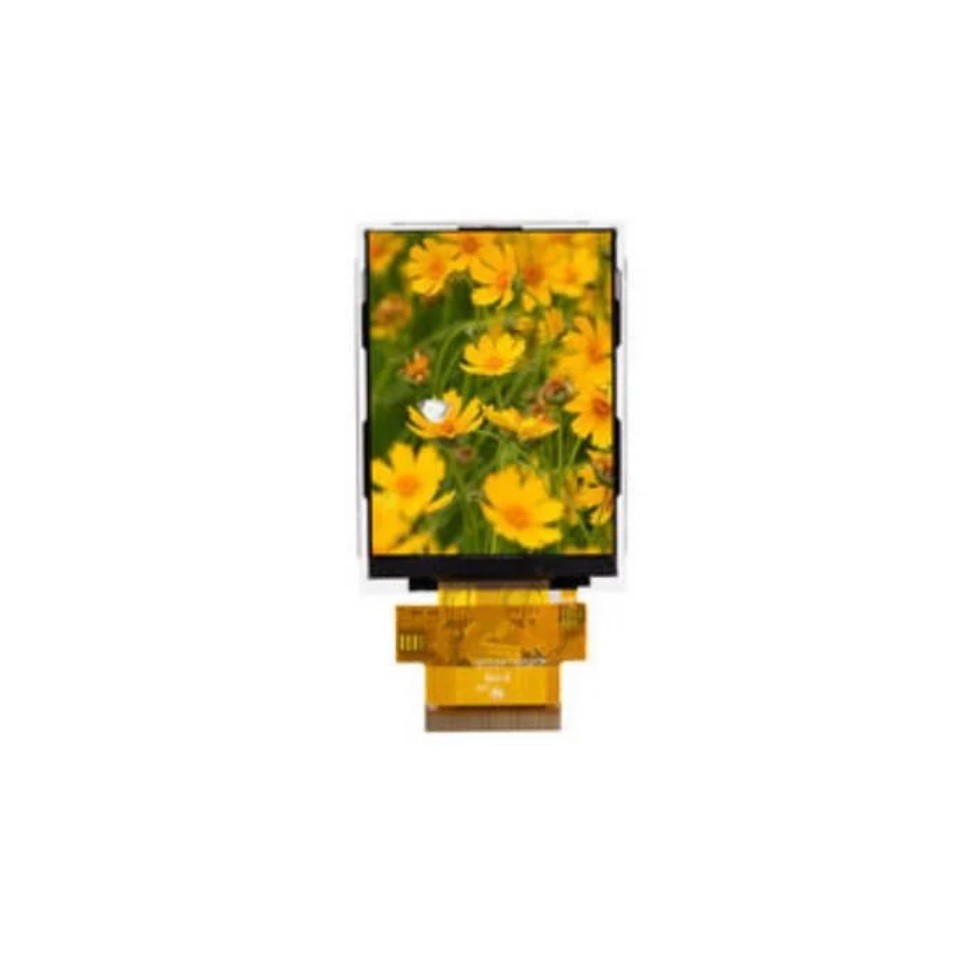

  • RG028GHT-07 2.8英寸 TFT LCD 240x320 500nit 40pin RGB+SPI接口

RG028GHT-07 2.8英寸 TFT LCD 240x320 500nit 40pin RGB+SPI接口

产品描述:
Item Contents
LCD Type TFT -
Display color 262K
Viewing Direction 6 O'Clock
Gray scale inversion direction 12 O'Clock
Operating temperature -20~+70 ºC
Storage temperature -30~+80 ºC
Module size Refer to outline drawing mm
Active Area(W×H) 43.20X57.60 mm
Number of Dots 240×320 dots
Controller HX8347I -
Power Supply Voltage 2.8 V
Outline Dimensions Refer to outline drawing
Backlight 1X4-LEDs (white) pcs
Interface RGB-18BitI -
