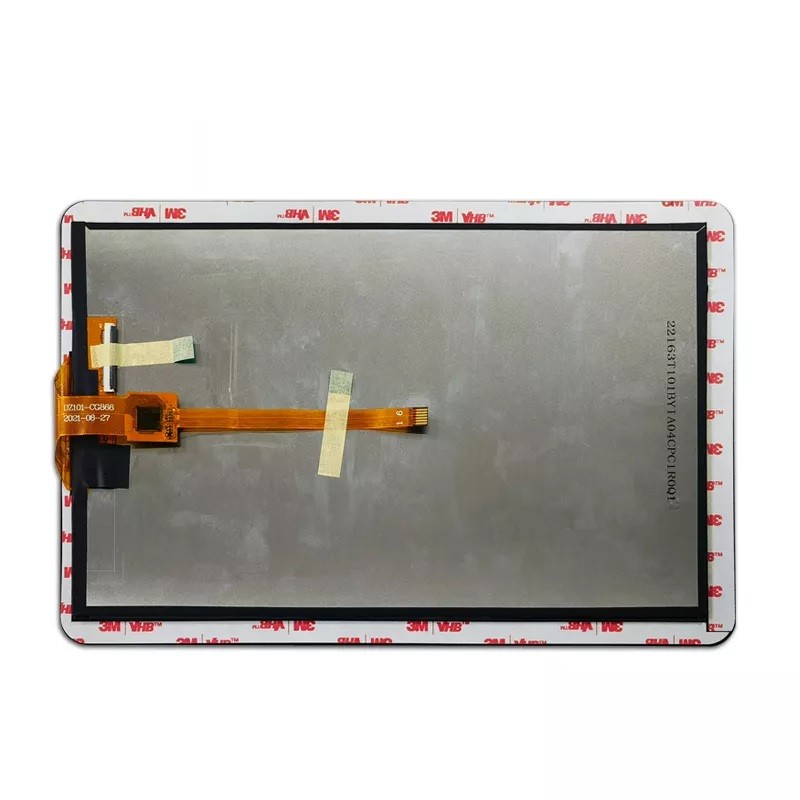

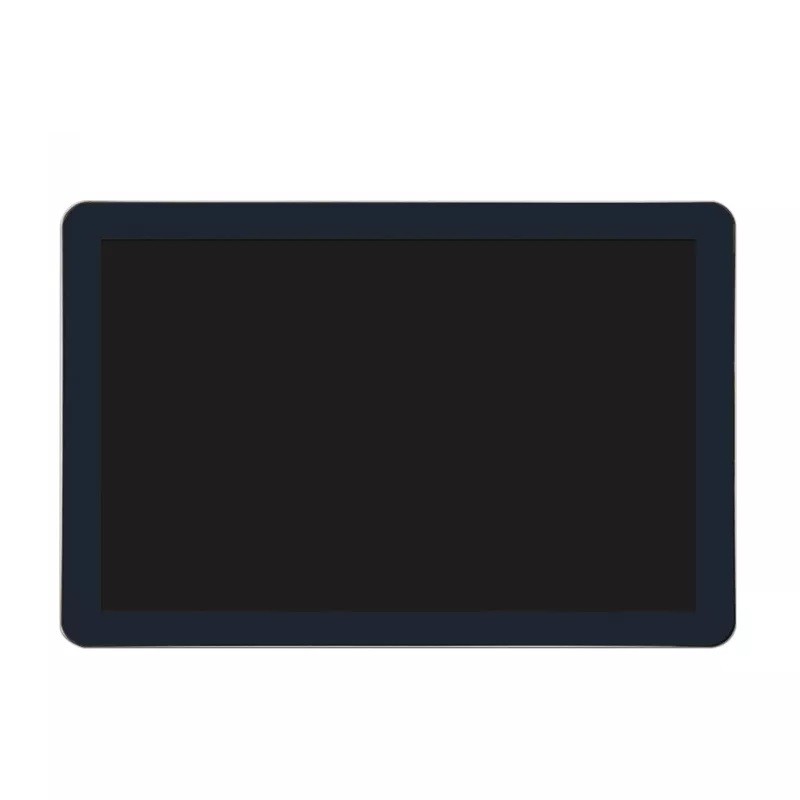

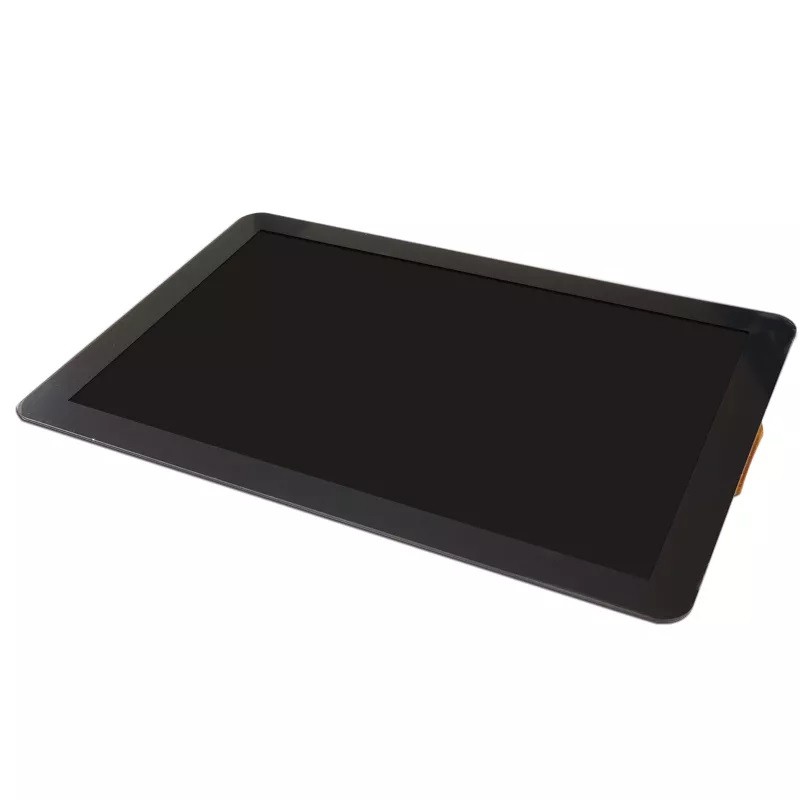

首页 产品展示 7英寸-10.4英寸 TFT LCD 10.1英寸 LCD RG101BYIA-04CP 10.1英寸 800x1280带电容触摸屏 TFT
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 10.1 | inch |
| Resolution | 800X1280 | dots |
| Pixel pitch | 0.1692(H)*0.1692(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 470 | cd/m2 |
| LCM (W * H * D) | 163.60X 245.50 X4.50 | mm |
| Active Area (W * H ) | 135.36 X 216.58 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 8S4P-LED | pcs |
| Operation temperature | -10 ~ +50 | ℃ |
| Storage temperature | -20 ~ +60 | ℃ |
| Interface | LVDS/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 24 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ILI9881C-04T00GA | - |
