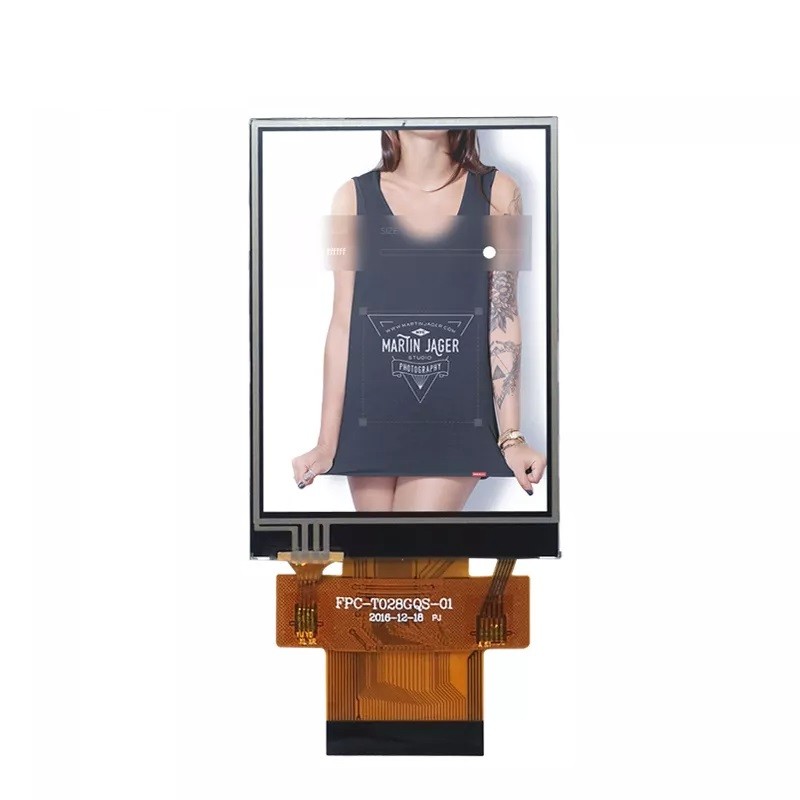

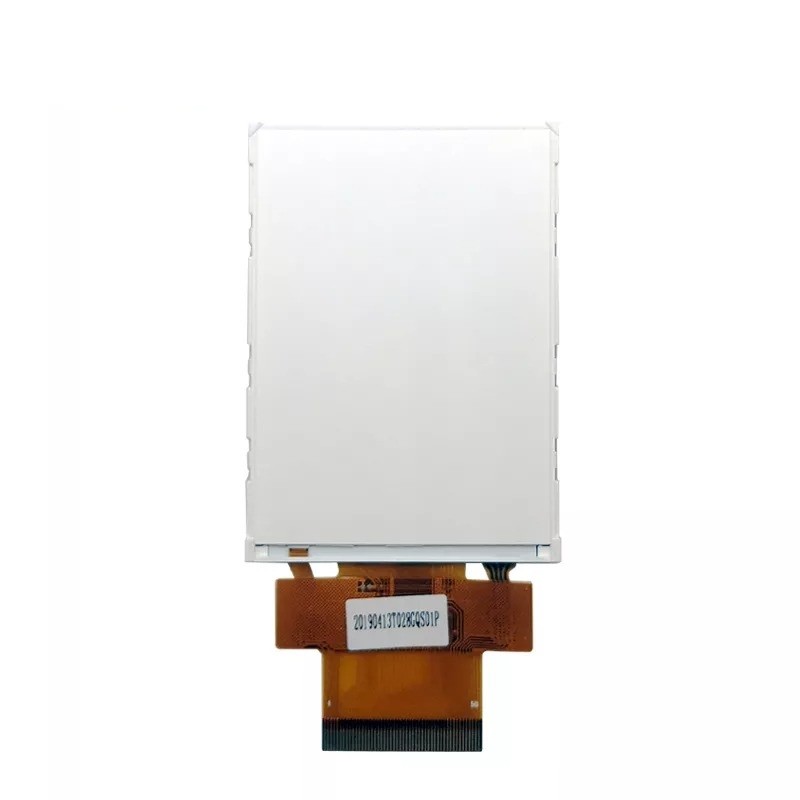

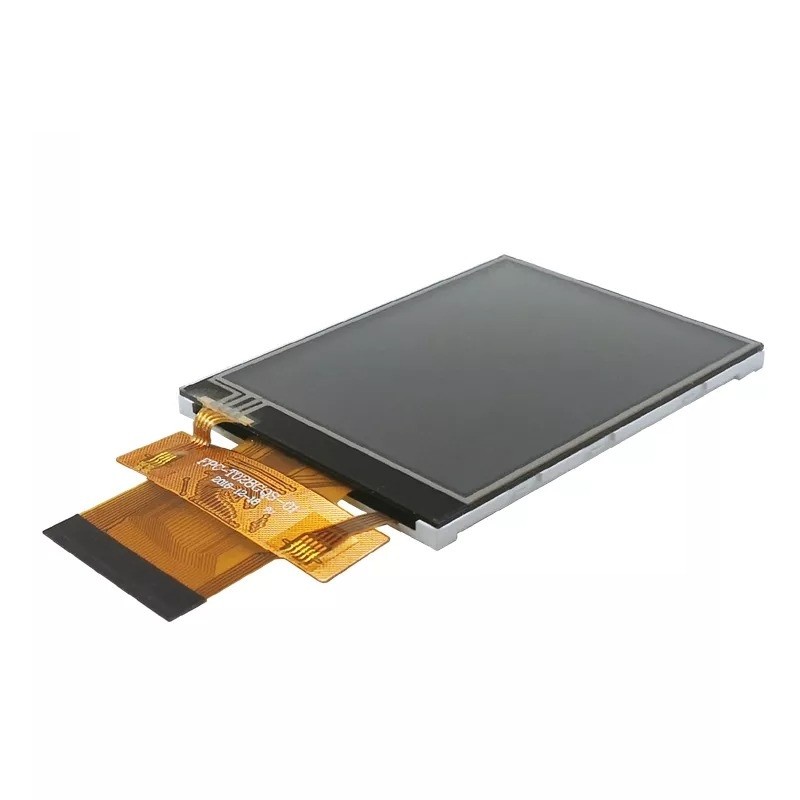

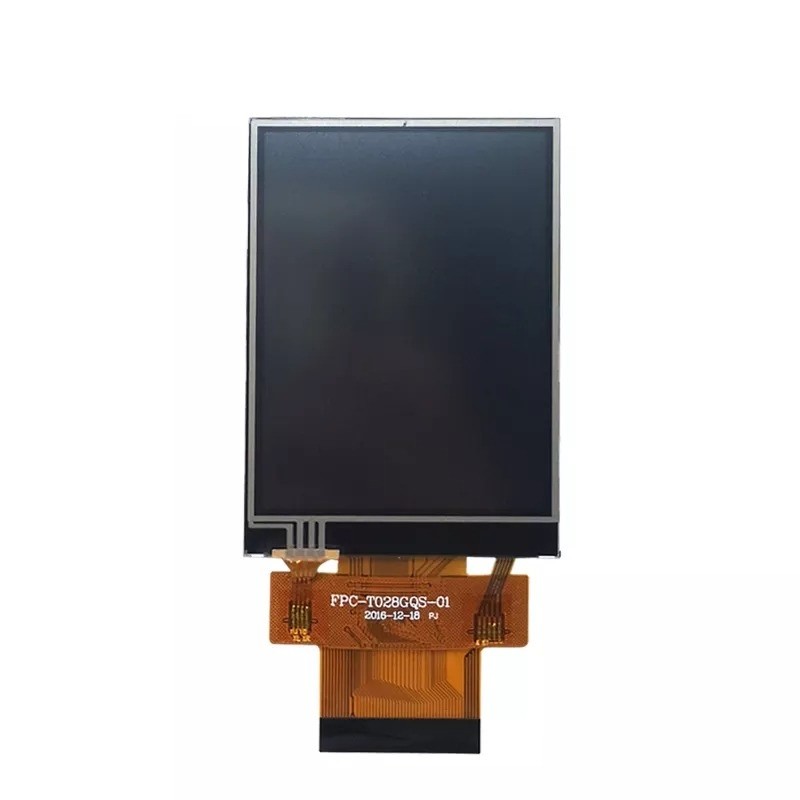

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.8英寸 LCD RG028GQS-01P 2.8英寸 240x320 TFT 带电阻触摸屏 ST
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 2.8 | inch |
| Resolution | 240*320 | dots |
| Pixel pitch | 0.180(H)*0.180(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 50.00*69.20*3.90 | mm |
| Active Area (W * H ) | 43.20*57.60 | mm |
| With /Without TP | With RTP | - |
| LED Numbers | 4P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU/RGB/SPI/50PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ST7789V | - |
