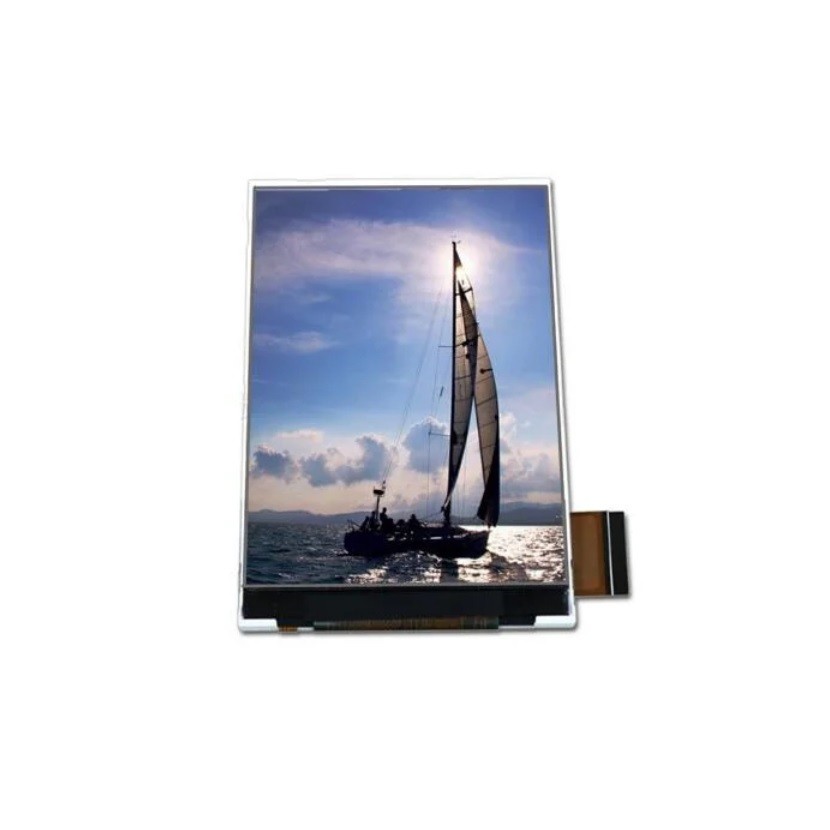

首页 产品展示 3英寸-4英寸 TFT LCD 3.2英寸 LCD RG032E1JT-01 3.2英寸 TFT LCD 240x400 400ni
| ITEM | Standard value |
| Display Mode | Transmissive,Normally white --- |
| Driver Mothod | TFT Active matrix |
| Number of Dots | 240(RGB)*400 Dots |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 41.76*69.60 mm |
| Optimum Viewing Direction | 6 o'clock |
| Gray Scale Inversion Direction | 12 o'clock |
| Driver IC | ST7793 |
| Module Size(W*H*T) | 48.40*81.50*2.77 mm |
| Approx. Weight | TBD g |
| Back Light | White LED |
| System interface | MCU & RGB |
