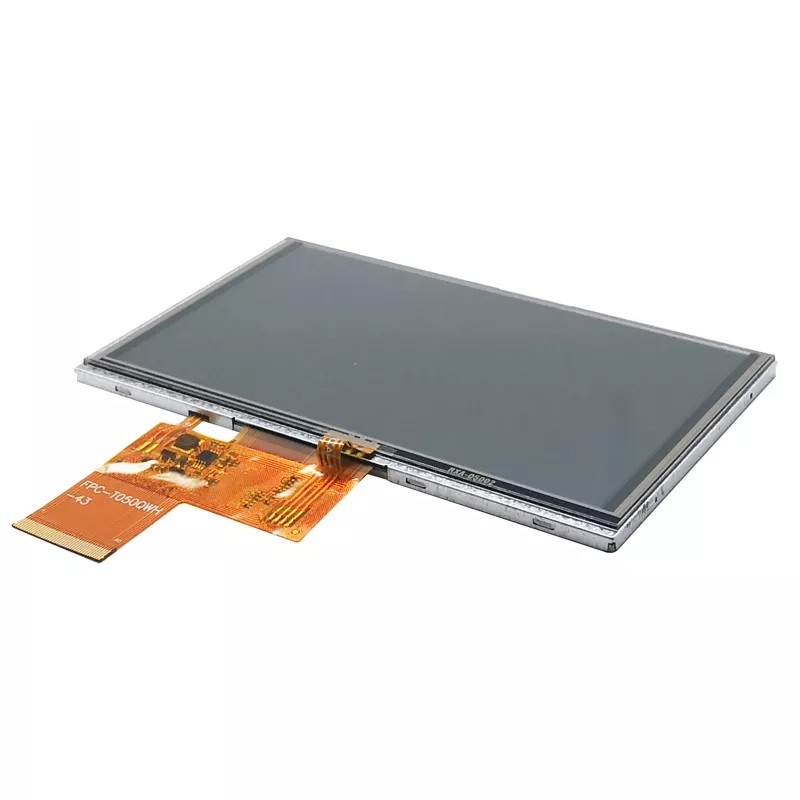

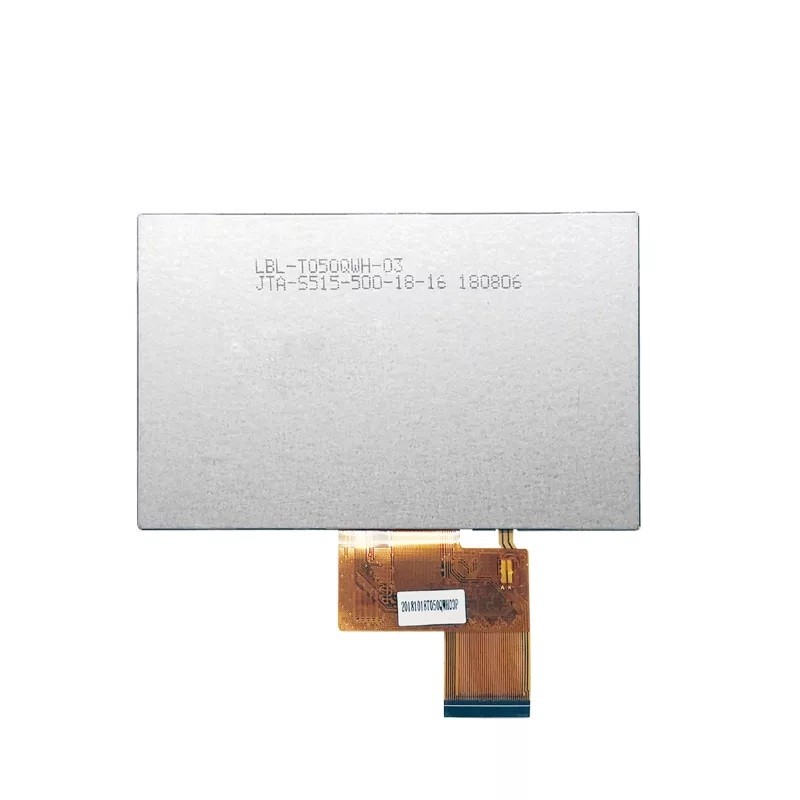

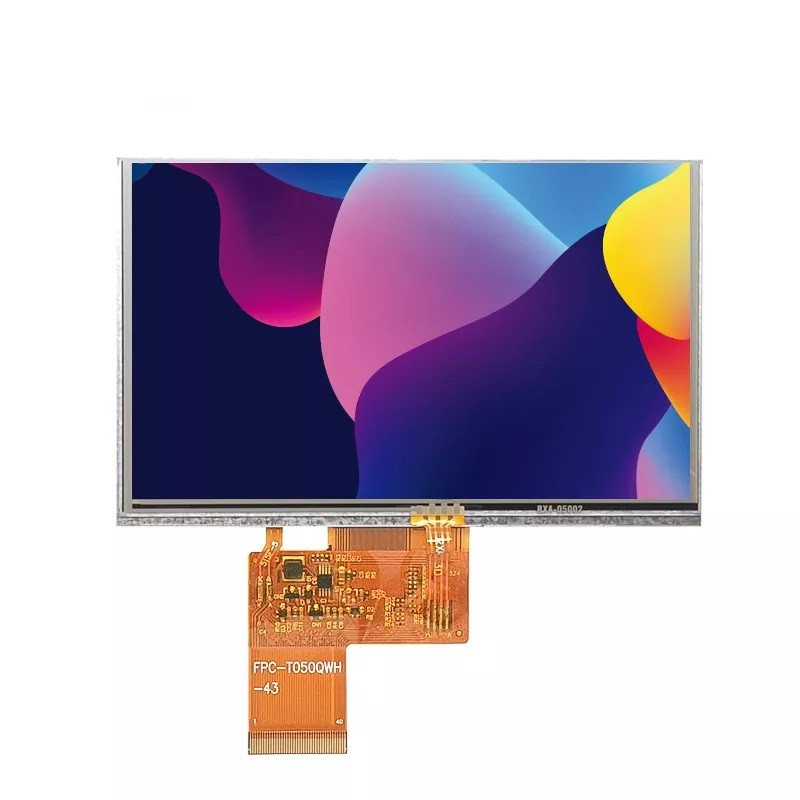

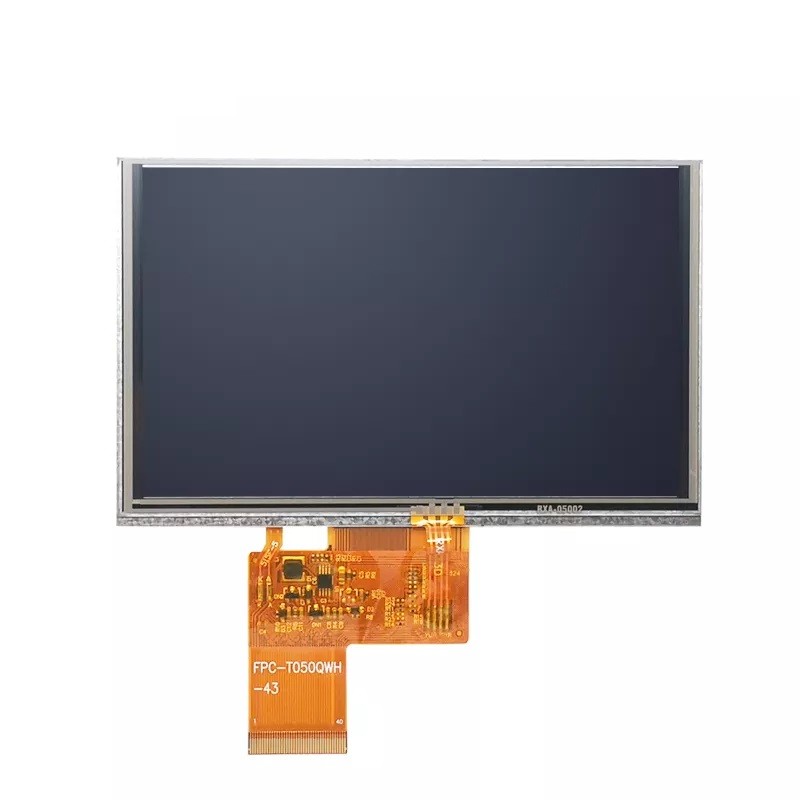

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5英寸 LCD RG050QWH-03P 5英寸 800x480 TFT LCD带电阻触摸屏
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 5.0 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.135(H)x0.135(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 400 | cd/m2 |
| LCM (W * H * D) | 120.70*75.80*4.30 | mm |
| Active Area (W * H ) | 108.00*64.80 | mm |
| With /Without TP | With RTP | - |
| LED Numbers | 6S3P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 18.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ILI6122+ILI5960 | - |
