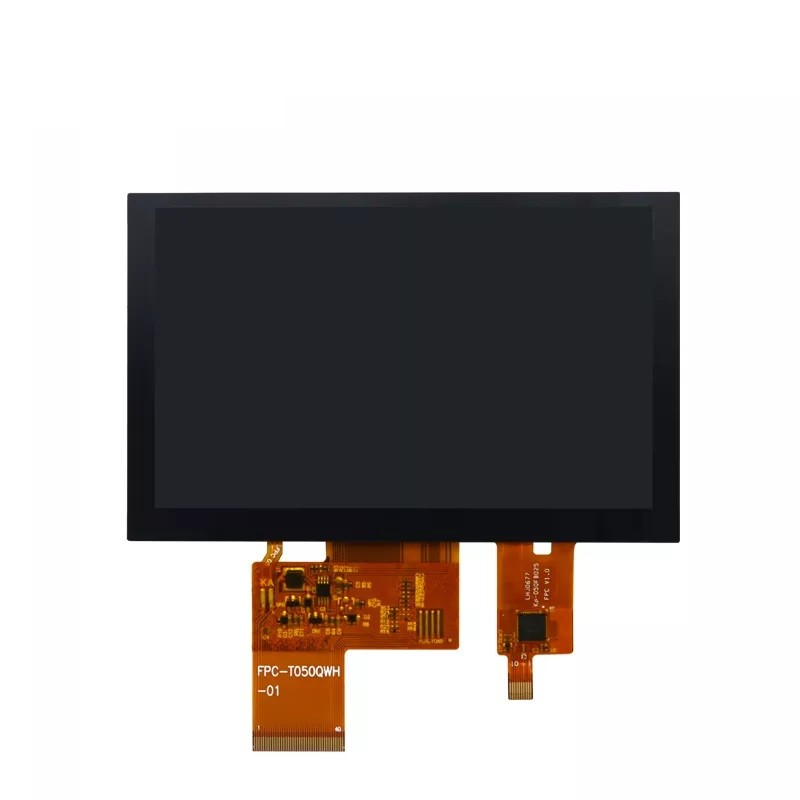

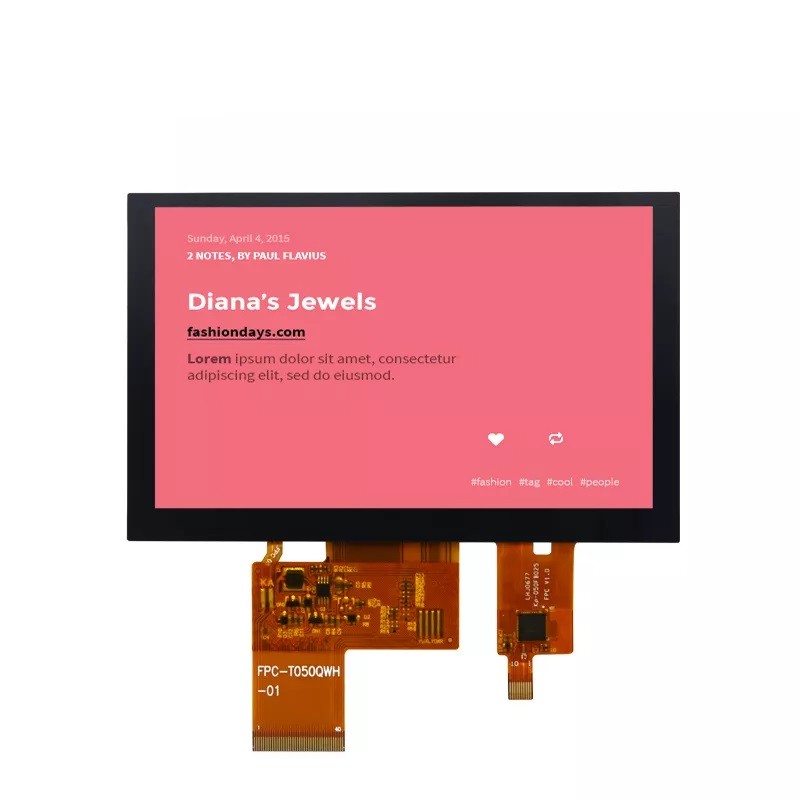

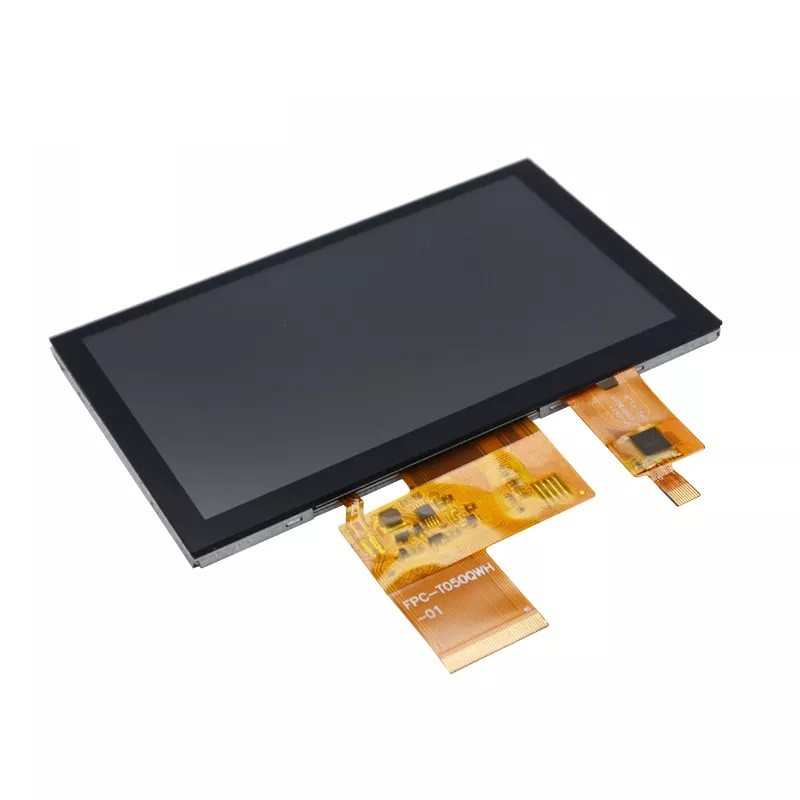

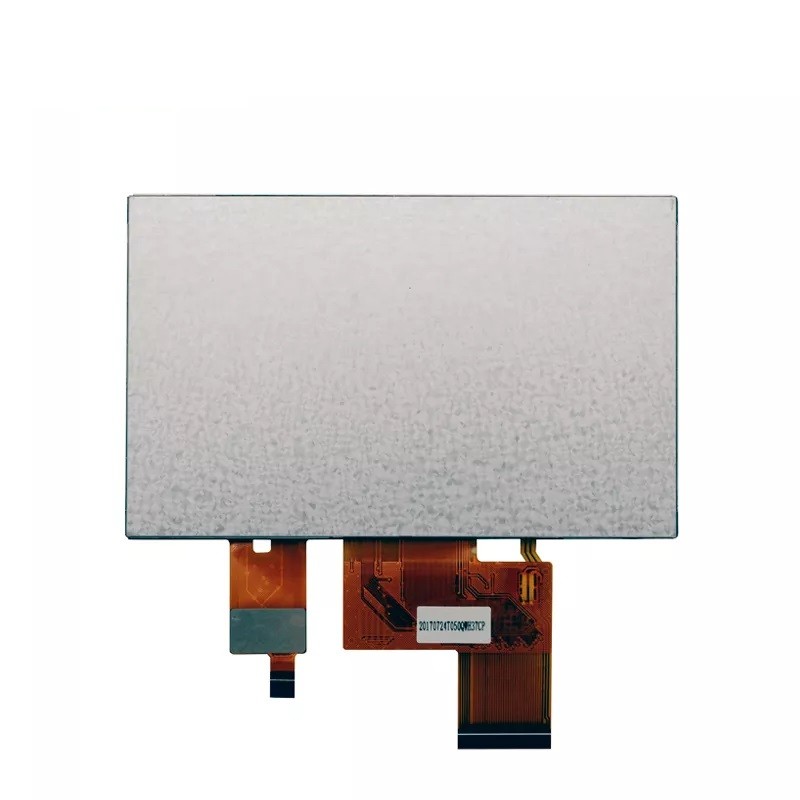

  • RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动
  • RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动
  • RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动
  • RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动
RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动

RG050QWH-51CP 5英寸 800x480带电容触屏ILI6122+ILI5960驱动

  • 产品项目 : RG050QWH-51CP
  • 类别: 5英寸 LCD
  • 分辨率: 800*(RGB)*480
  • 亮度: 420nits
  • LCM (W * H * D): 120.70*75.80*5.28mm
  • LCM驱动IC: ILI6122+ILI5960
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 5.0 inch
Resolution 800*480 dots
Pixel pitch 0.135(H)x0.135(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 420 cd/m2
LCM (W * H * D) 120.70*75.80*5.28 mm
Active Area (W * H ) 108.00*64.80 mm
With /Without TP With CTP -
LED Numbers 6S3P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB888/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 18.0 V
Color Depth 16.7M -
LCM Driver IC ILI6122+ILI5960 -
CTP  Dricer IC FT5306 -
