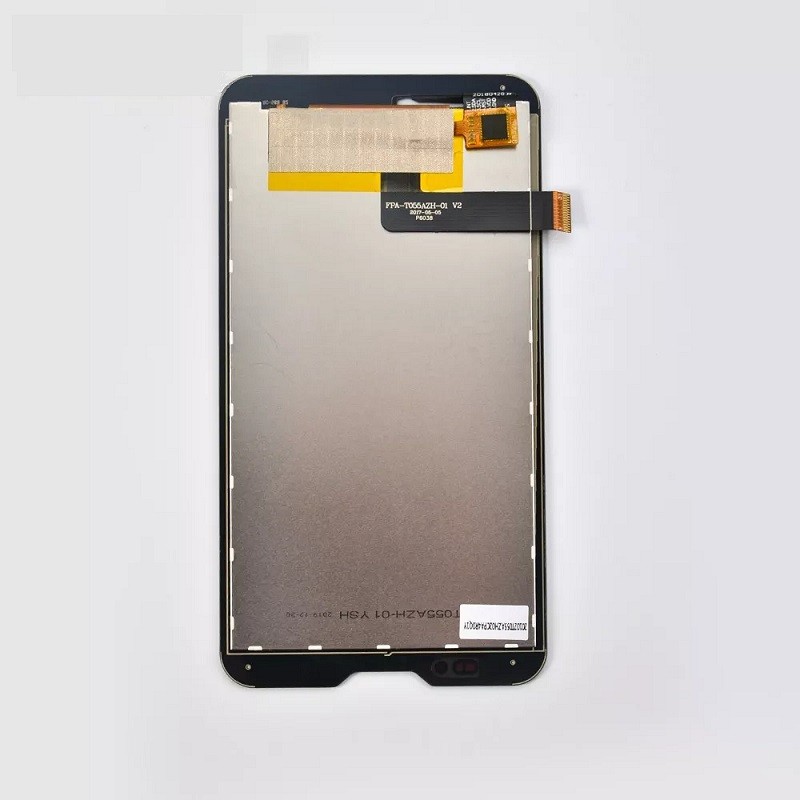

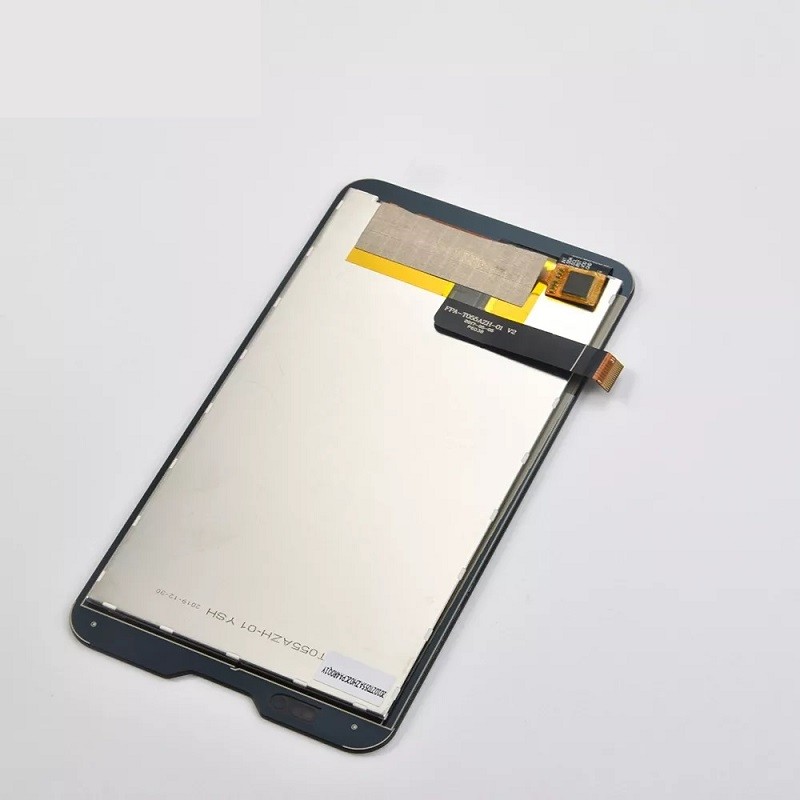

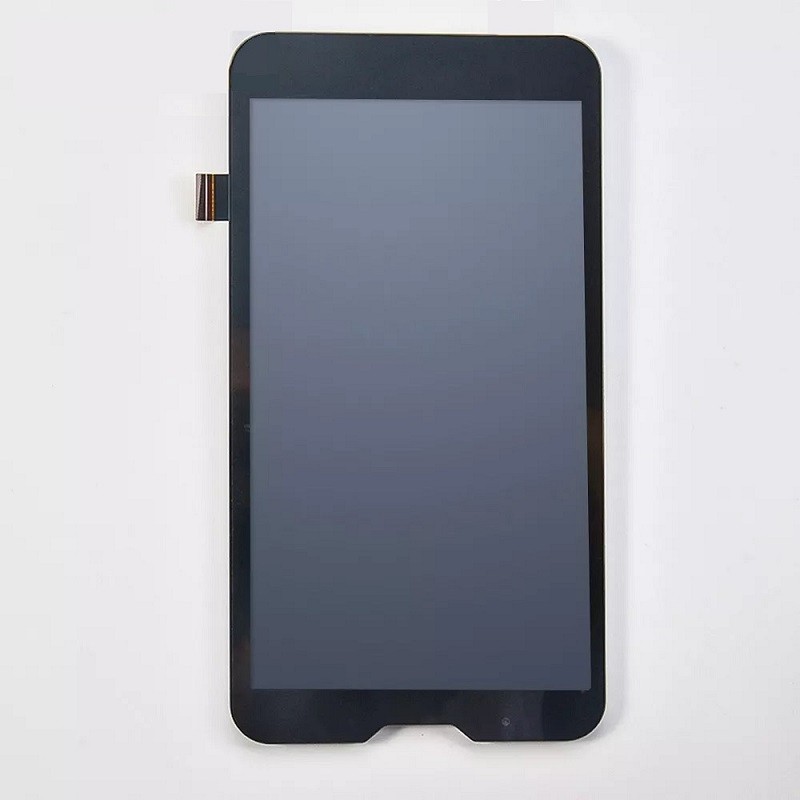

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5.5英寸 LCD RG055AZH-02CP 5.5英寸TFT LCD显示屏智能手机应用
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 5.5 | inch |
| Resolution | 1080*1920 | dots |
| Pixel pitch | 0.063(H)*0.063(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 610 | cd/m2 |
| LCM (W * H * D) | 77.10*145.7*3.51 | mm |
| Active Area (W * H ) | 68.04*120.96 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 7S2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 4 LANE MIPI 31PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 21 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8399 | - |
| CTP Dricer IC | GT911 | - |
