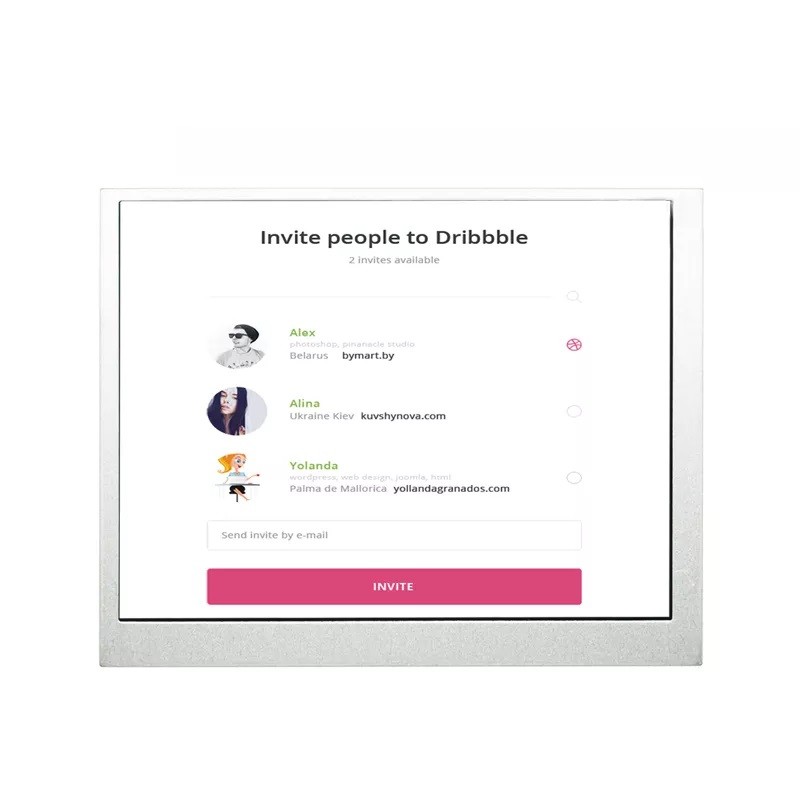

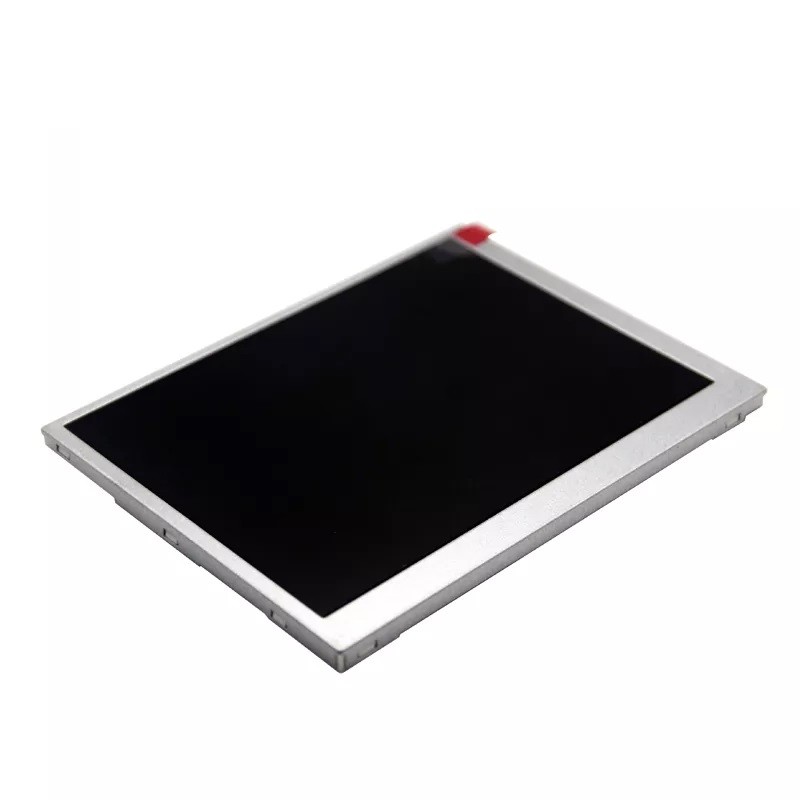

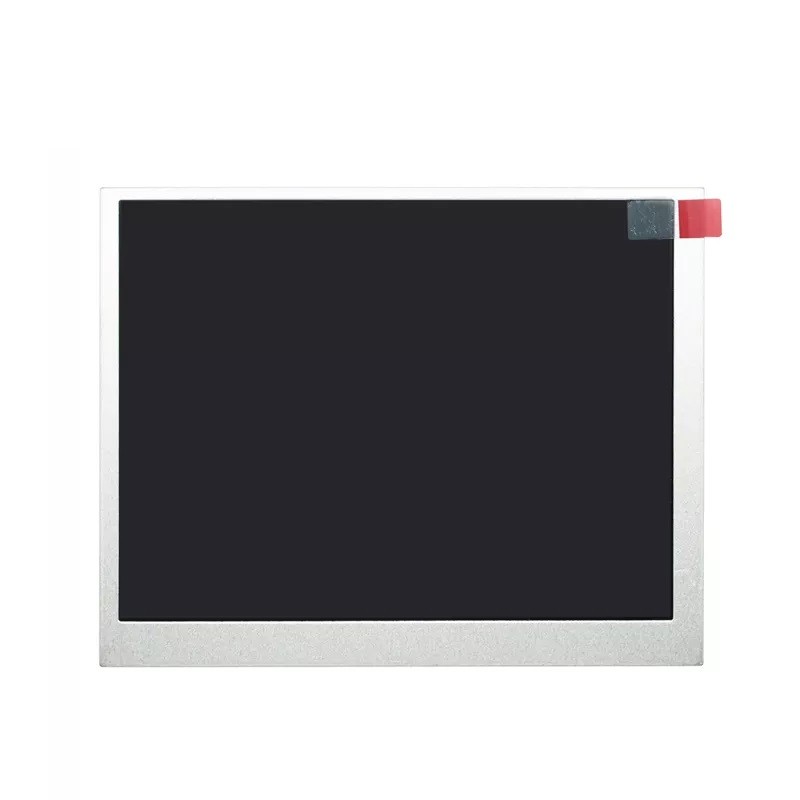

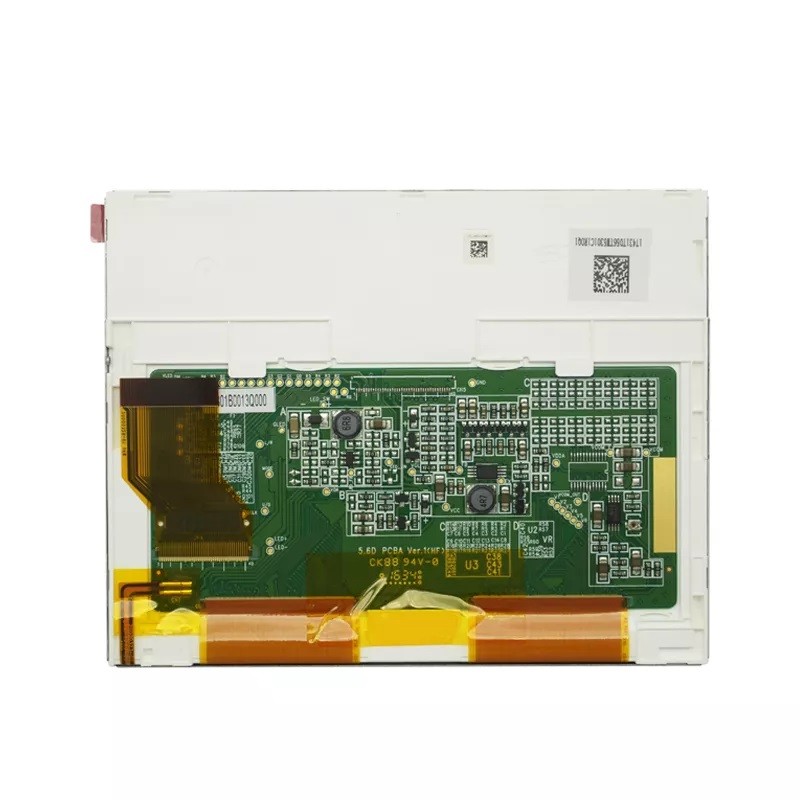

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5.6英寸 LCD RG056TN53-01 5.6英寸640x480高亮LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 5.6 | inch |
| Resolution | 640*480 | dots |
| Pixel pitch | 0.1764(H)×0.1764(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 800 | cd/m2 |
| LCM (W * H * D) | 126.50*100.00*5.70 | mm |
| Active Area (W * H ) | 112.896*84.672 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S7P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB-18bit/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 262K | - |
