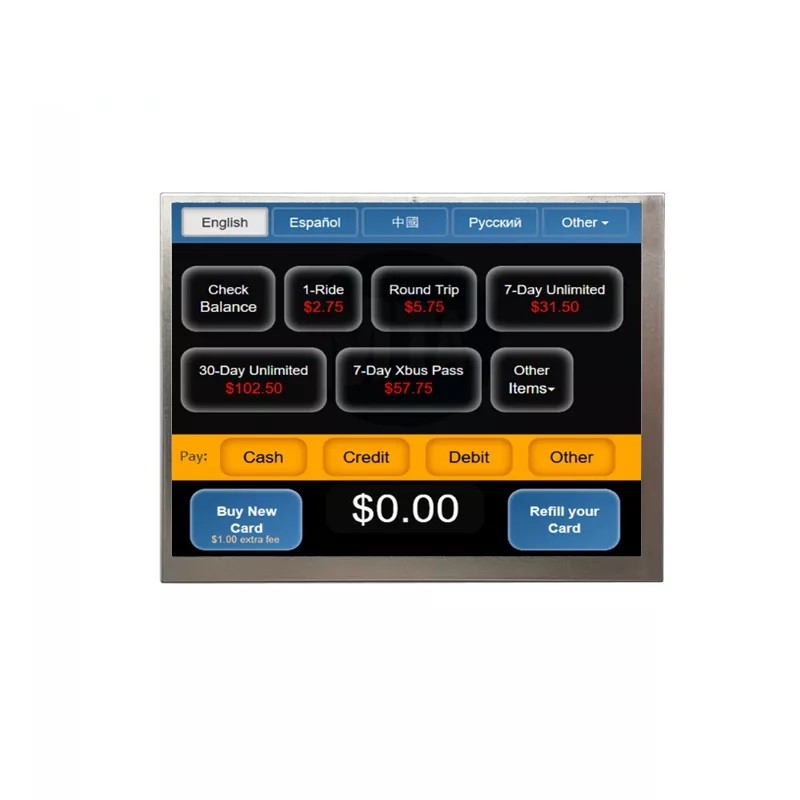

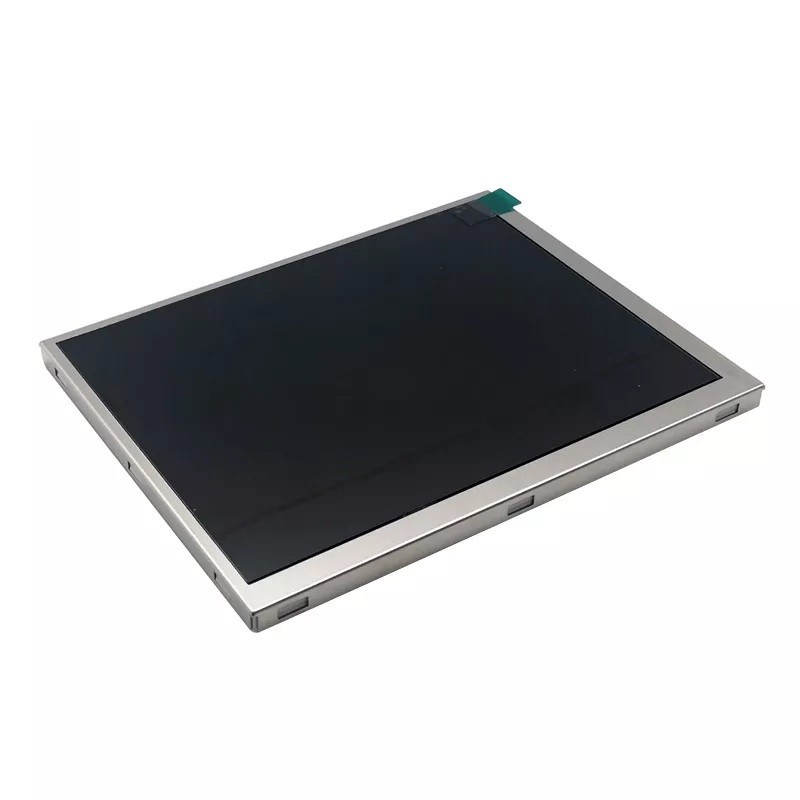

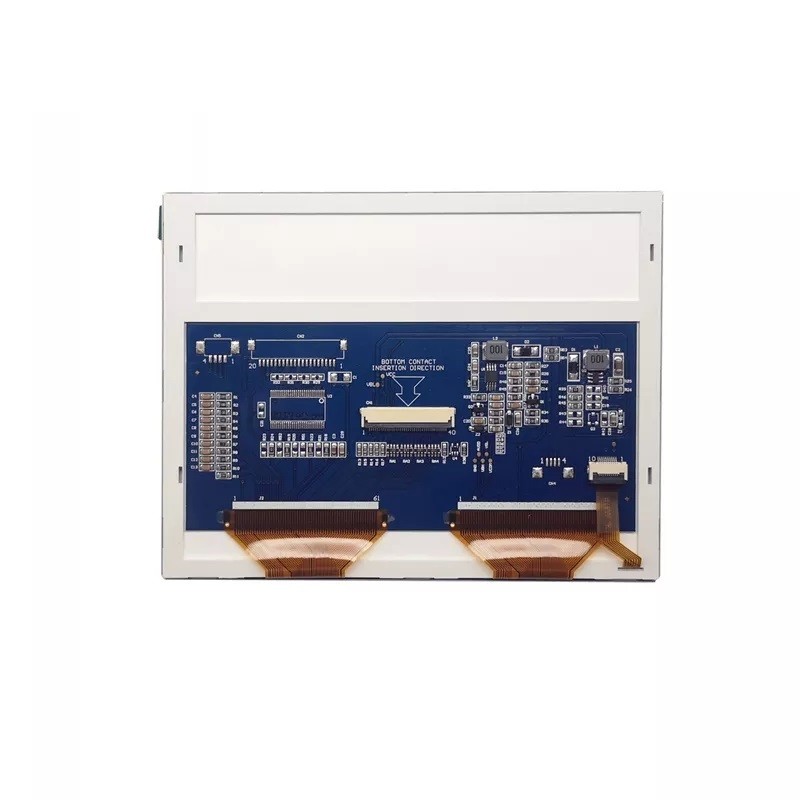

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5.7英寸 LCD RG057BGEA-01 5.7英寸 IPS 640x480 TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 5.7 | inch |
| Resolution | 640*480 | dots |
| Pixel pitch | 0.18(H)×0.18(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 650 | cd/m2 |
| LCM (W * H * D) | 127.00*98.43*5.80 | mm |
| Active Area (W * H ) | 115.20X86.40 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S7P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB666 | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | JD9168S | - |
