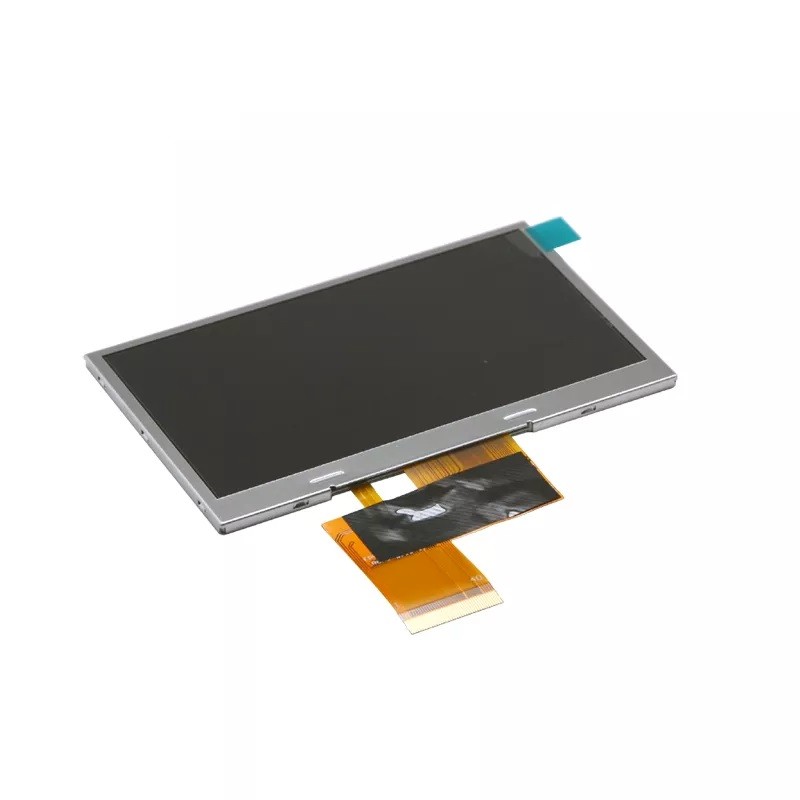

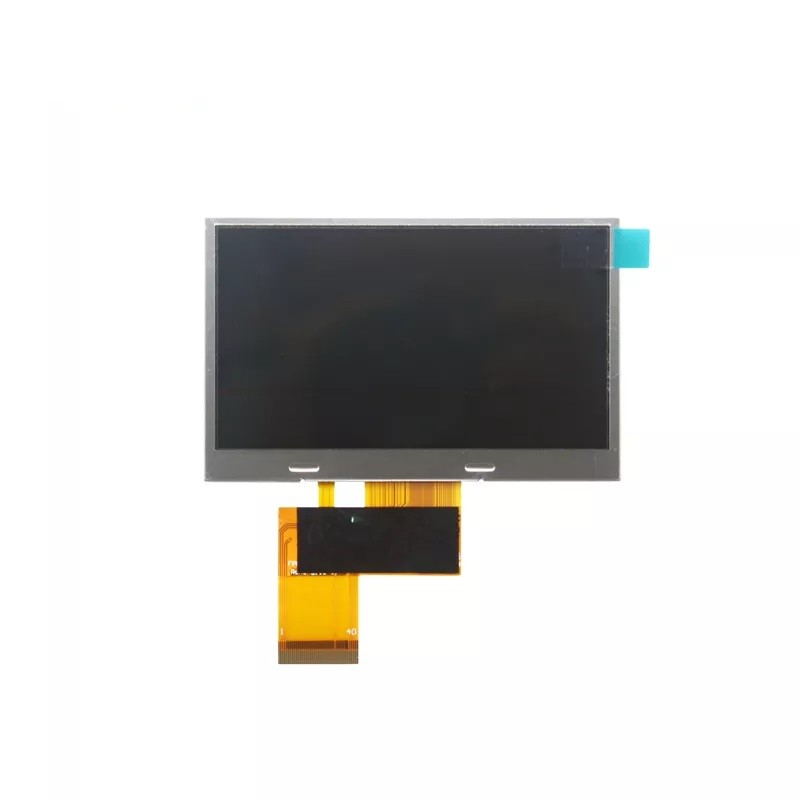

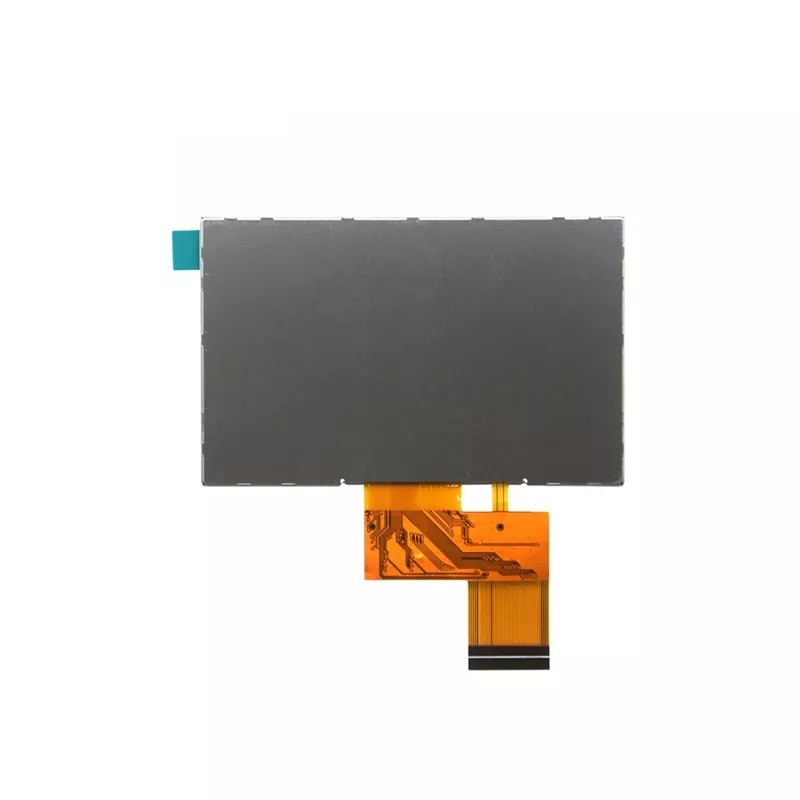

RG043GPH-108 4.3英寸TFT LCD模块ILI6480B

产品描述:
Feature Specification Unit
Display Spec Brand

Ronen

-
Size 4.3 inch
Resolution 480*272 dots
Pixel pitch 0.198(H)x0.198(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 700 cd/m2
Mechanical
Characteristics
LCM (W * H * D) 105.40*67.15*4.15 mm
Active Area (W * H ) 95.04*53.86 mm
With /Without TP With RTP -
LED Numbers 9S-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Electrical
Characteristics
Interface RGB888/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 27 V
Color Depth 16.7M -
LCM Driver IC ILI6480B -
