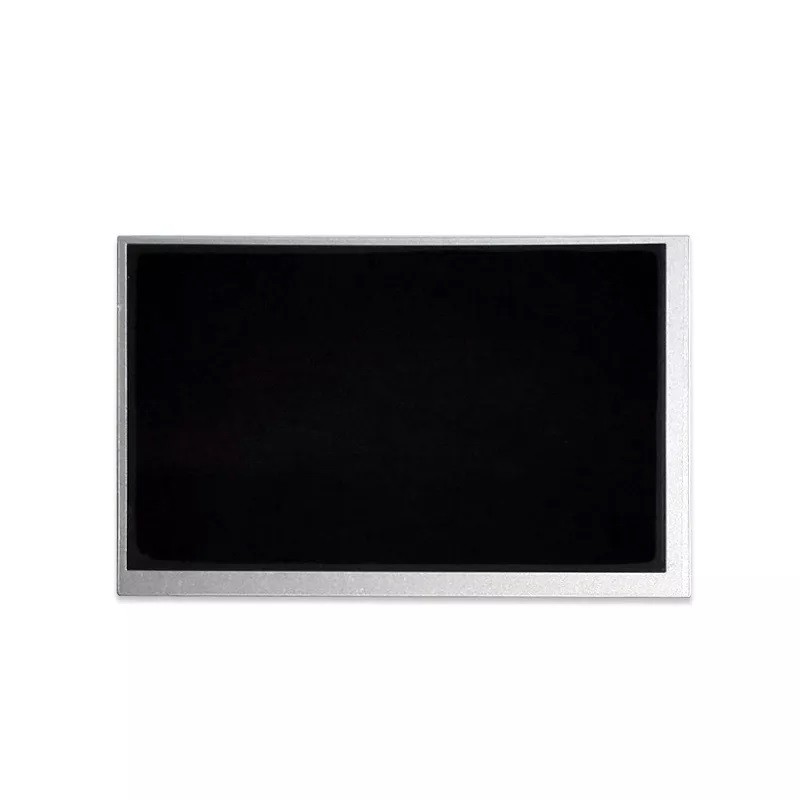

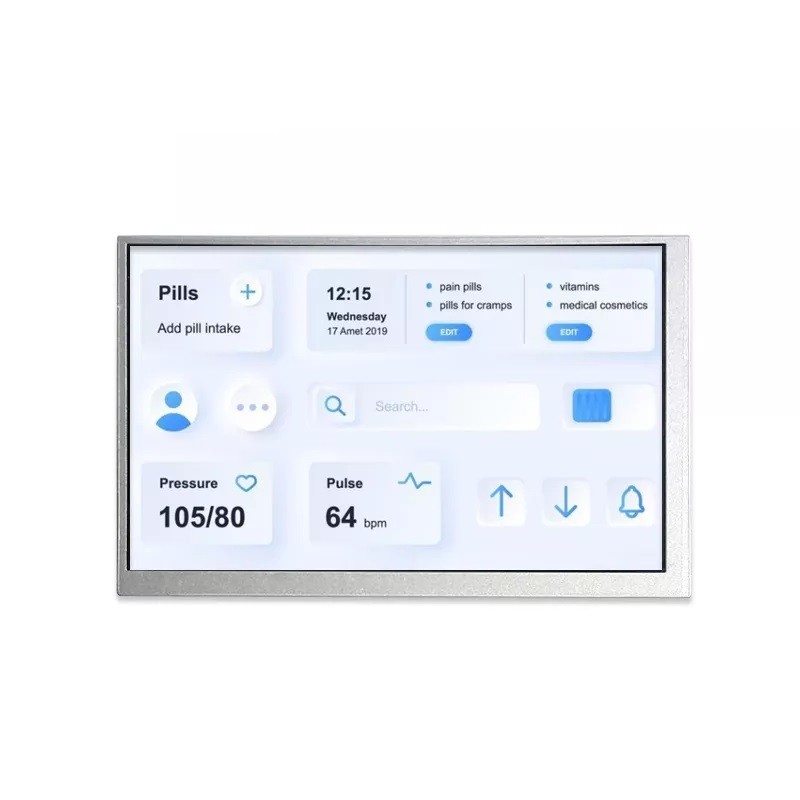

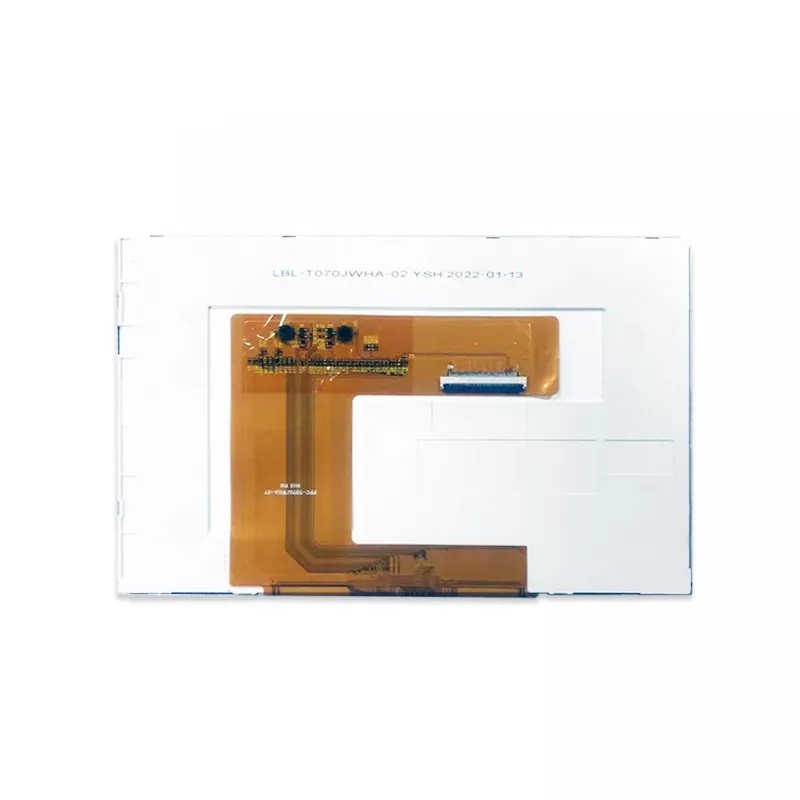

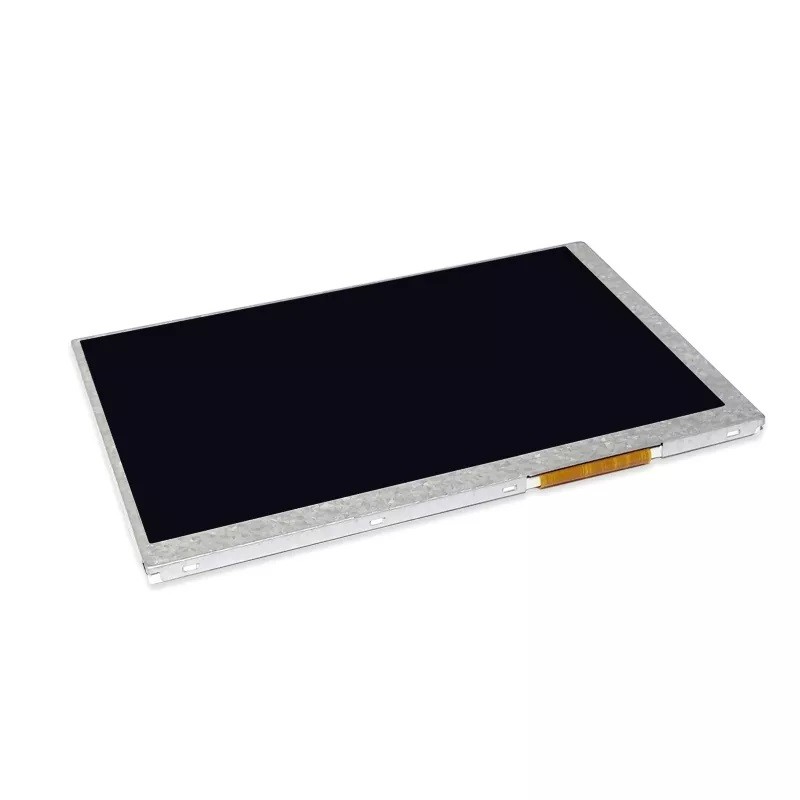

RG070JWHA-02 7英寸800x480全视角IPS LCD

  • 产品项目 : RG070JWHA-02
  • 类别: 7英寸 LCD
  • 分辨率: 800*(RGB)*480
  • 亮度: 500nits
  • LCM (W * H * D): 165.00*104.60*5.30mm
  • LCM驱动IC: HX5281-B
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 7.0 inch
Resolution 800x480 dots
Pixel pitch 0.193(H)×0.1905(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 500 cd/m2
LCM (W * H * D) 165.00*104.60*5.30 mm
Active Area (W * H ) 154.40*91.44 mm
With /Without TP Without TP -
LED Numbers 3S8P-LED pcs
Operation temperature -30~+85
Storage temperature -40~+90
Interface RGB666 -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX5281-B -
