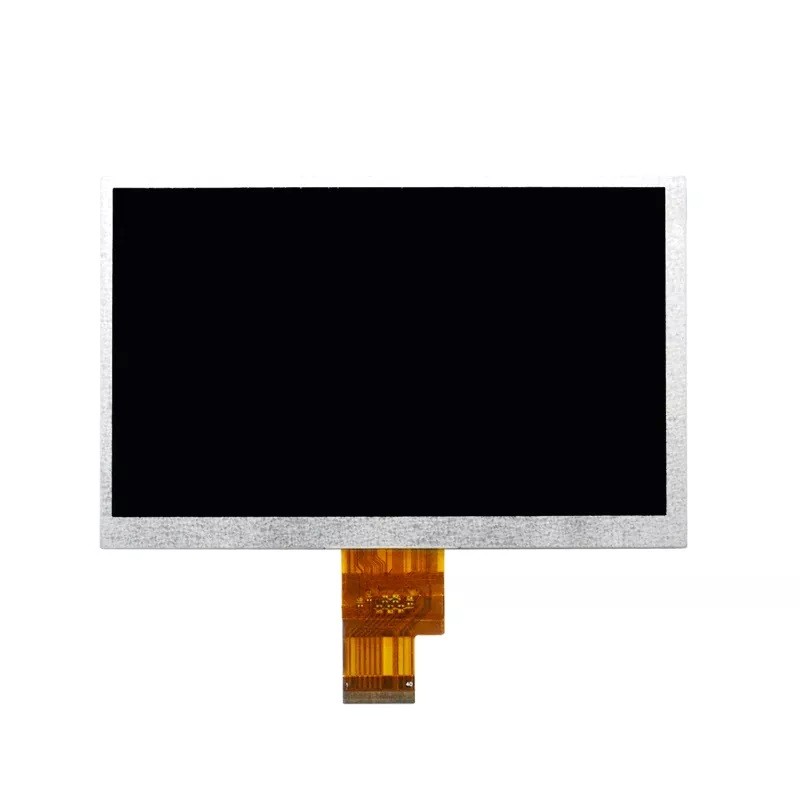

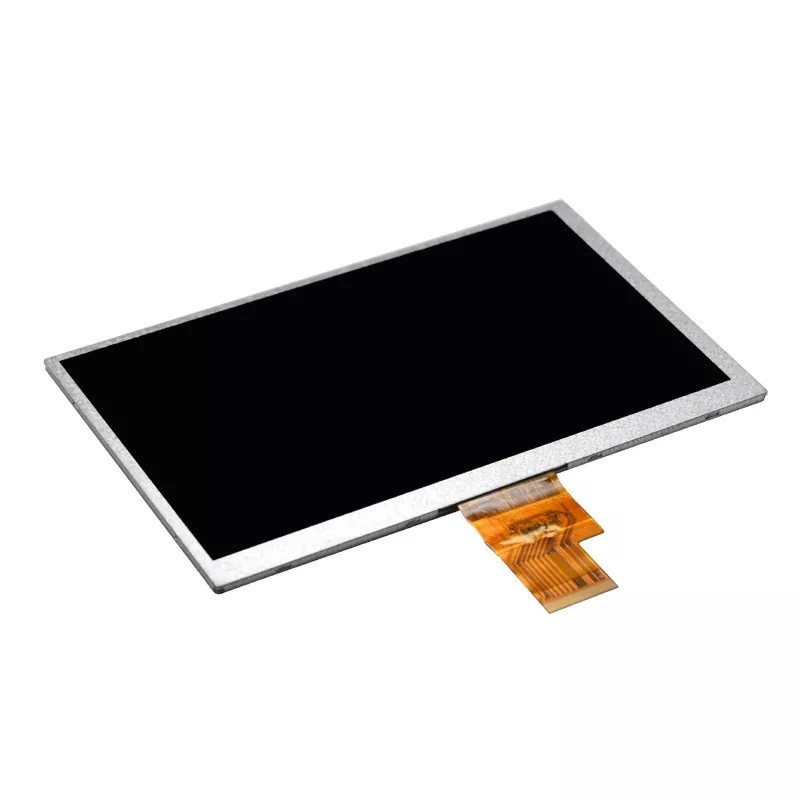

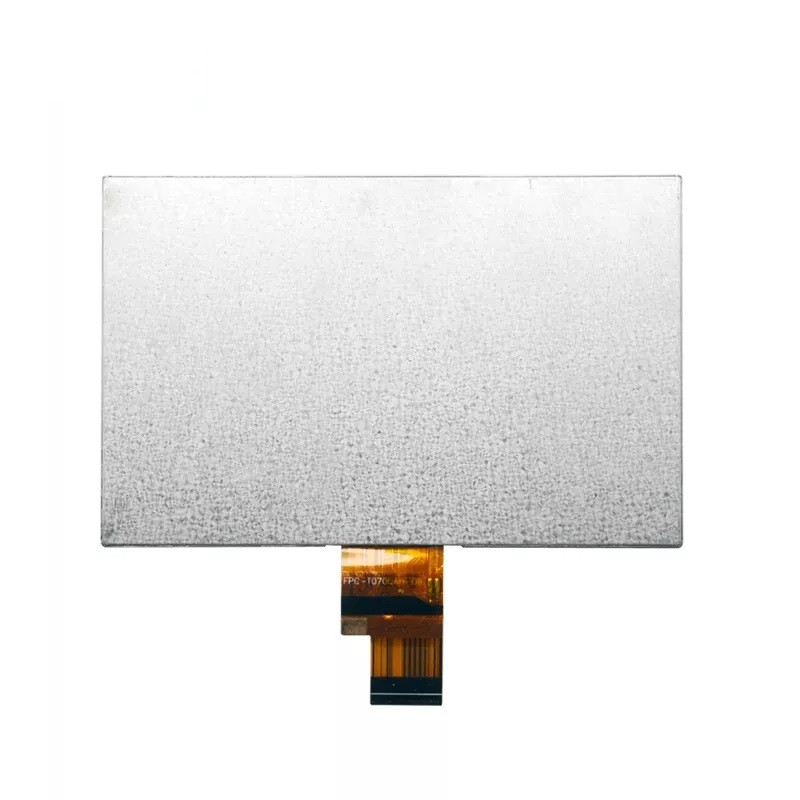

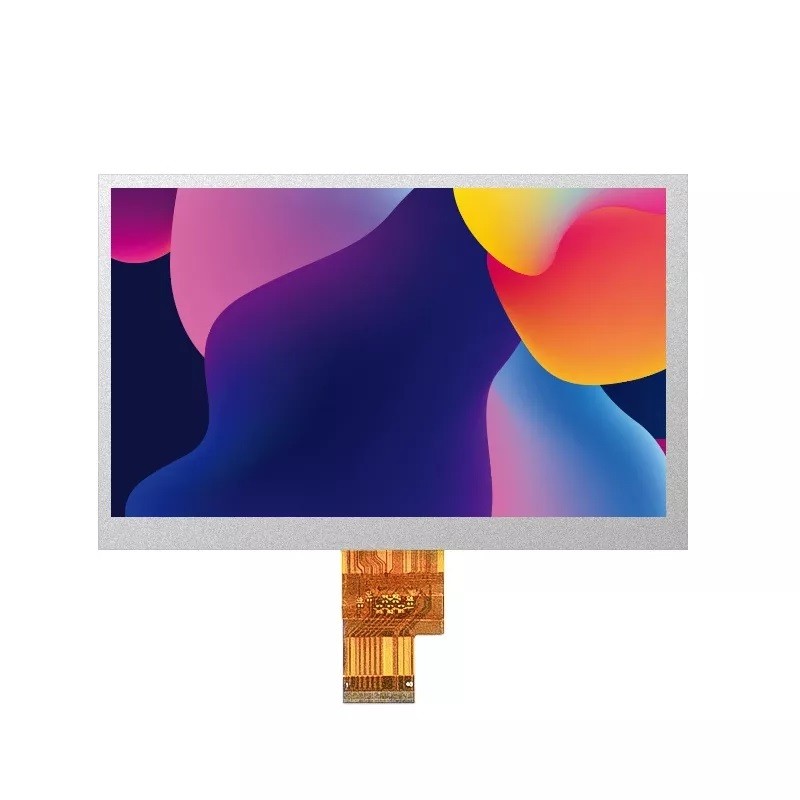

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070QAH-09 7英寸1024x600带LVDS接口TFT LCD模块
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 7.0 | inch | |
| Resolution | 1024*600 | dots | |
| Pixel pitch | 0.150(W)x 0.150(H) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 12 | o'clock | |
| Gray Scale Inversion Direction | 6 | o'clock | |
| Luminance | 500 | cd/m2 | |
|
Mechanical Characteristics |
LCM (W * H * D) | 165.75*105.39*2.90 | mm |
| Active Area (W * H ) | 153.60*90.00 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 3S10P-LED | pcs | |
| Operation temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | LVDS/40PIN | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 9.0 | V | |
| Color Depth | 16,7M | - | |
