RG080QGH-07 8英寸800x600高亮TFT LCD模块RG080QGH-07 8英寸800x600高亮TFT LCD模块RG080QGH-07 8英寸800x600高亮TFT LCD模块RG080QGH-07 8英寸800x600高亮TFT LCD模块

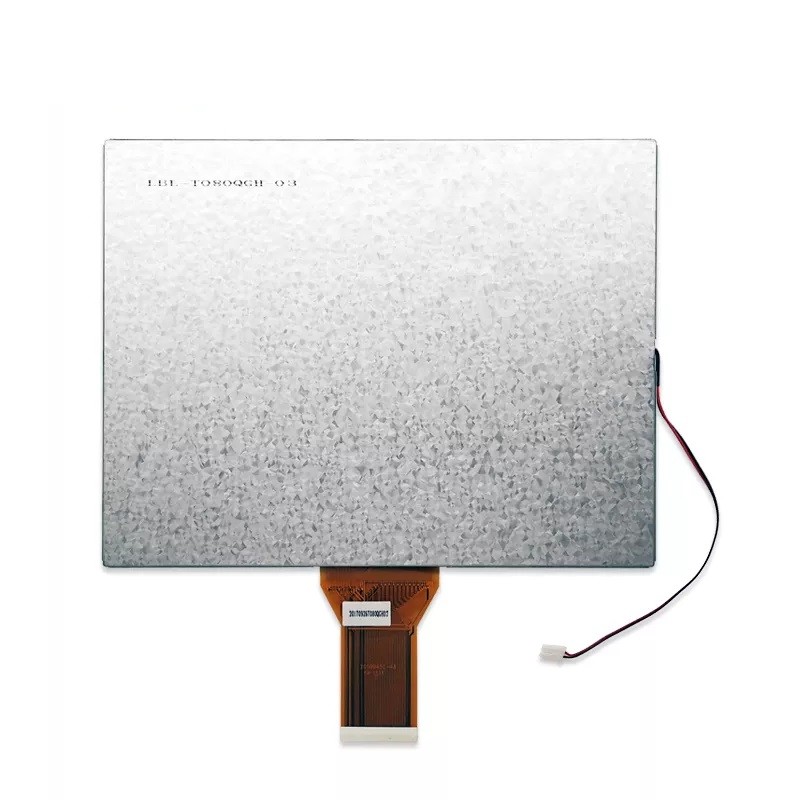

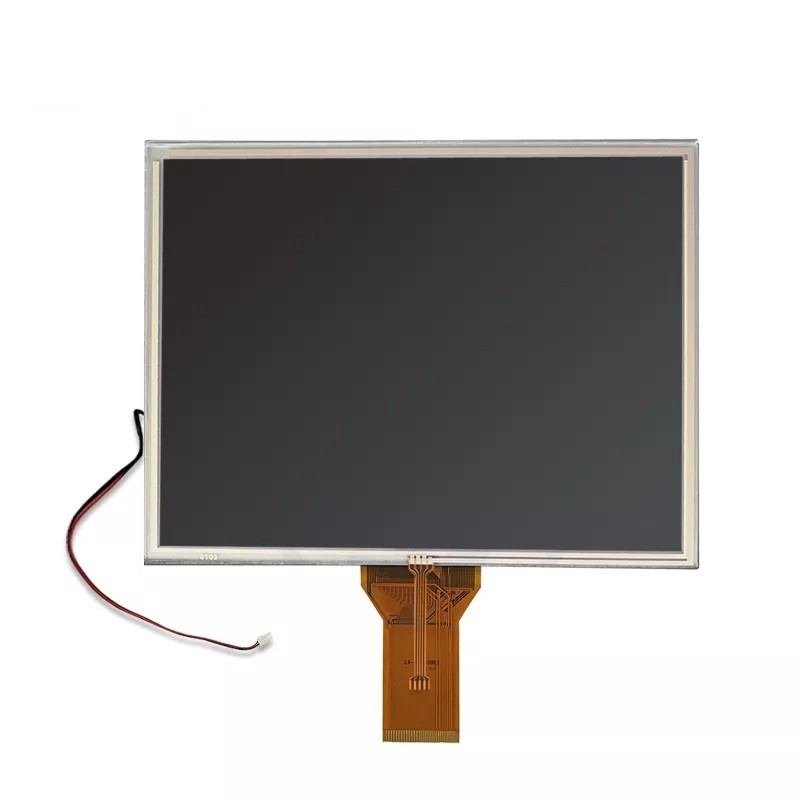

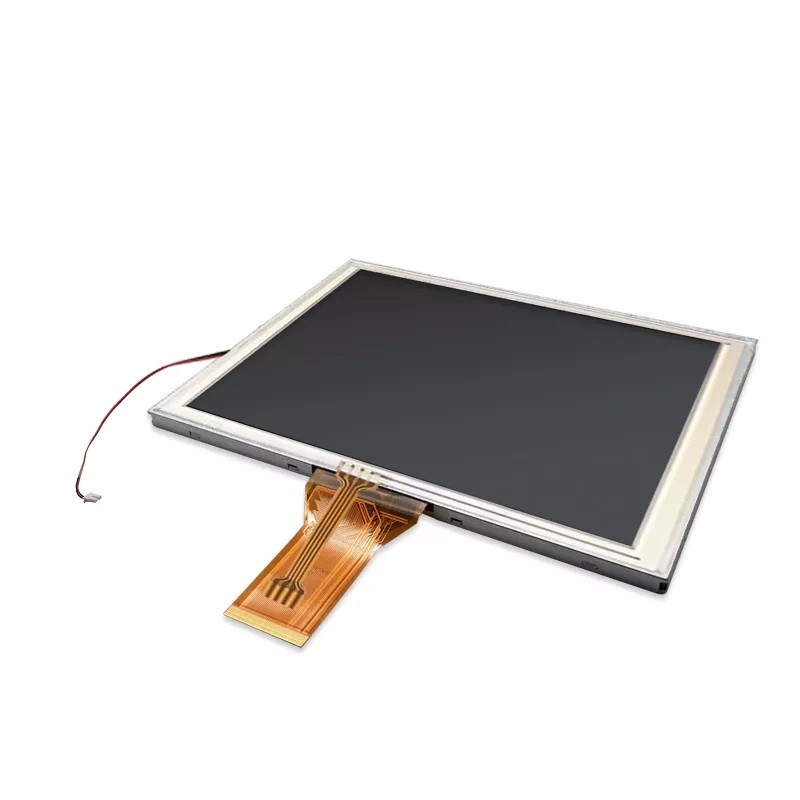

RG080QGH-07 8英寸800x600高亮TFT LCD模块

  • 产品项目 : RG080QGH-07
  • 类别: 8英寸 LCD
  • Resolution: 800*(RGB)*600
  • Luminance: 500nits
  • LCM (W * H * D): 183.00*141.00*6.20mm
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 8.0 inch
Resolution 800*600 dots
Pixel pitch 0.2025(W)x 0.2025(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 500 cd/m2
LCM (W * H * D) 183.00*141.00*6.20 mm
Active Area (W * H ) 162.00*121.50 mm
With /Without TP Without TP -
LED Numbers 3S9P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB-24bit/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
