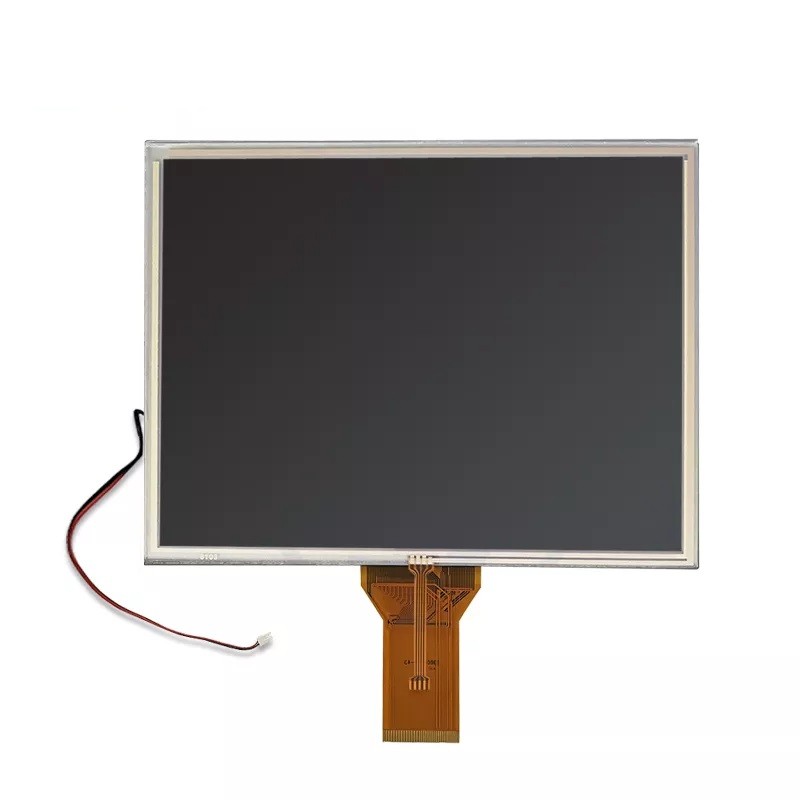

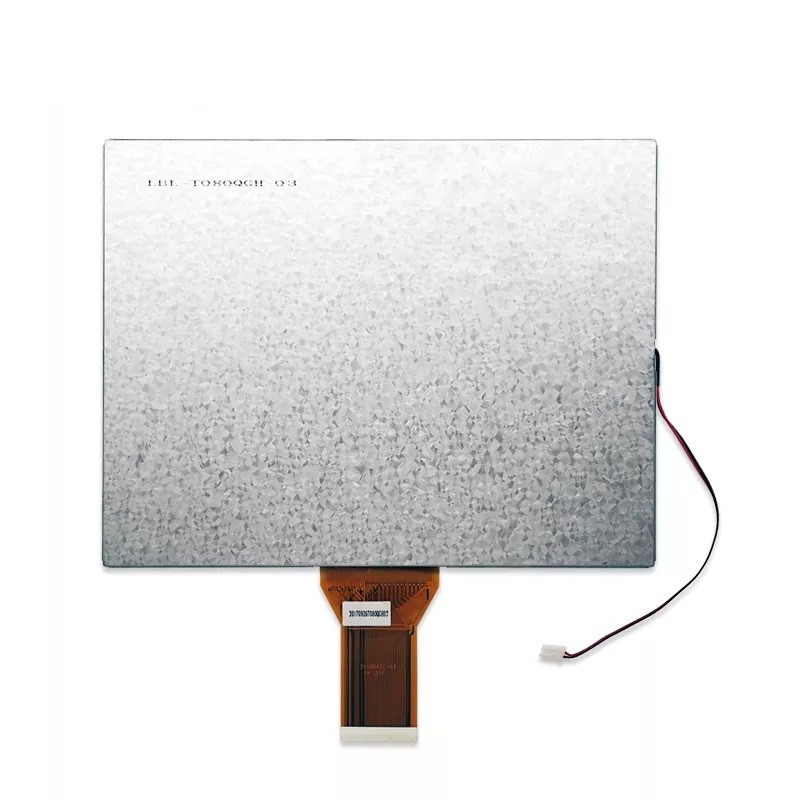

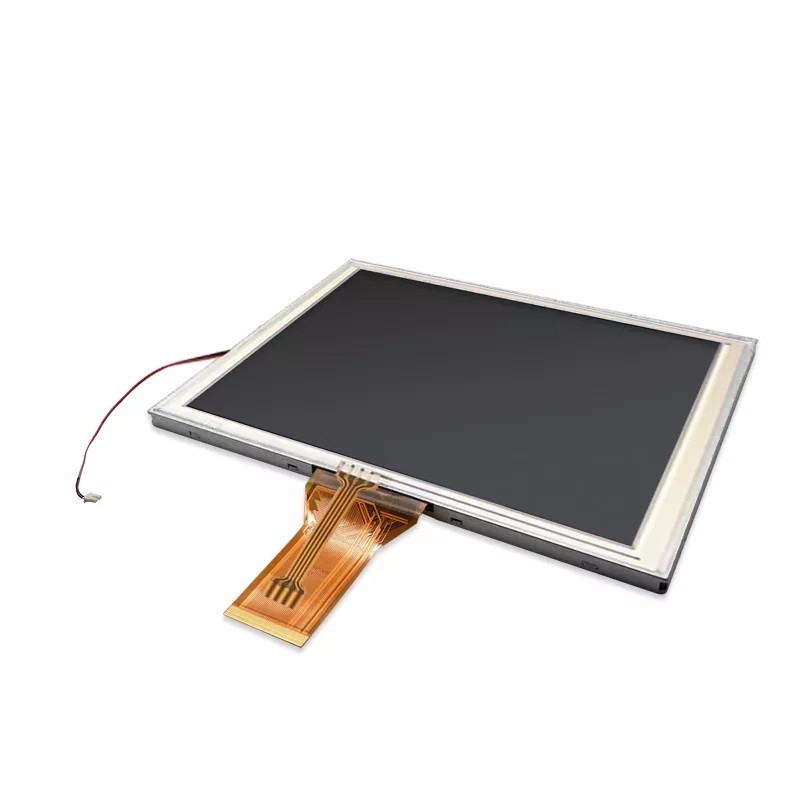

首页 产品展示 7英寸-10.4英寸 TFT LCD 8英寸 LCD RG080QGH-07P 8英寸800x600带电阻触摸屏TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 8.0 | inch |
| Resolution | 800*600 | dots |
| Pixel pitch | 0.2025(W)x 0.2025(H) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 400 | cd/m2 |

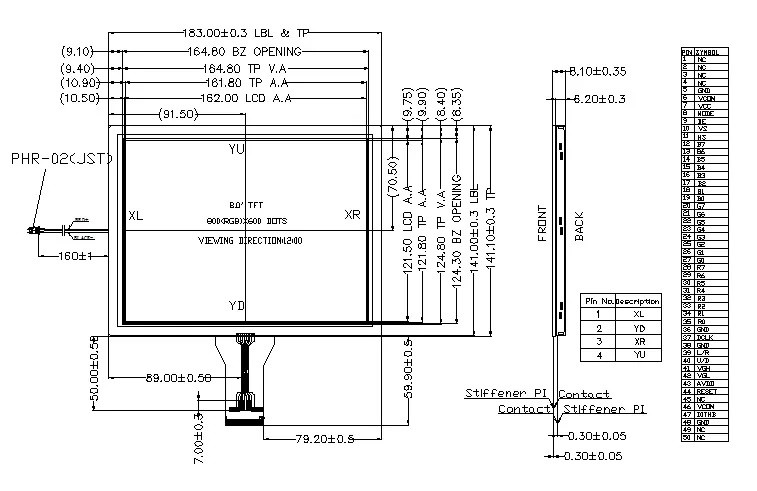

| LCM (W * H * D) | 183.00*141.00*8.10 | mm |
| Active Area (W * H ) | 162.00*121.50 | mm |
| With /Without TP | With RTP | - |
| LED Numbers | 3S9P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB-24bit/50PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
