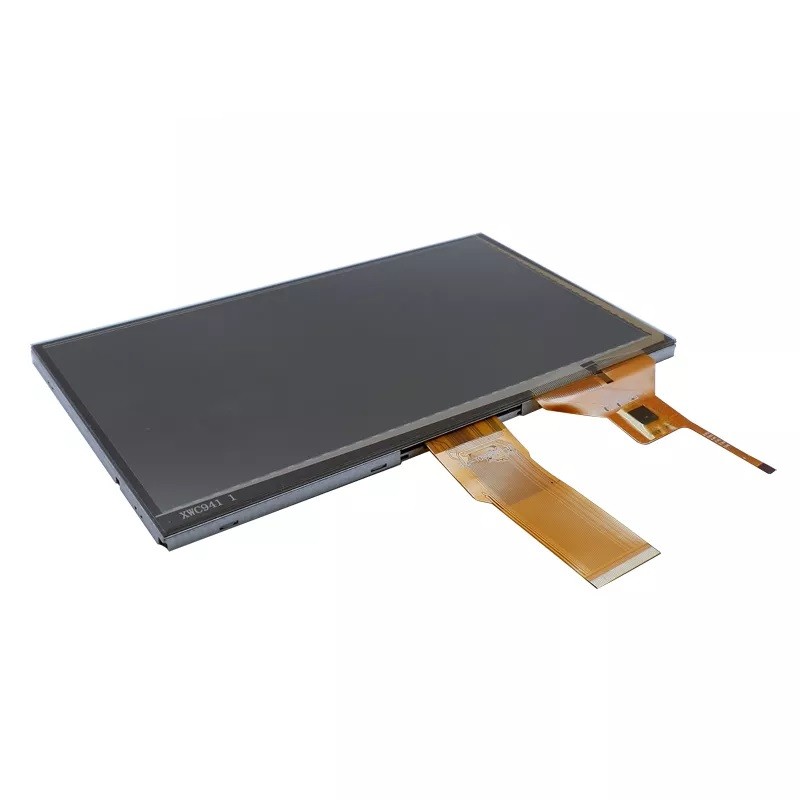

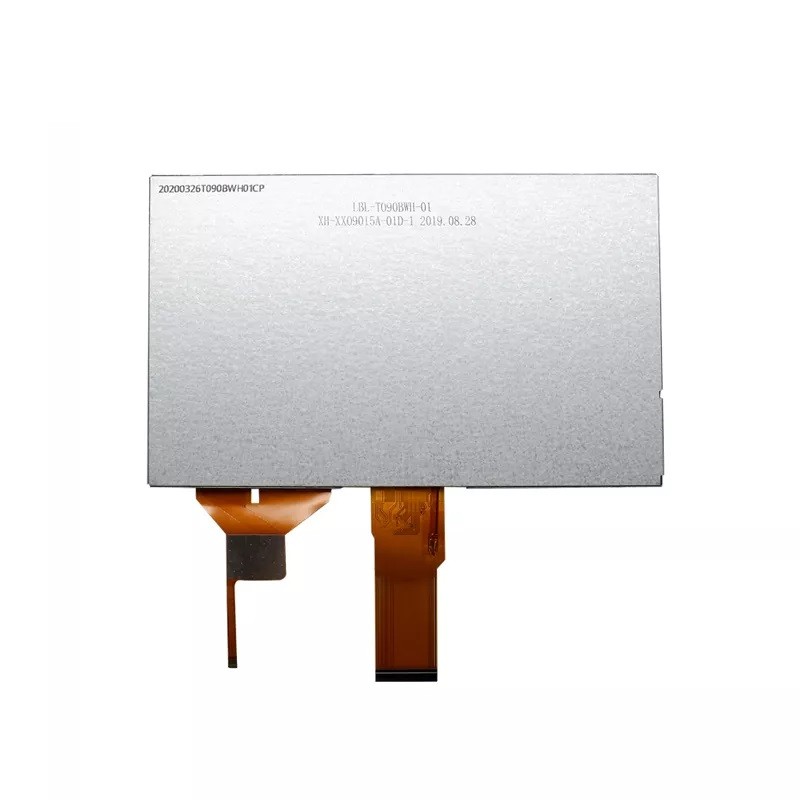

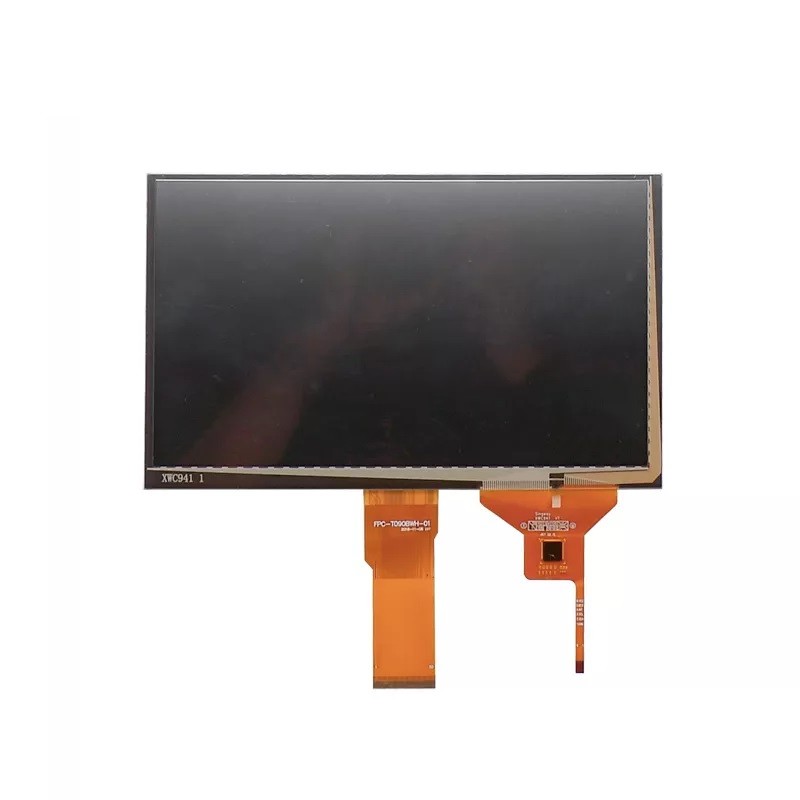

首页 产品展示 7英寸-10.4英寸 TFT LCD 9英寸 LCD RG090BWH-01CP 9英寸800x480高亮带电容触摸屏TFT LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 9.0 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.2475(W)x 0.2327(H) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 800 | cd/m2 |
| LCM (W * H * D) | 210.70*126.50*7.45 | mm |
| Active Area (W * H ) | 198.00*111.70 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 4S9P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 24BIT RGB | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 12.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8264+HX8664 | - |
| CTP Dricer IC | GT928 | - |
