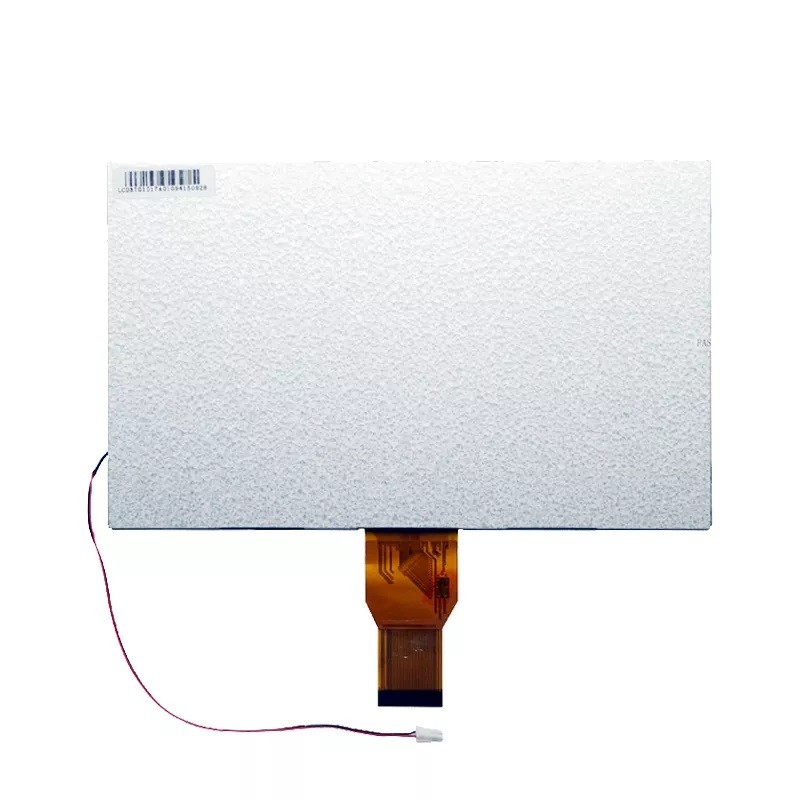

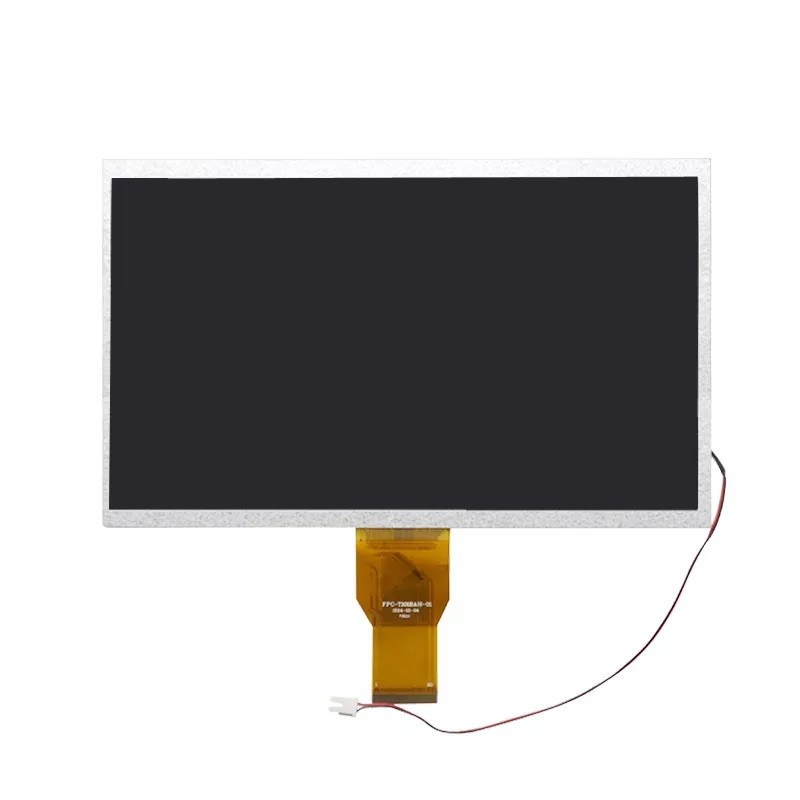

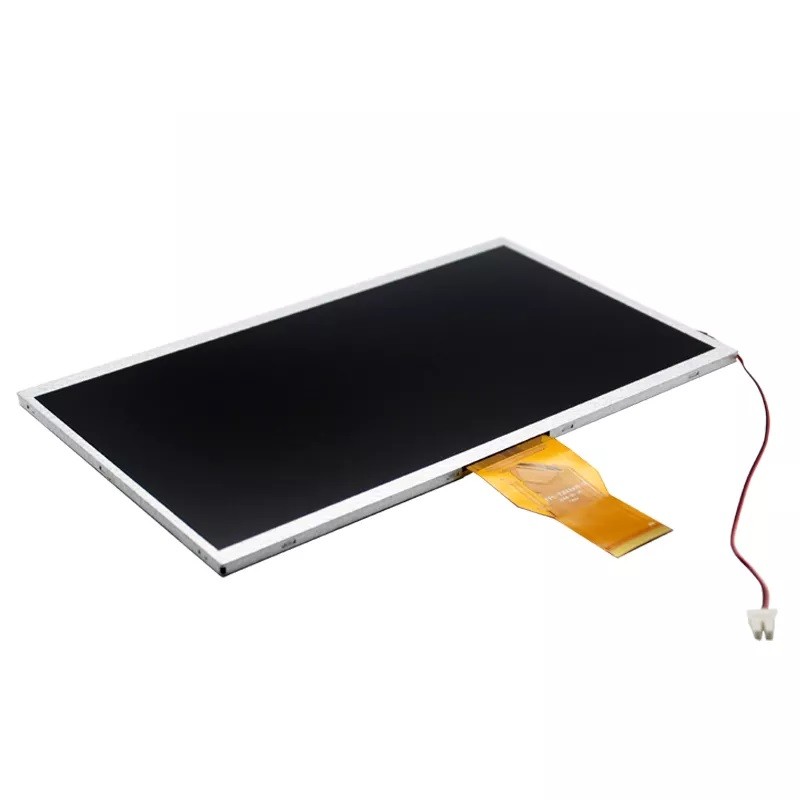

首页 产品展示 7英寸-10.4英寸 TFT LCD 10.1英寸 LCD RG101BAH-02 10.1英寸1024x600 LVDS/40PIN TF
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 10.1 | inch |
| Resolution | 1024*600 | dots |
| Pixel pitch | 0.2175(W)x 0.2088(H) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 380 | cd/m2 |
| LCM (W * H * D) | 235.00*143.00*5.00 | mm |
| Active Area (W * H ) | 222.72*125.28 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S13P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8282+HX8696 | - |
