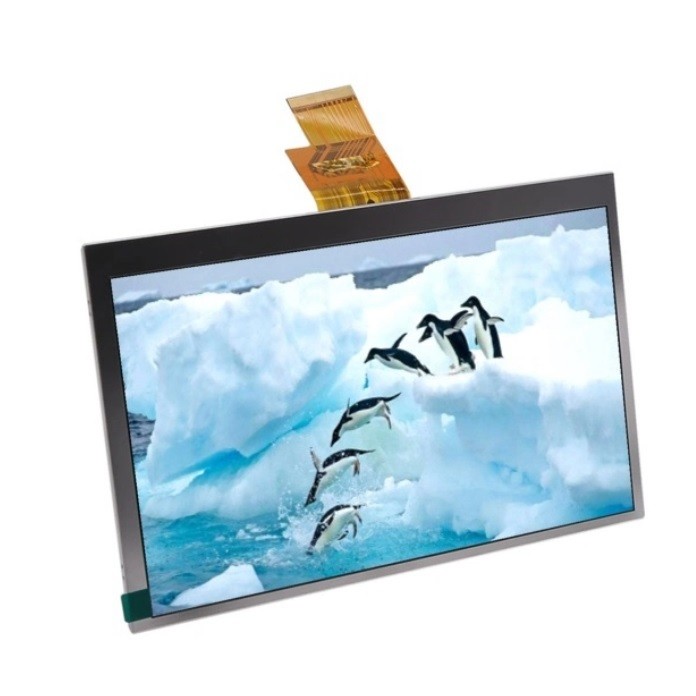

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD Rg070bqt-03 7英寸 TFT LCD 1024*600 264nit
Item | Contents |
LCD TYPE | TFT/TRANSMISSIVE |
MODULE SIZE (W*H*T) | 165.75*105.39*3.40 MM |
ACTIVE SIZE (W*H) | 153.60*90.00 MM |
PIXEL PITCH (W*H) | 0.150*0.150 MM |
NUMBER OF DOTS | 1024*600 |
DIVER IC | NT51008CH+NT52002H |
INTERFACE TYPE | LVDS |
TOP POLARIZER TYPE | ANTI-GLARE |
RECOMMEND VIEWING DIRECTION | 12 O'CLOCK |
GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK |
COLORS | 16.7M |
BACKLIGHT TYPE | 24-CHIP WHITE LED |
TOUCH PANEL TYPE | WITHOUT |
