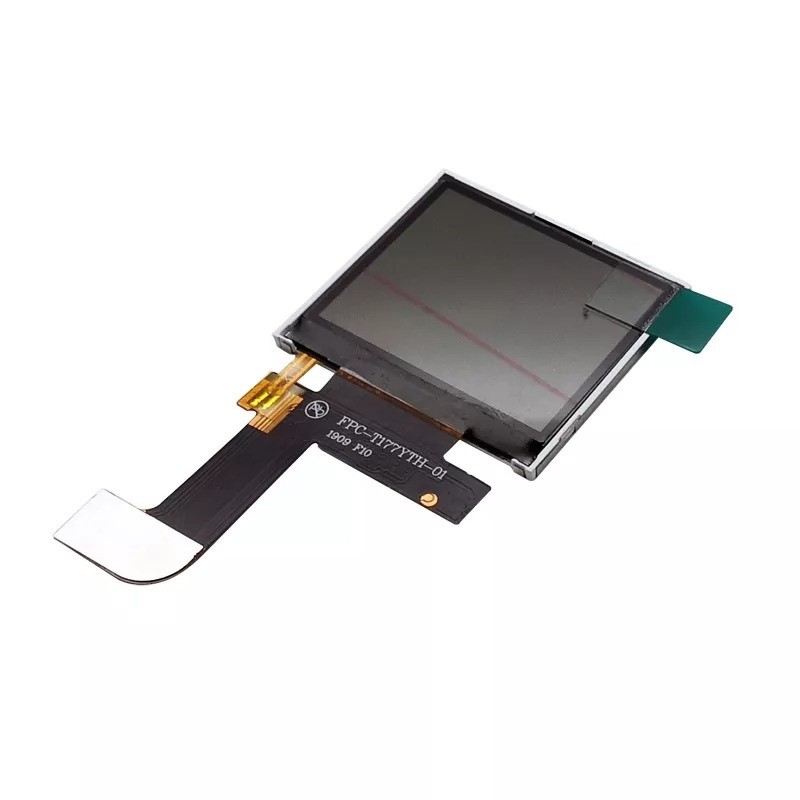

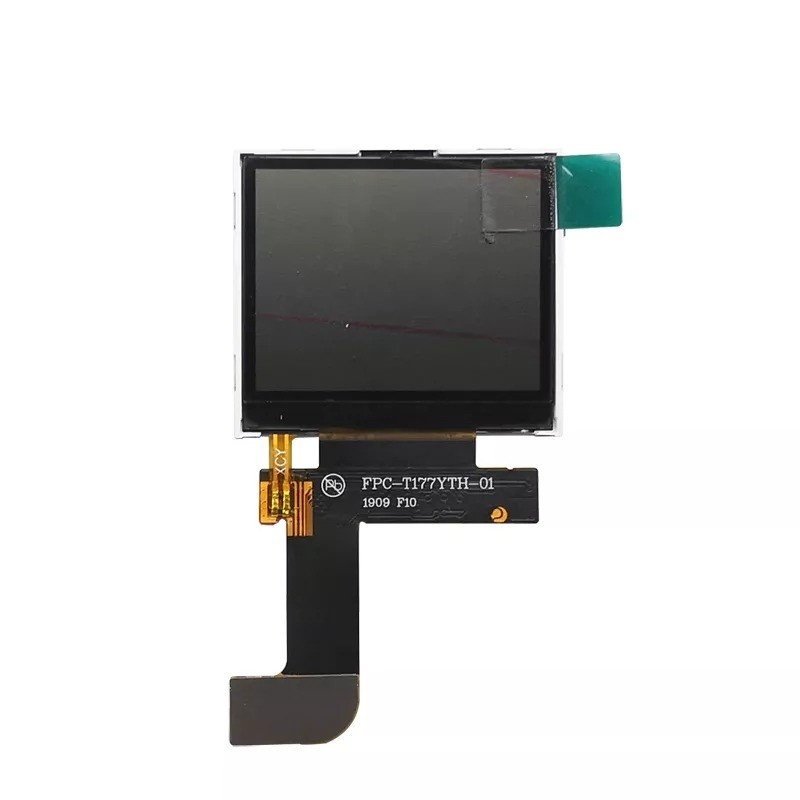

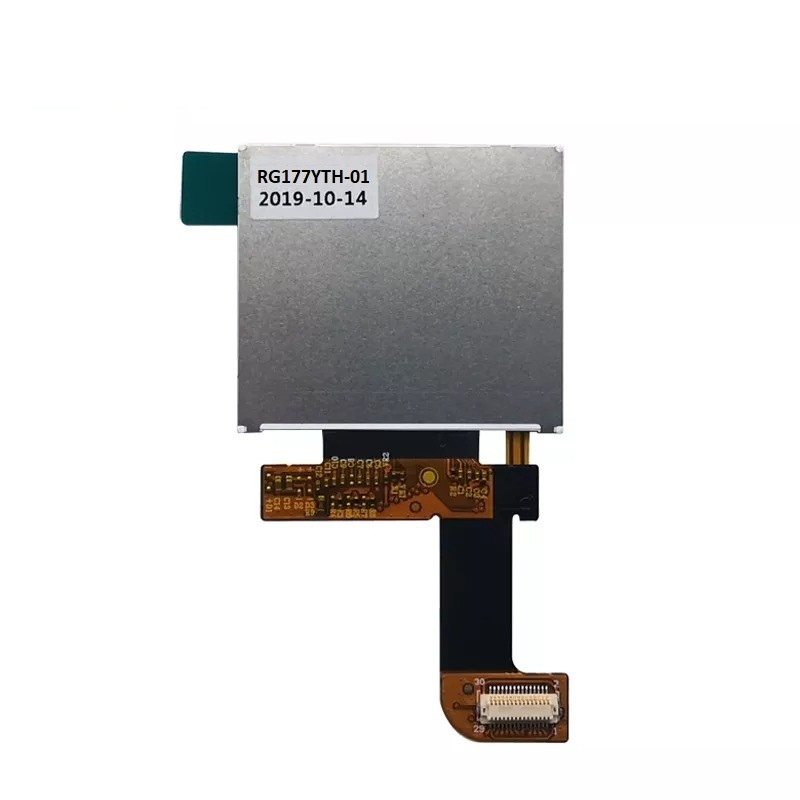

首页 产品展示 0.9英寸-1.8英寸 TFT LCD 1.77英寸 LCD RG177YTH-01 1.77英寸 128x160 TFT LCD HX834
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 1.77 | inch |
| Resolution | 160*128 | dots |
| Pixel pitch | 0.1992(H)*0.2070(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 7:50 | o'clock |
| Gray Scale Inversion Direction | - | o'clock |
| Luminance | 110 | cd/m2 |
| LCM (W * H * D) | 40.77*36.20*2.20 | mm |
| Active Area (W * H ) | 35.28*27.71 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 8/16BIT MCU | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | HX8340B | - |
