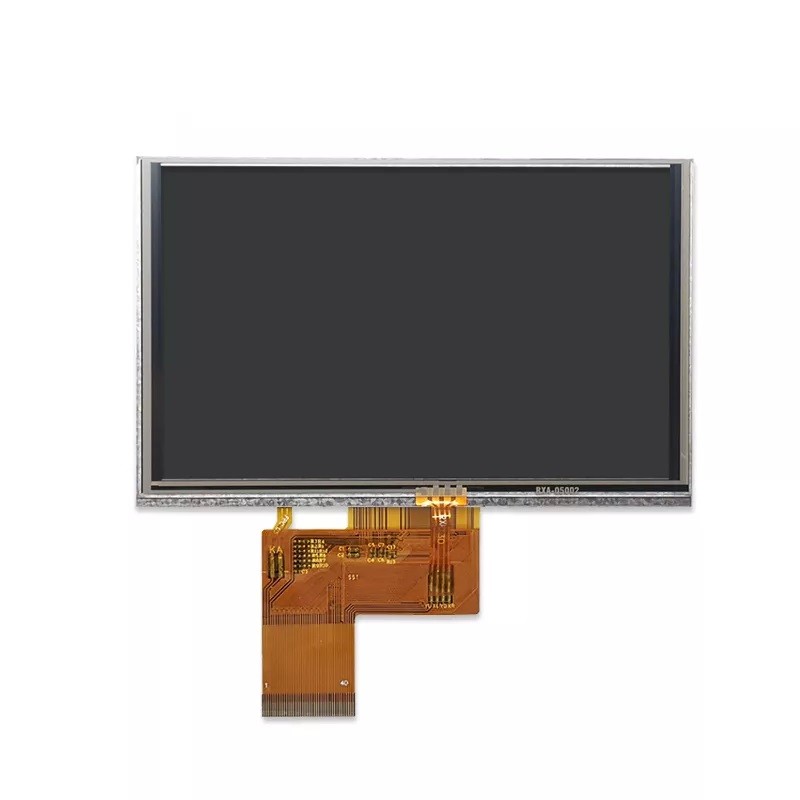

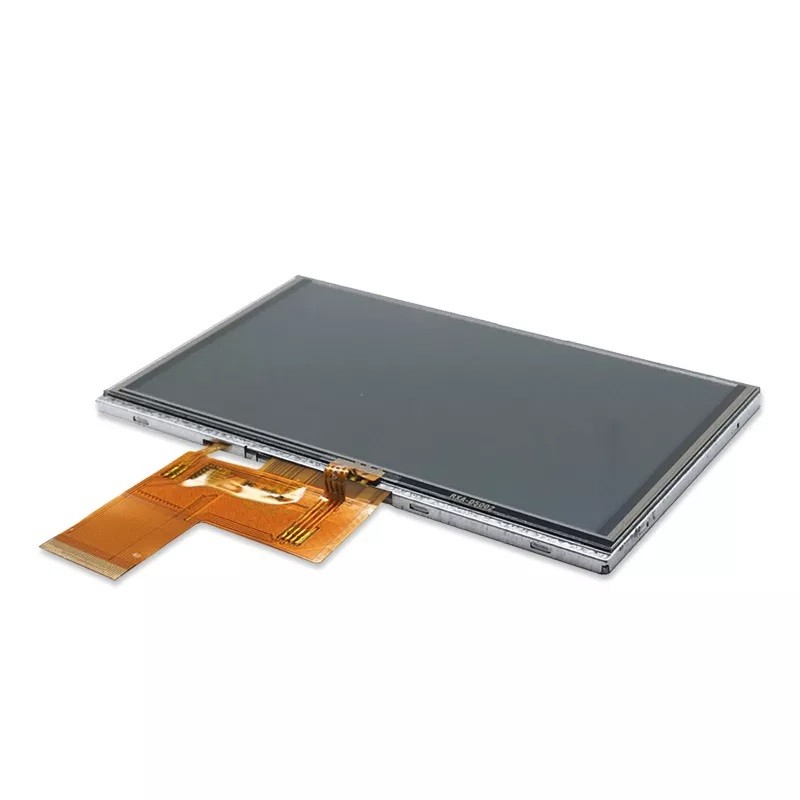

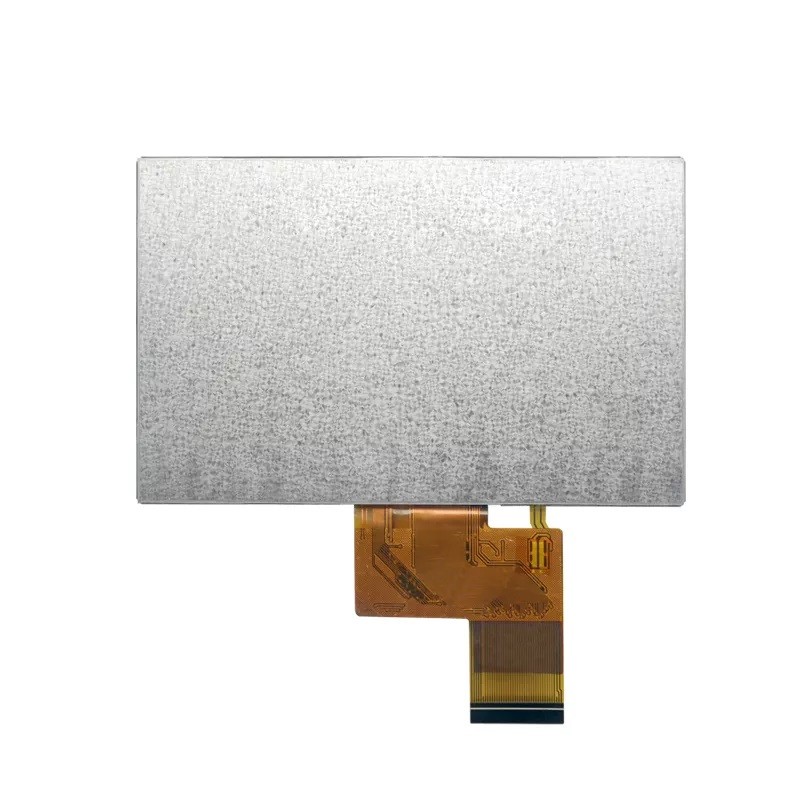

RG050BWSA-02P 5英寸800x480 TFT LCD模块ST7262

  • 产品项目 : RG050BWSA-02P
  • 类别: 5英寸 LCD
  • 分辨率: 800*(RGB)*480
  • 亮度: 350nits
  • LCM (W * H * D): 120.70*75.80*4.05mm
  • LCM驱动IC: ST7262
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 5.0 inch
Resolution 800*480 dots
Pixel pitch 0.135(H) x 0.135V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 350 cd/m2
LCM (W * H * D) 120.70*75.80*4.05 mm
Active Area (W * H ) 108.00*64.80 mm
With /Without TP With RTP -
LED Numbers 6S3P-LED pcs
Operation temperature -30~+80
Storage temperature -30~+80
Interface RGB888/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 18.0 V
Color Depth 16.7M -
LCM Driver IC ST7262 -
