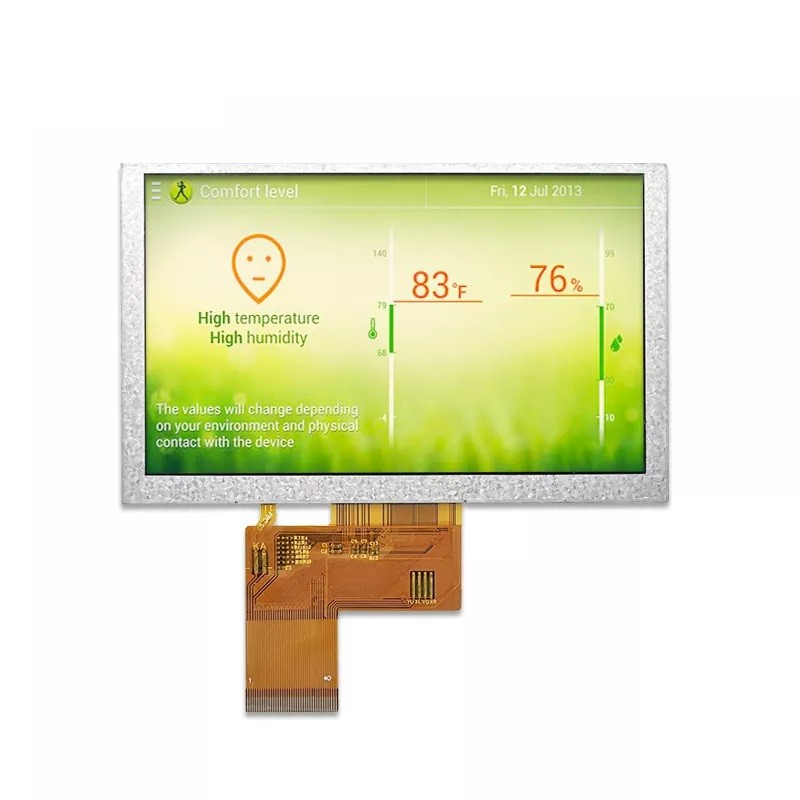

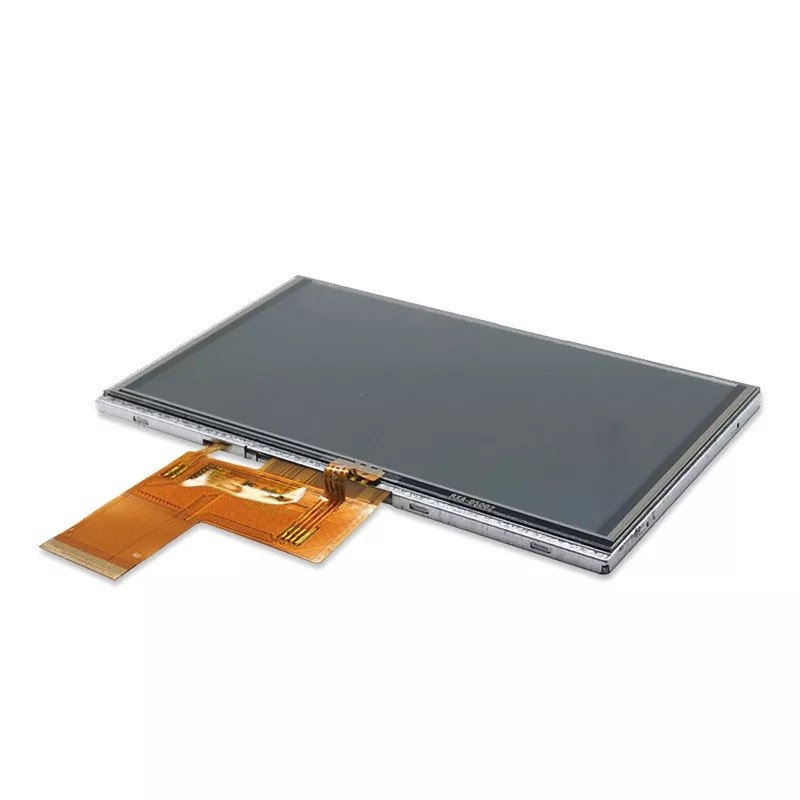

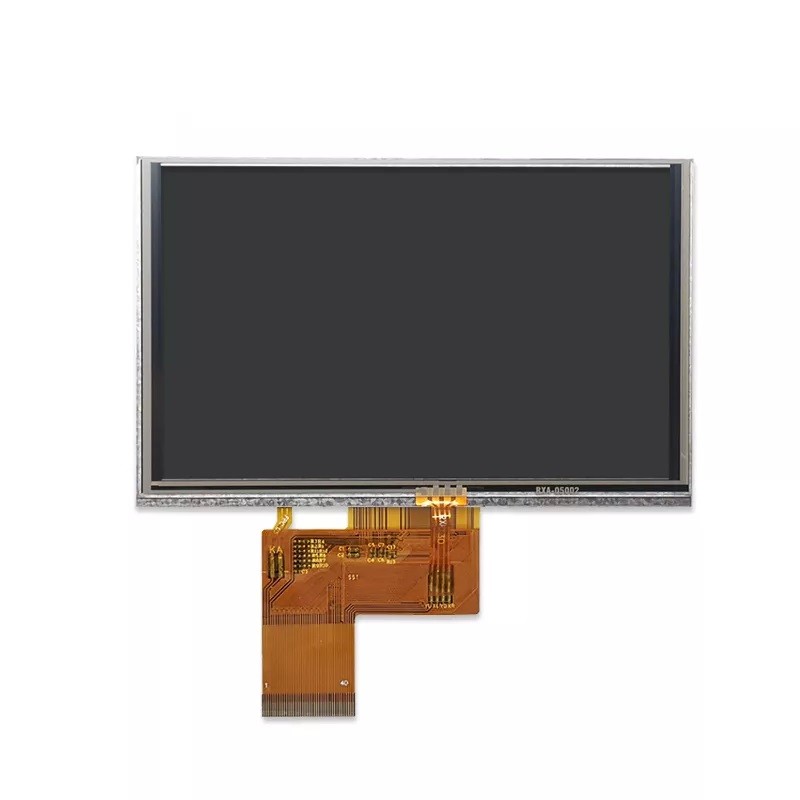

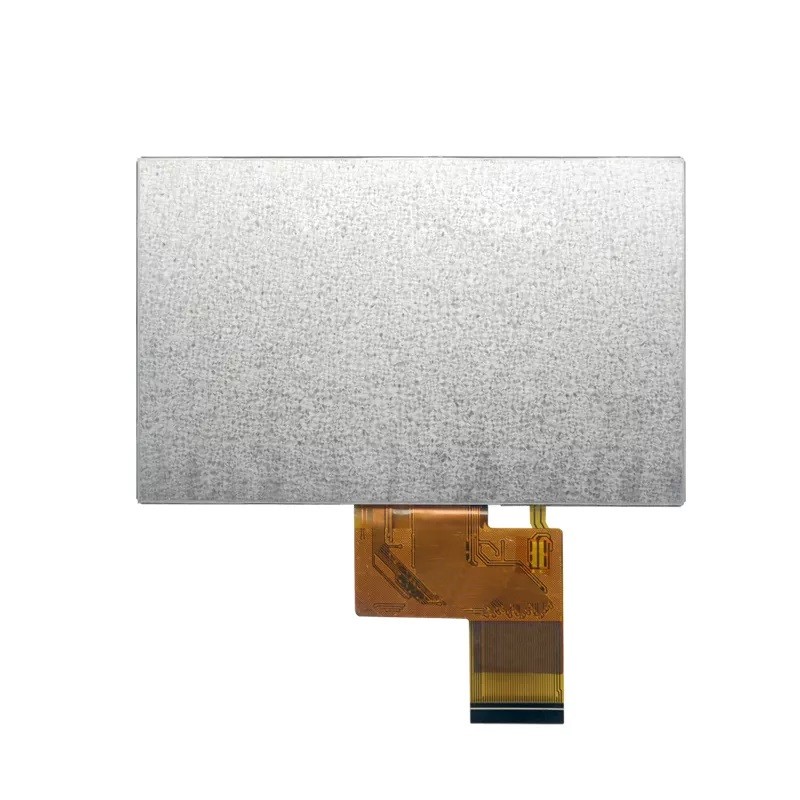

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5英寸 LCD RG050BWSA-02 5英寸 800×480 WVGA IPS LCD全视角
| Size | 5 inch |
|---|---|
| Resolution | 800*480 |
| Pixel pitch | 0.135(H) x 0.135V) |
| Display Mode | IPS/NB |
| Viewing Direction | ALL |
| Gray Scale Inversion Direction | ALL |
| Luminance | 450 cd/m2 |
| LCM (W * H * D) | 120.70*75.80*2.85 mm |
| Active Area (W * H ) | 108.00*64.80 mm |
| With /Without TP | Without TP |
| LED Numbers | 6S2P-LED pcs |
| Operation temperature | -30~+80 ℃ |
| Storage temperature | -30~+80 ℃ |
| Interface | RGB888/40PIN |
| LCM Power Supply | 3.3 V |
| LED Power Supply | 18 V |
| Color Depth | 16.7M |
| LCM Driver IC | ST7262 |
