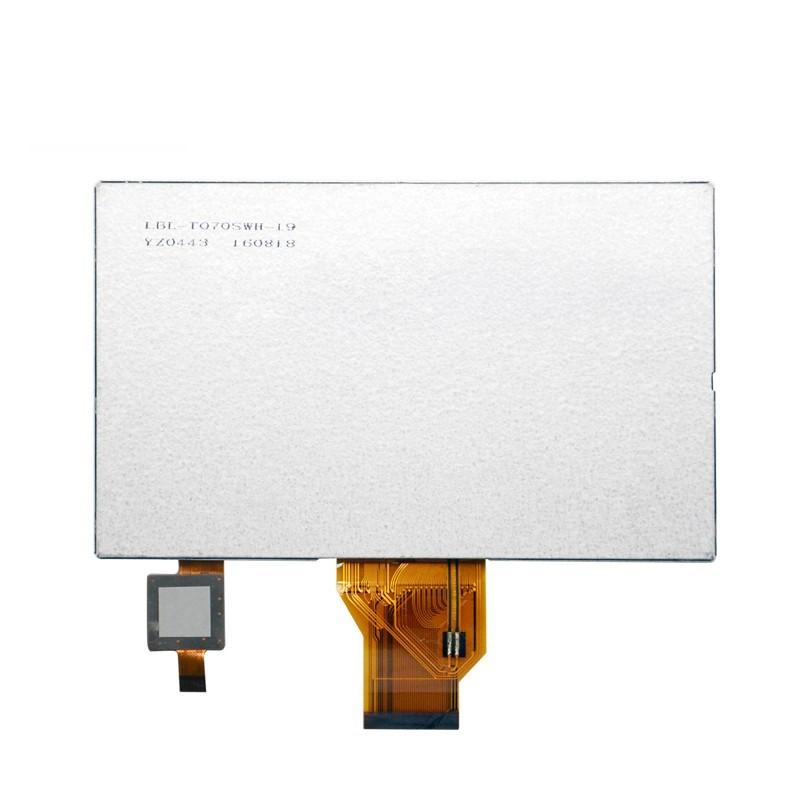

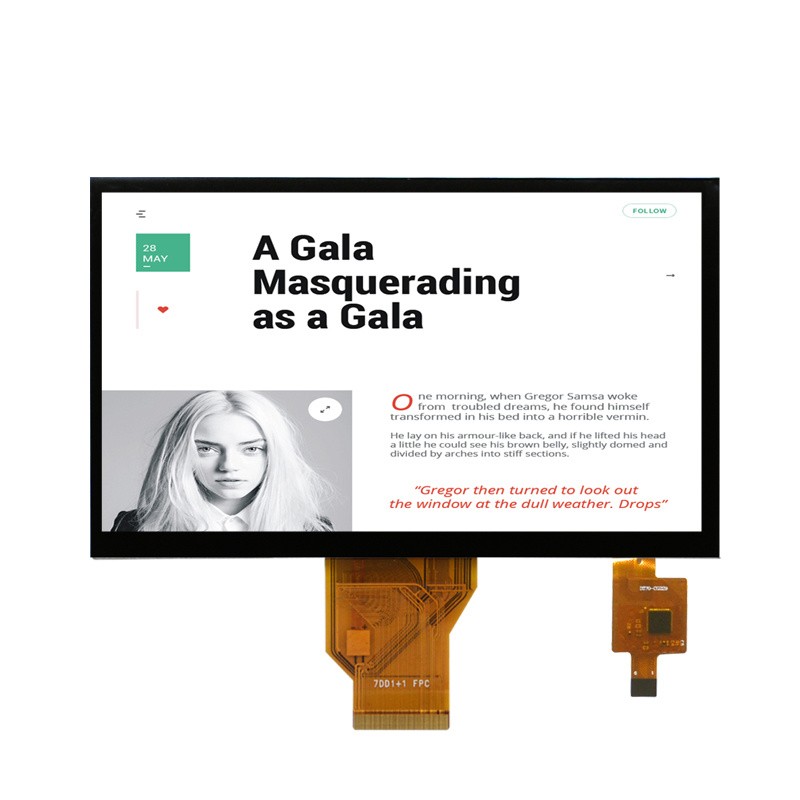

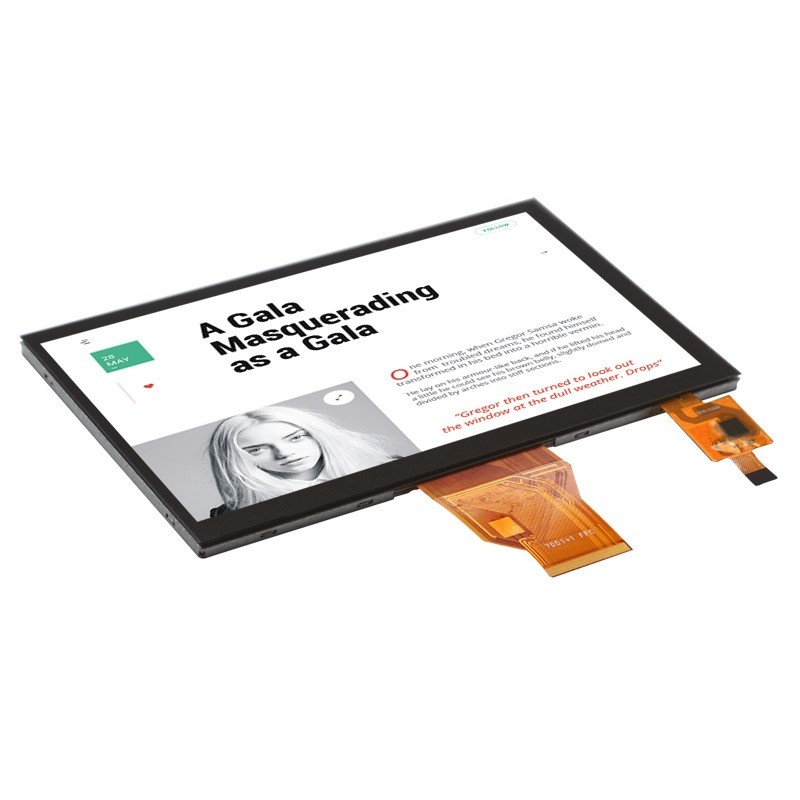

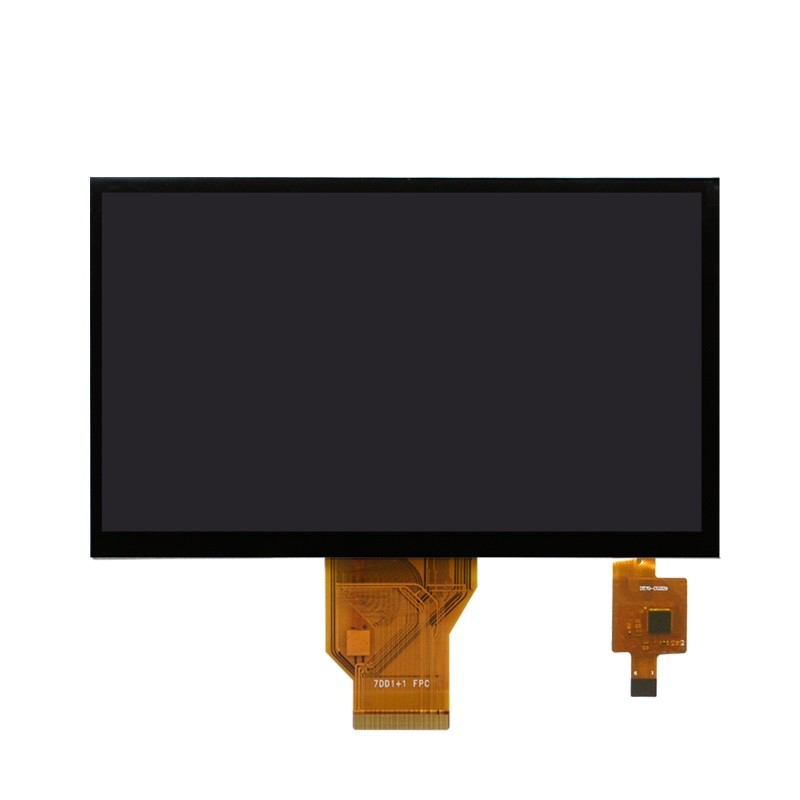

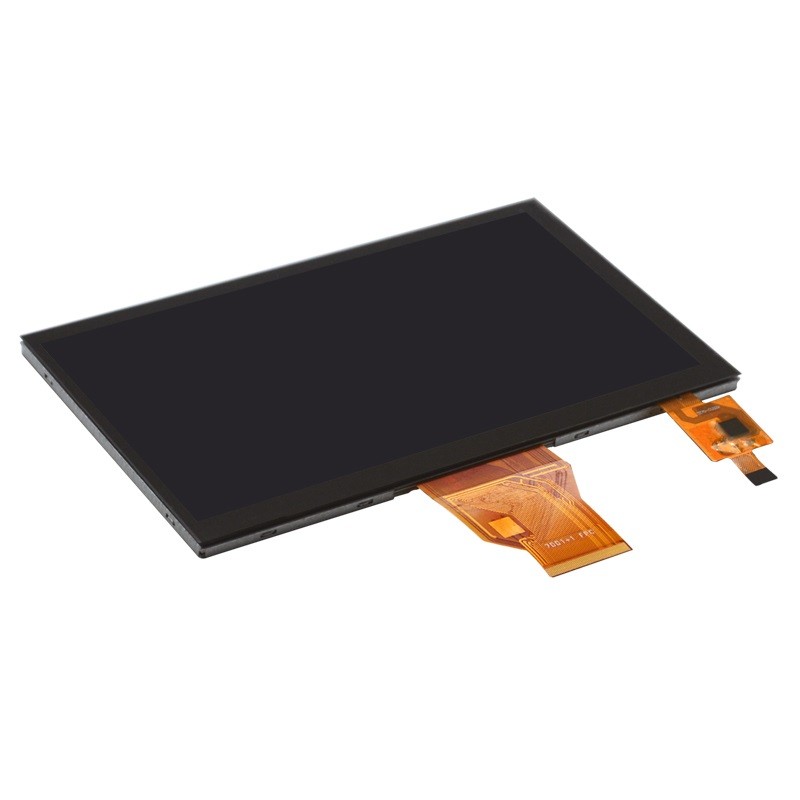

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG-T070SWH-03CP 7英寸 800x480 TFT LCD 带触摸屏

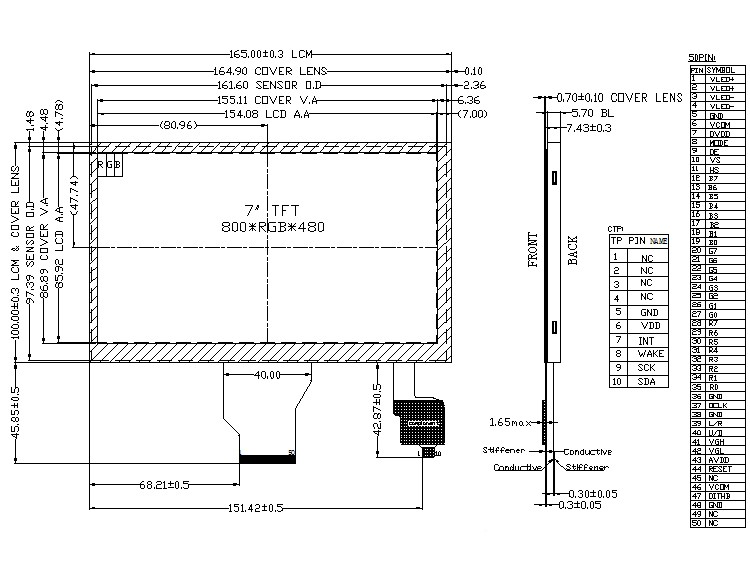

| Feature | Specification | Unit | Drawing | |
| Dispaly Spec | Brand | RONEN | - |
|
| Size | 7.0 | inch | ||
| Resolution | 800*480 | dots | ||
| Pixel Pitch | 0.1926(H)*0.1790(V) | mm | ||
| Display Mode | TN/NW | - | ||
| Viewing Direction | 12 | O'clock | ||
| Grayscale Direction | 6 | O'clock | ||
| Luminance | 420 | cd/m2 | ||
|
Mechanical
Characteristics |
LCM(W*H*D) | 165.00*100.00*7.43 | mm | |
| Active Area(W*H) | 154.08*85.92 | mm | ||
| With/Without TP | With CTP | - | ||
| LED Numbers | 3S9P-LED | pcs | ||
| Operation Temp. | -20~+70 | ℃ | ||
| Storage Temp. | -30~+80 | ℃ | ||
|
Electrical
Characteristics |
Interface | 24bit RGB/50PIN | - | |
| LCM Power Supply | 3.3 | v | ||
| LED Power Supply | 9.0 | v | ||
| Color Depth | 16.7M | - | ||
| LCM Driver IC | HX8664+HX8264 | - | ||
| CTP Driver IC | FT5426 | - | ||
