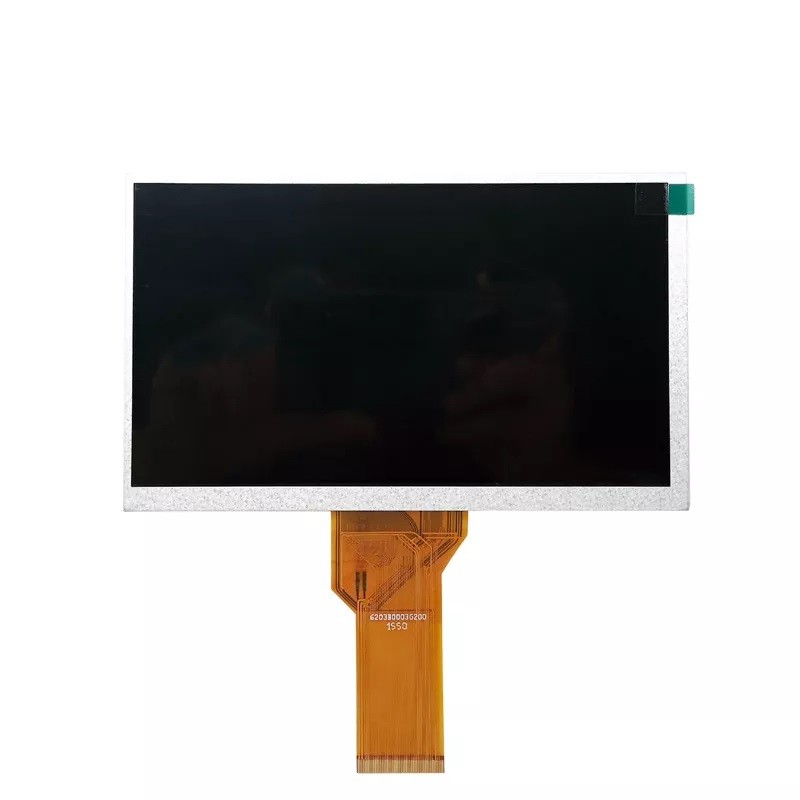

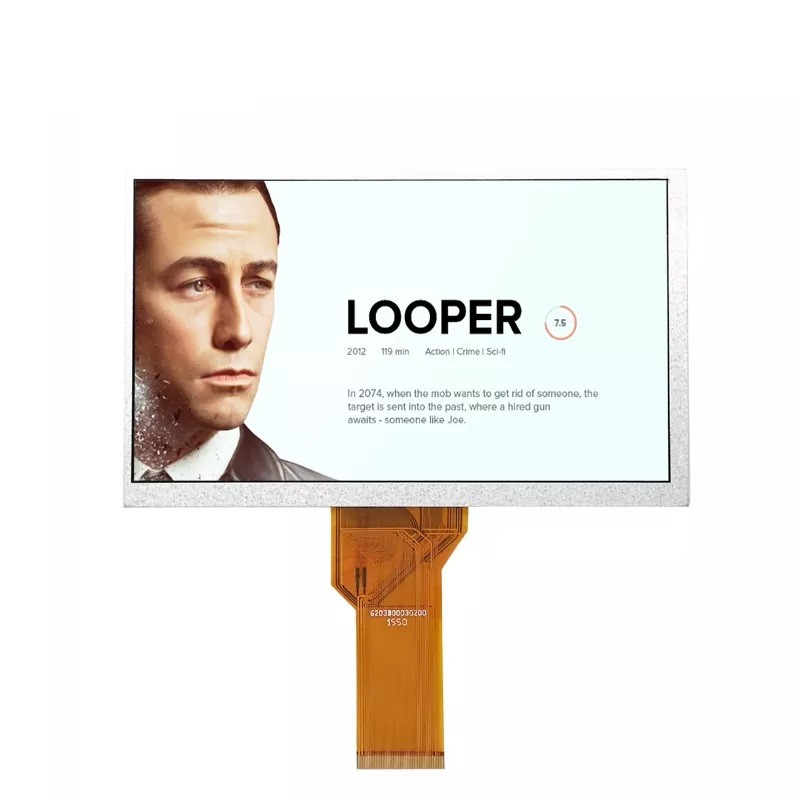

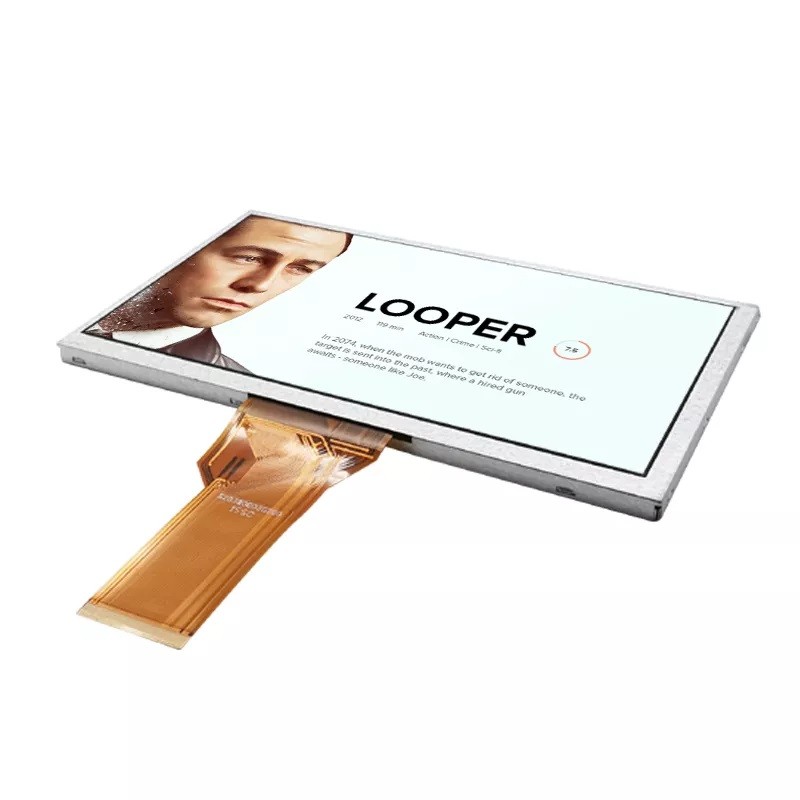

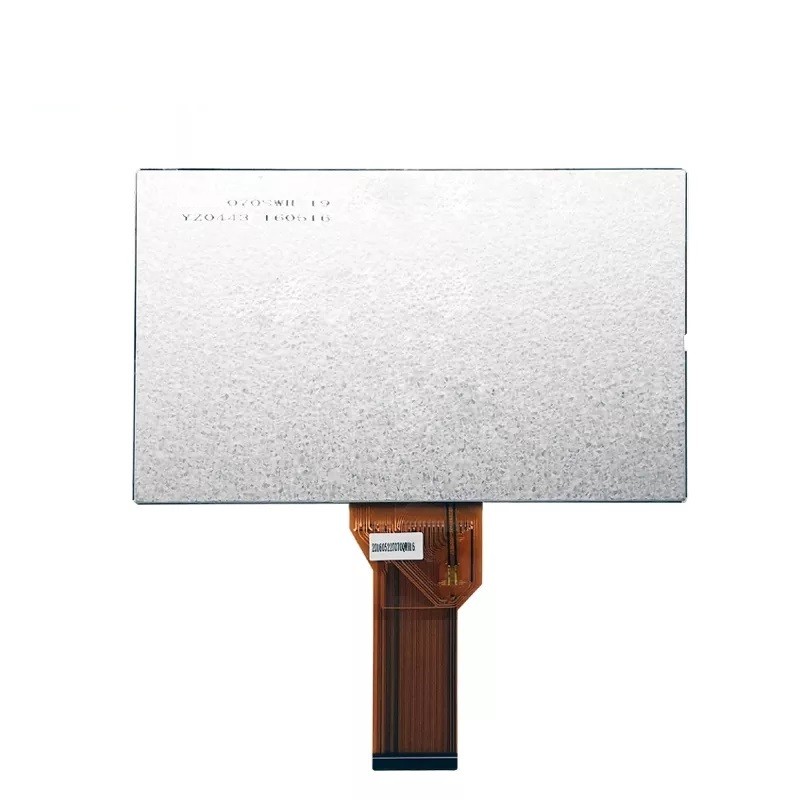

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070QWH-26 7英寸800x480宽温TFT LCD模块
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 7.0 | inch | |
| Resolution | 800*480 | dots | |
| Pixel pitch | 0.1926(H)*0.1790(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 12 | o'clock | |
| Gray Scale Inversion Direction | 6 | o'clock | |
| Luminance | 450 | cd/m2 | |
|
Mechanical Characteristics |
LCM (W * H * D) | 164.95*100.00*5.70 | mm |
| Active Area (W * H ) | 154.08*85.92 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 3S9P-LED | pcs | |
| Operation temperature | -30~+85 | ℃ | |
| Storage temperature | -30~+85 | ℃ | |
|
Electrical Characteristics |
Interface | RGB888/50PIN | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 9.0 | V | |
| Color Depth | 16.7M | - | |
| LCM Driver IC | HX8664B+HX8264E | - | |
