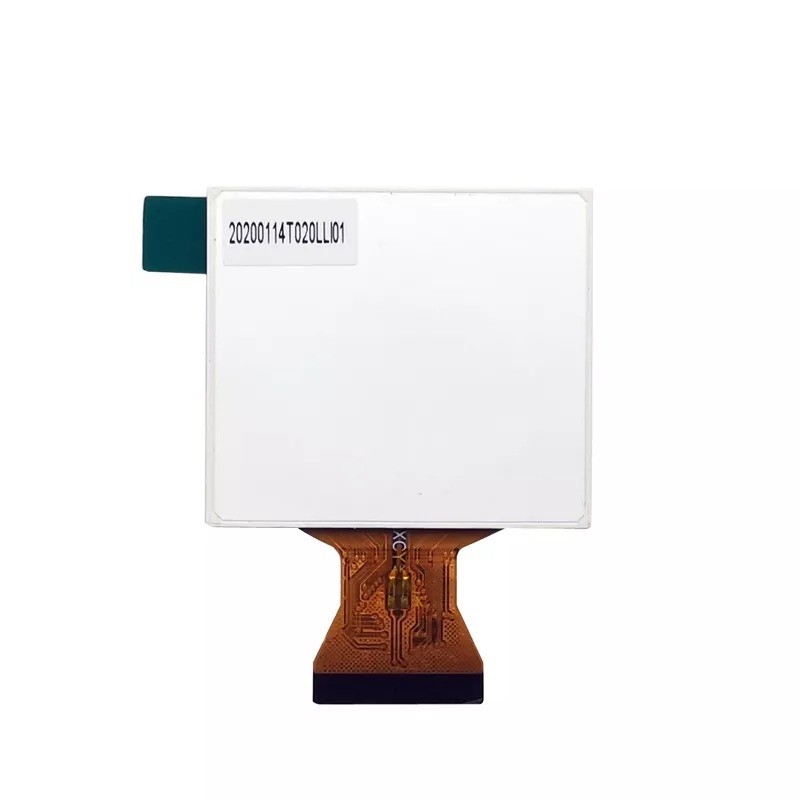

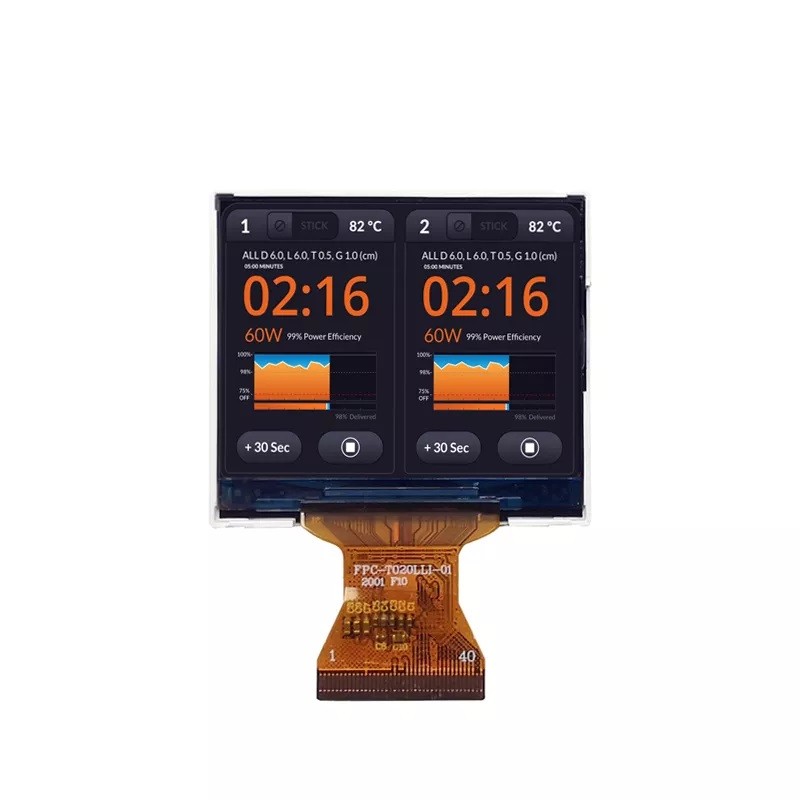

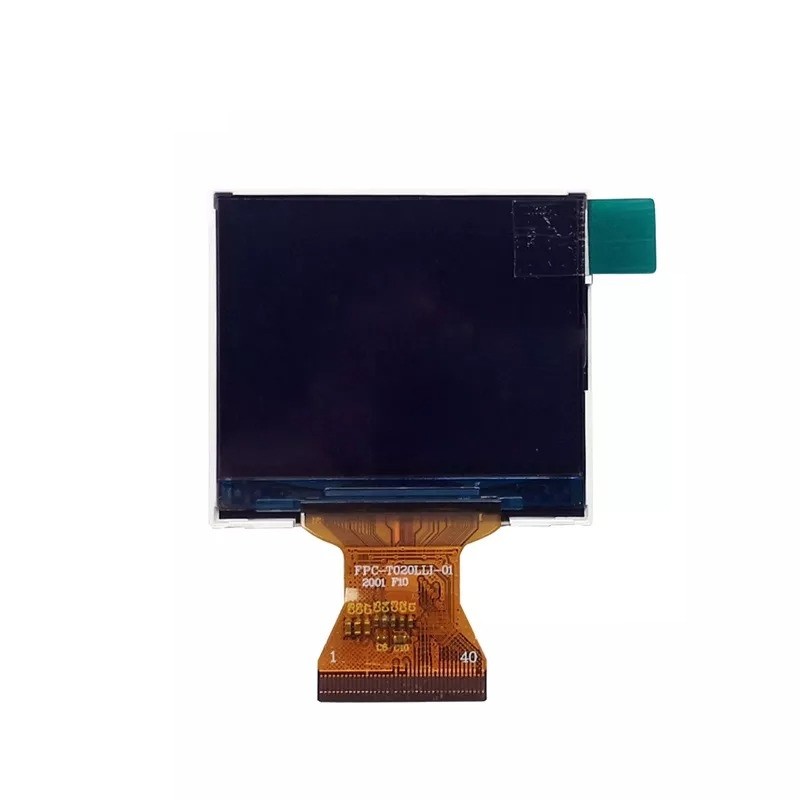

首页 产品展示 2英寸-2.8英寸 TFT LCD 2英寸 LCD RG020LLI-01 2英寸 320x240 QVGA全视角 TFT LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 2.0 | inch |
| Resolution | 320*240 | dots |
| Pixel pitch | 0.1275(H)*0.1275(V) | mm |
| Display Mode | IPS | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 46.10*40.96*2.40 | mm |
| Active Area (W * H ) | 40.80*30.60 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU/RGB/SPI | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9342C | - |
