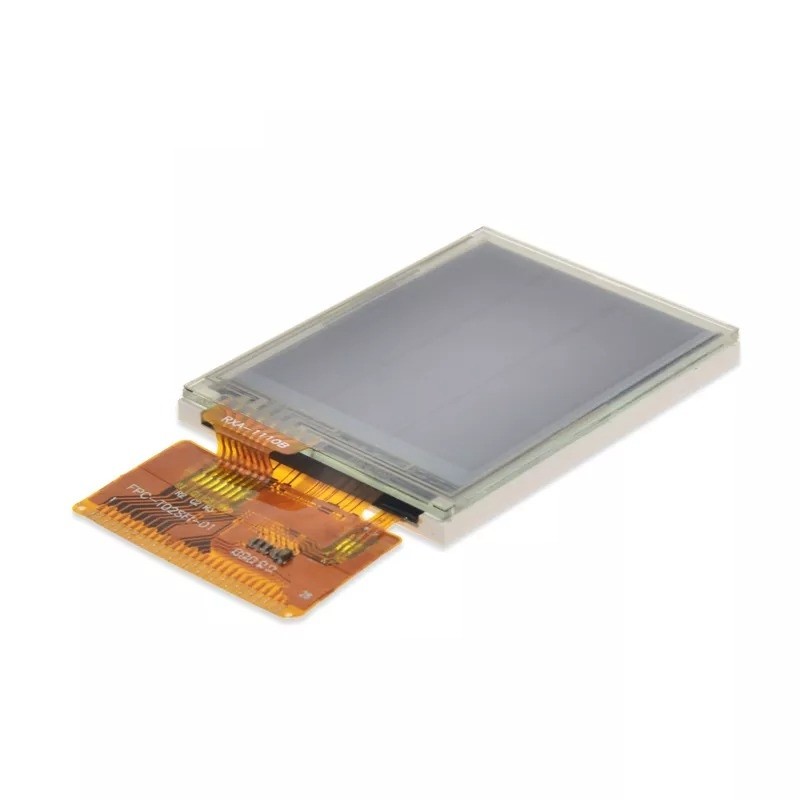

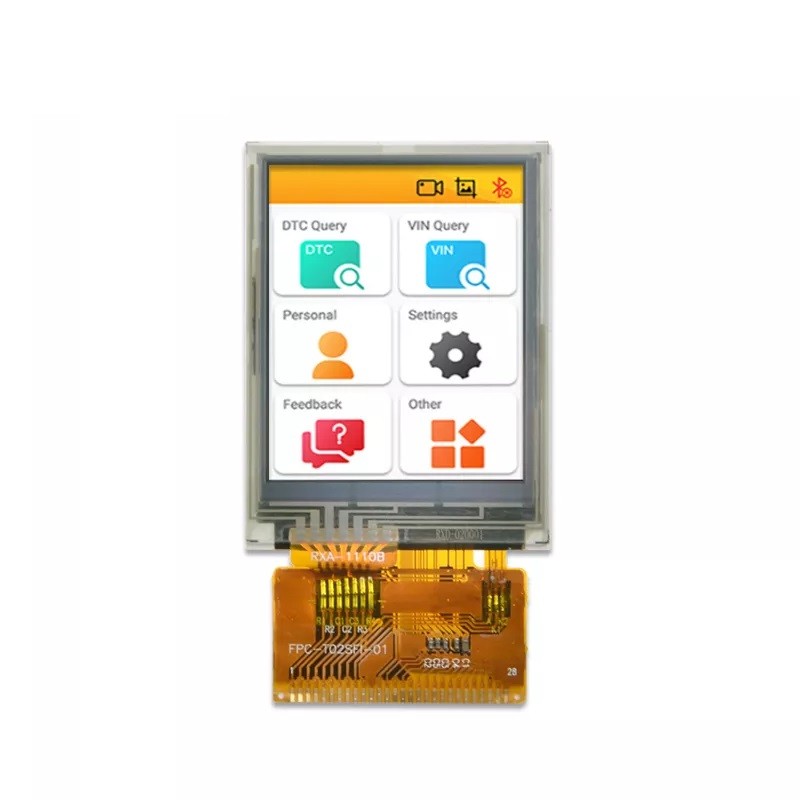

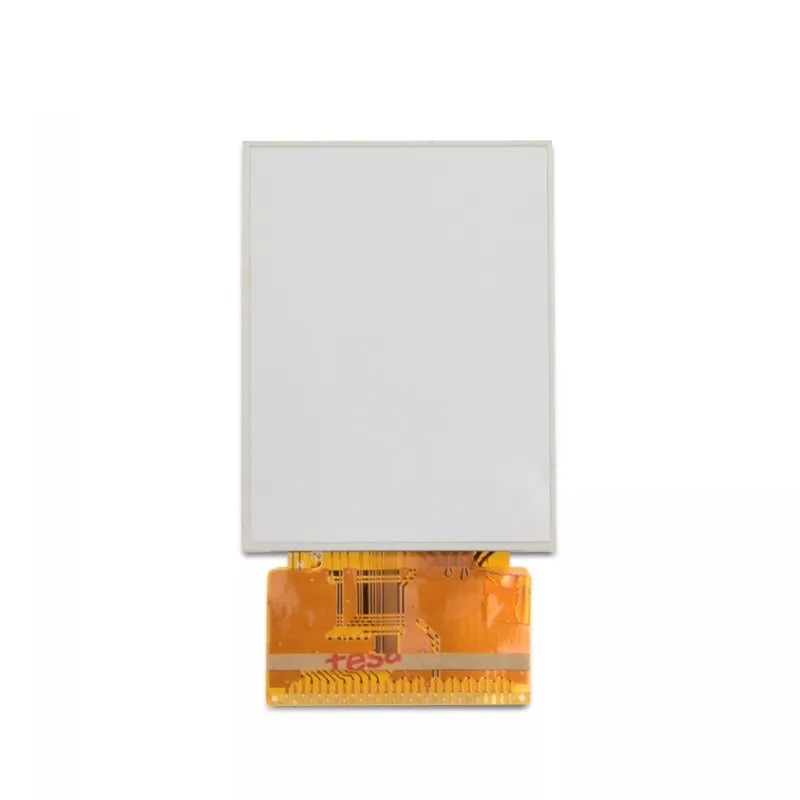

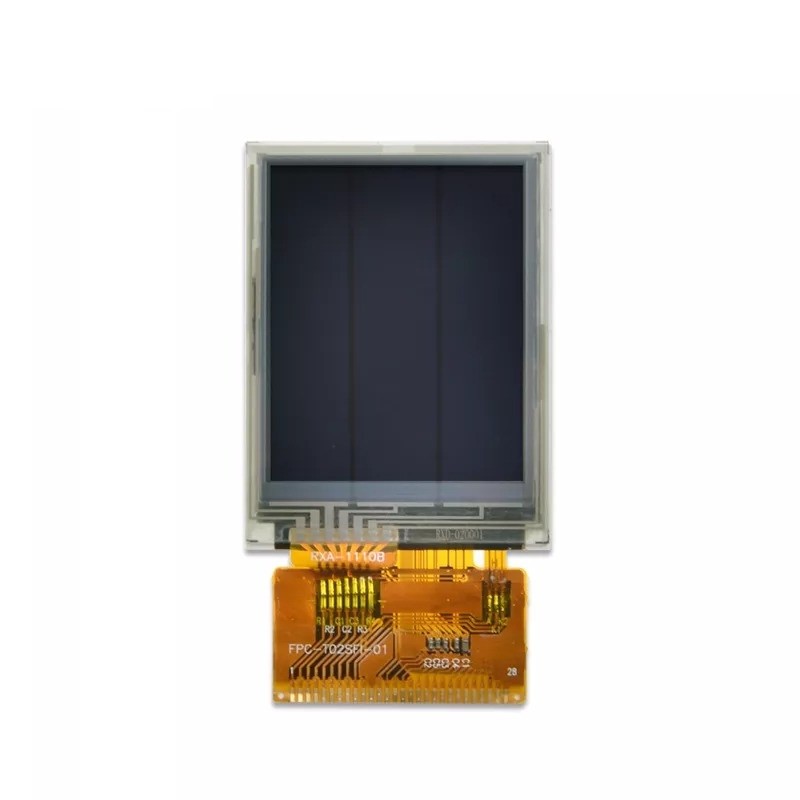

首页 产品展示 2英寸-2.8英寸 TFT LCD RG020SFI-02P 2英寸 LCD 屏 176x220 带电阻触摸屏
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 2 | inch |
| Resolution | 176*220 | dots |
| Pixel pitch | 0.18(H)*0.18(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 150 | cd/m2 |
| LCM (W * H * D) | 38.50*51.65*4.10 | mm |
| Active Area (W * H ) | 31.68*39.60 | mm |
| With /Without TP | With RTP | - |
| LED Numbers | 2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU-8bit/28PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9225G | - |
