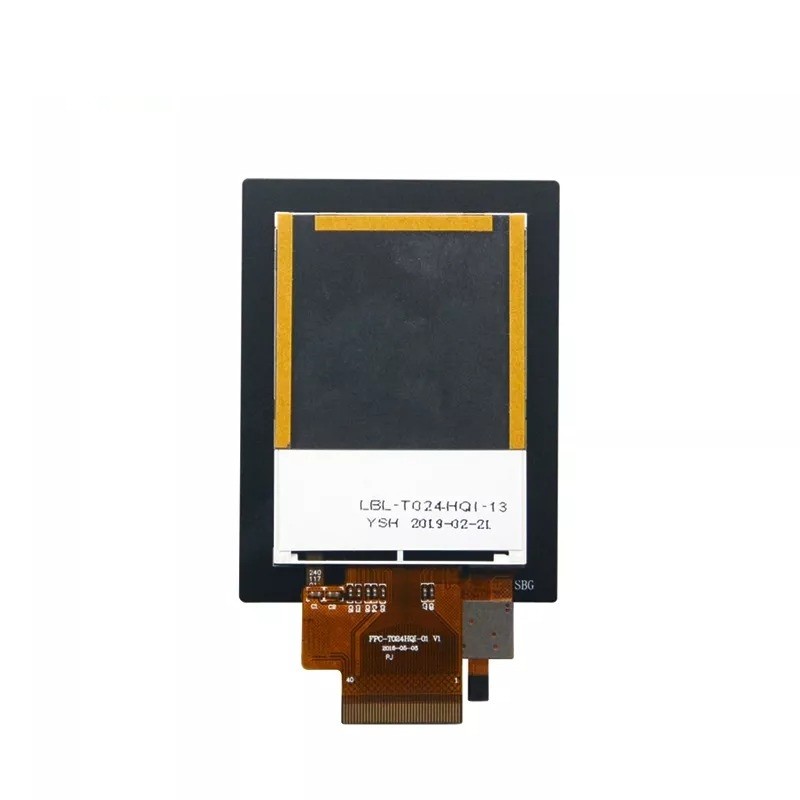

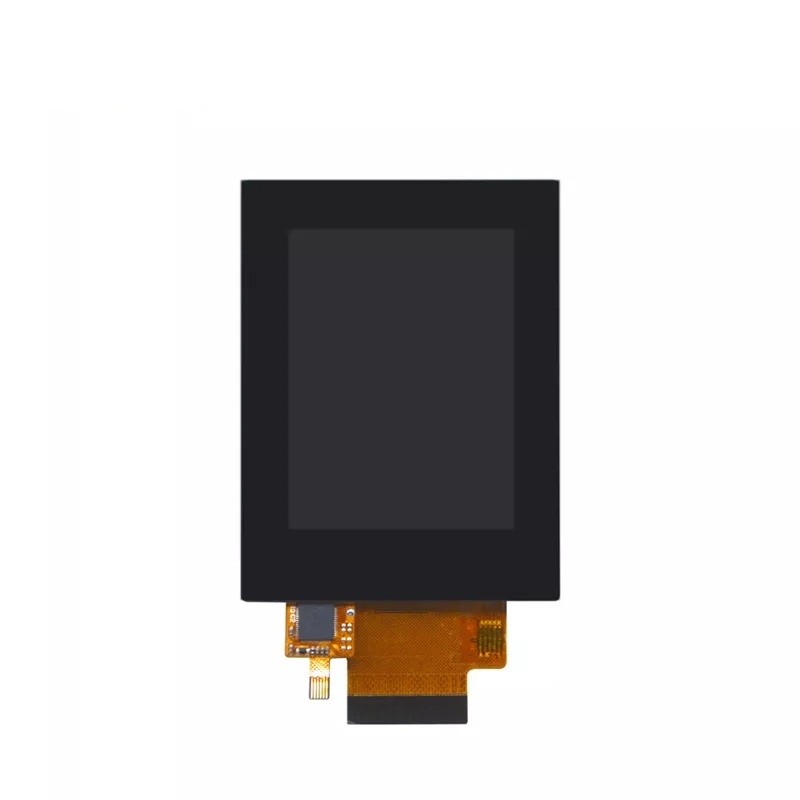

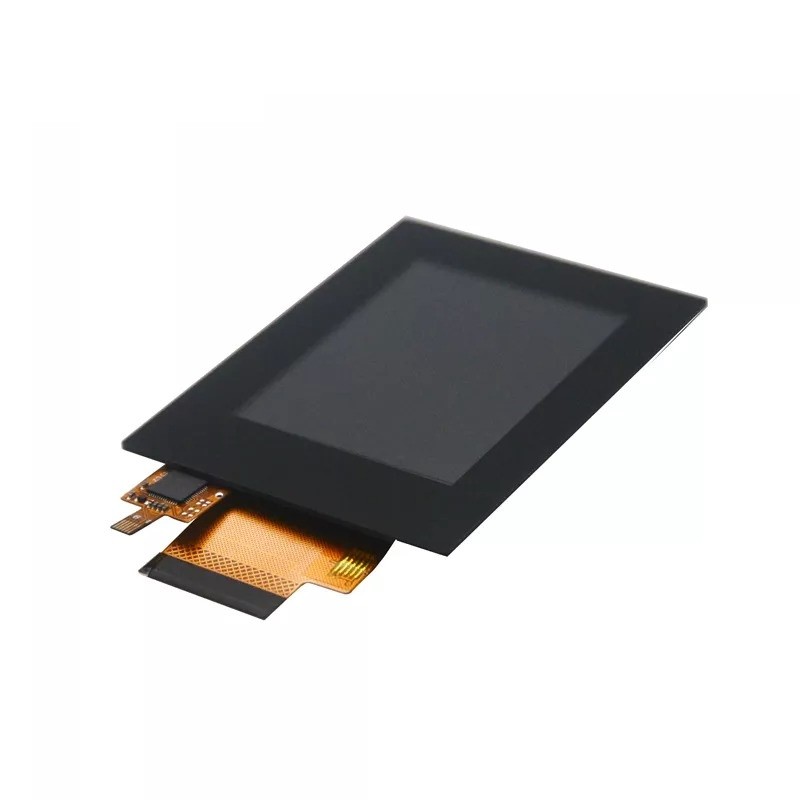

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.4英寸 LCD RG024HQI-13CP 2.4英寸 240x320 电容触摸定制屏
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 2.4 | inch |
| Resolution | 240*320 | dots |
| Pixel pitch | 0.153(H)*0.153(V) | mm |
| Display Mode | IPS | - |
| Viewing Direction | All | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 450 | cd/m2 |
| LCM (W * H * D) | 54.00*72.00*4.60 | mm |
| Active Area (W * H ) | 36.72*48.96 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 2S3P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU/RGB/SPI | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 6.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9341V | - |
| CTP Driver IC | FT5346 | - |
