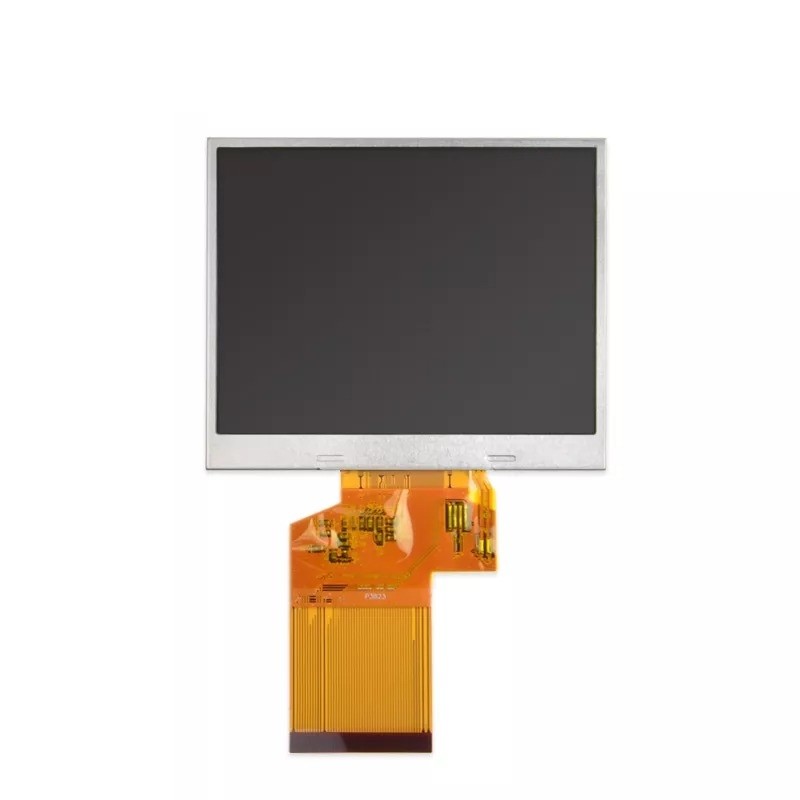

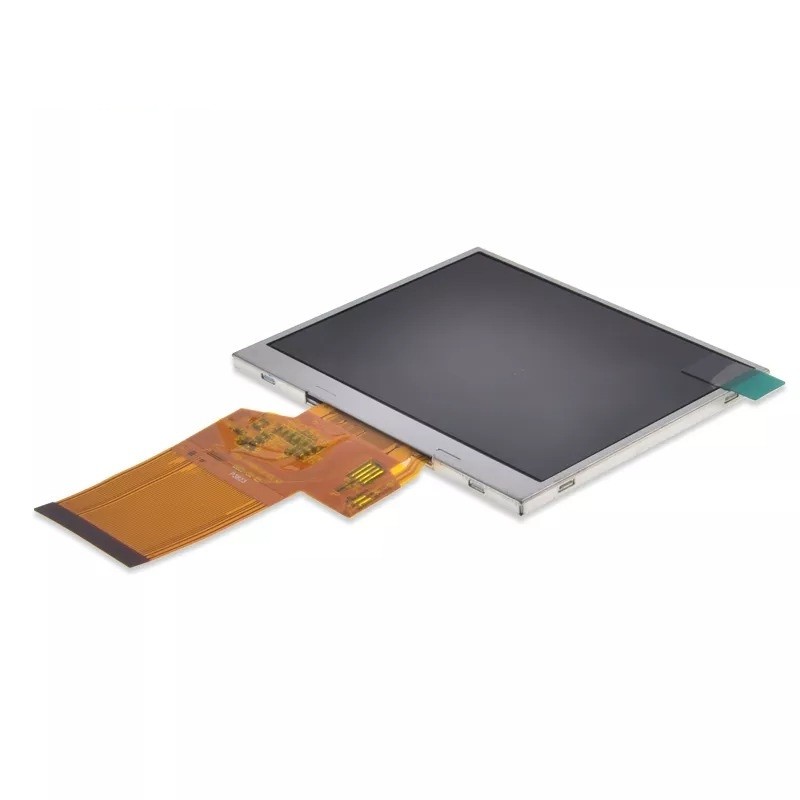

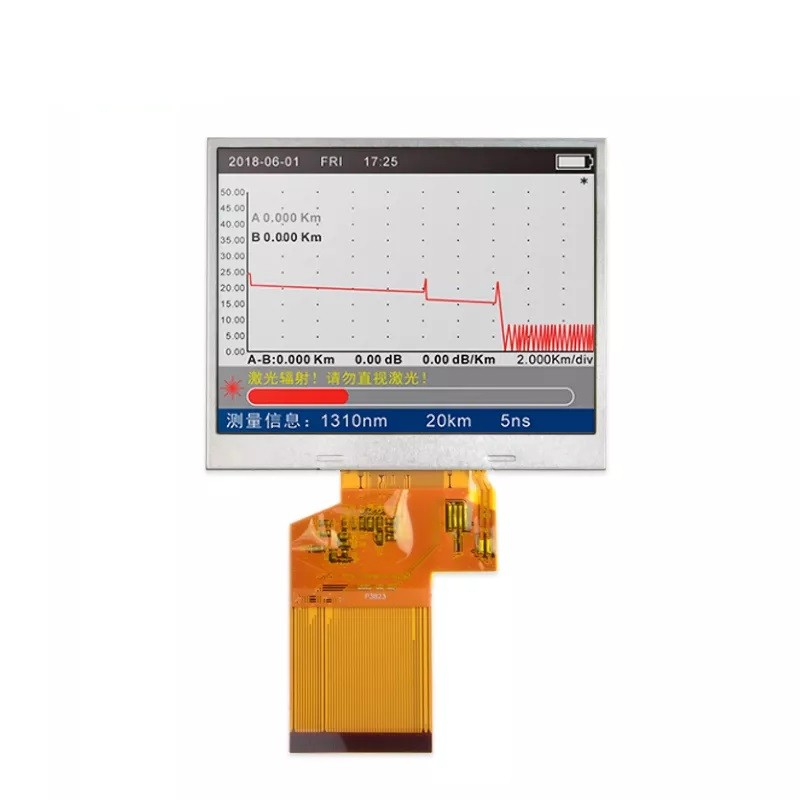

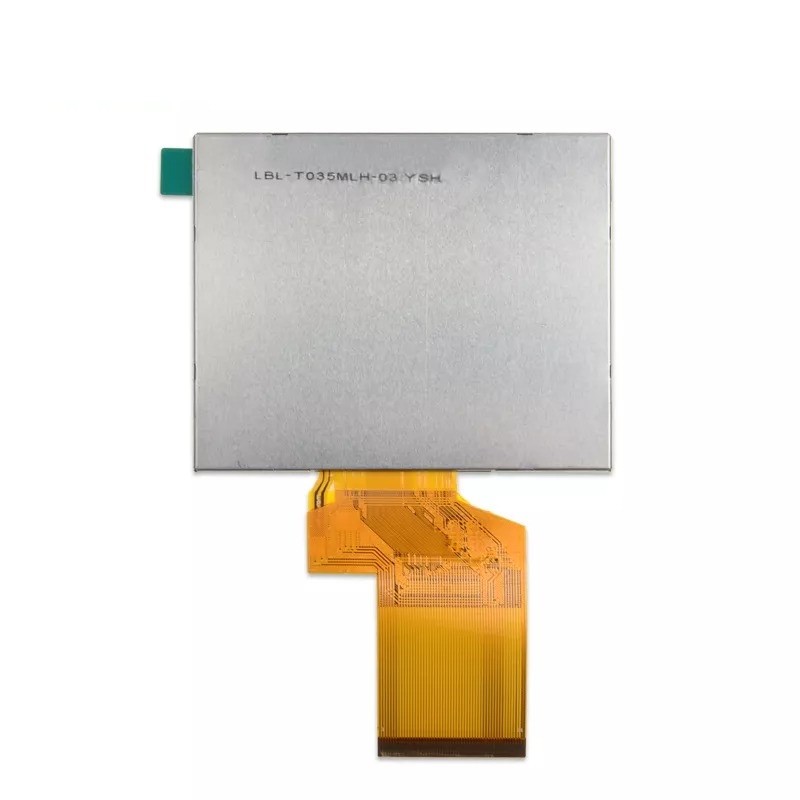

  • RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块
  • RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块
  • RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块
  • RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块
RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块

RG035GLH-01 3.5英寸QVGA 320x240 HX8238D TFT LCD模块

  • 产品项目 : RG035GLH-01
  • 类别: 3.5英寸 LCD
  • 分辨率: 320*(RGB)*240
  • 亮度: 350nits
  • LCM (W * H * D): 572.9×63.9×3.05mm
  • LCM驱动IC: HX8238D
  • 询价   邮件
产品描述:

Item

Contents

Unit

Note

LCD Type

TFT

-


Display color

262K


1

Viewing Direction

6

O’Clock


Gray scale inversion direction

12

O’Clock


Operating temperature

-20~+70


Storage temperature

-30~+80


Module size

572.9×63.9×3.05

mm

2

Active Area(W×H)

70.1×52.6

mm


Number of Dots

320×240

dots


Controller

HX8238D

-


Power Supply Voltage

2.8

V


Backlight

6S-LEDs (white)

pcs


Weight

-

g


Interface

RGB888

-
