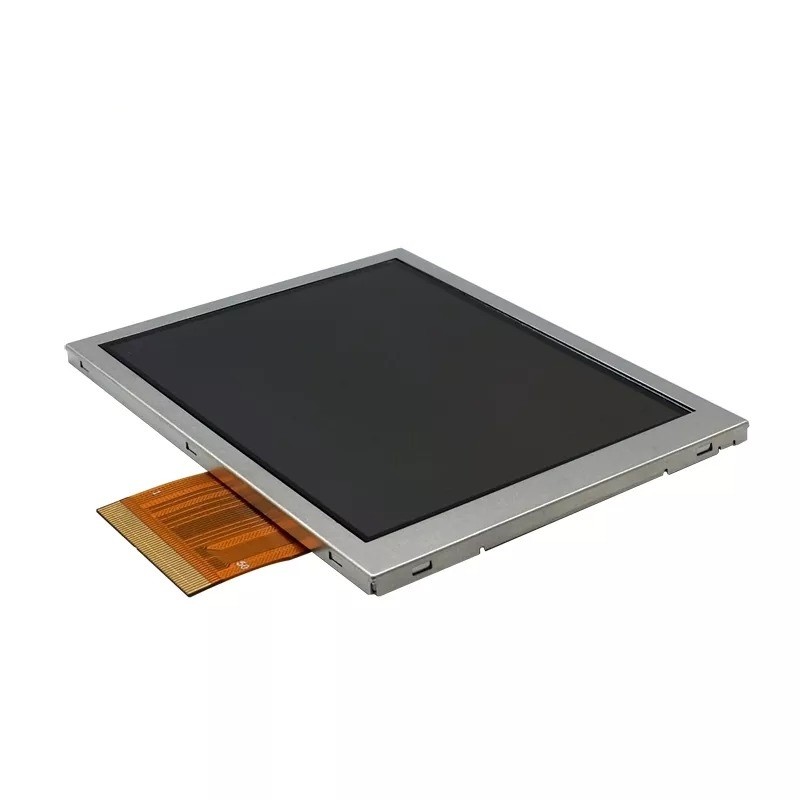

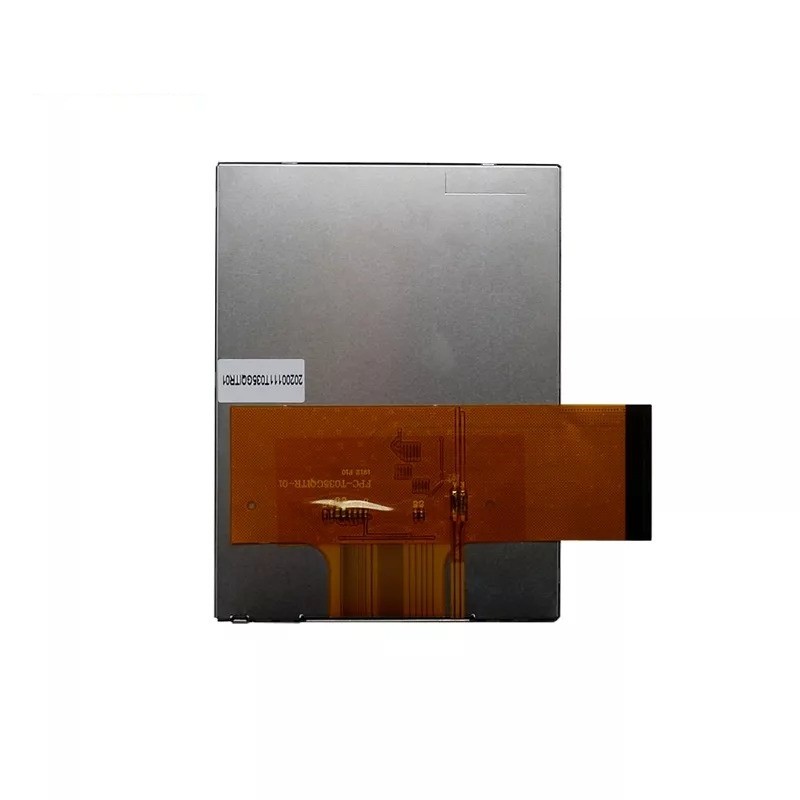

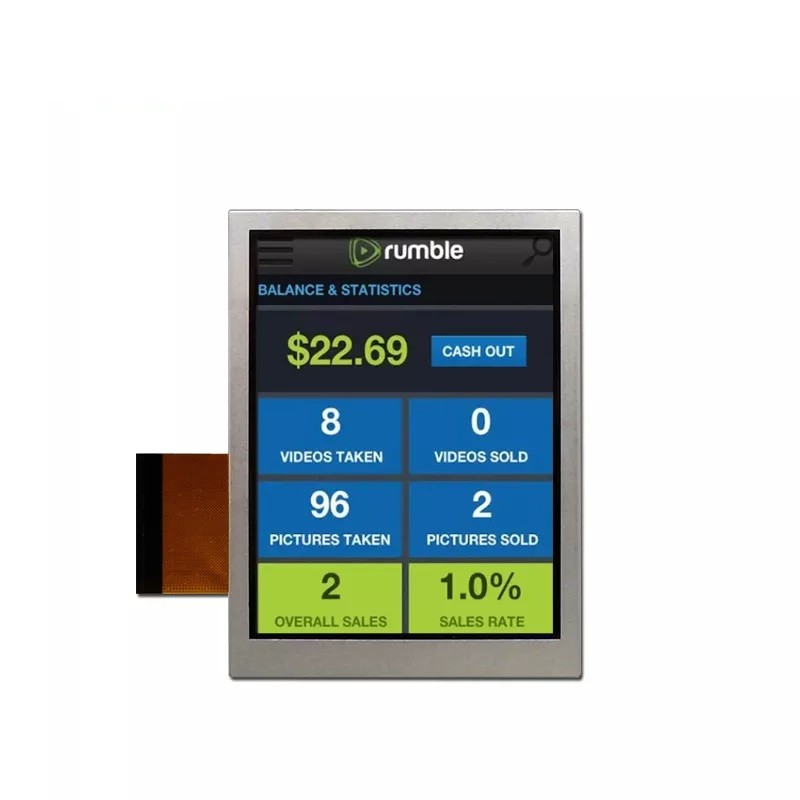

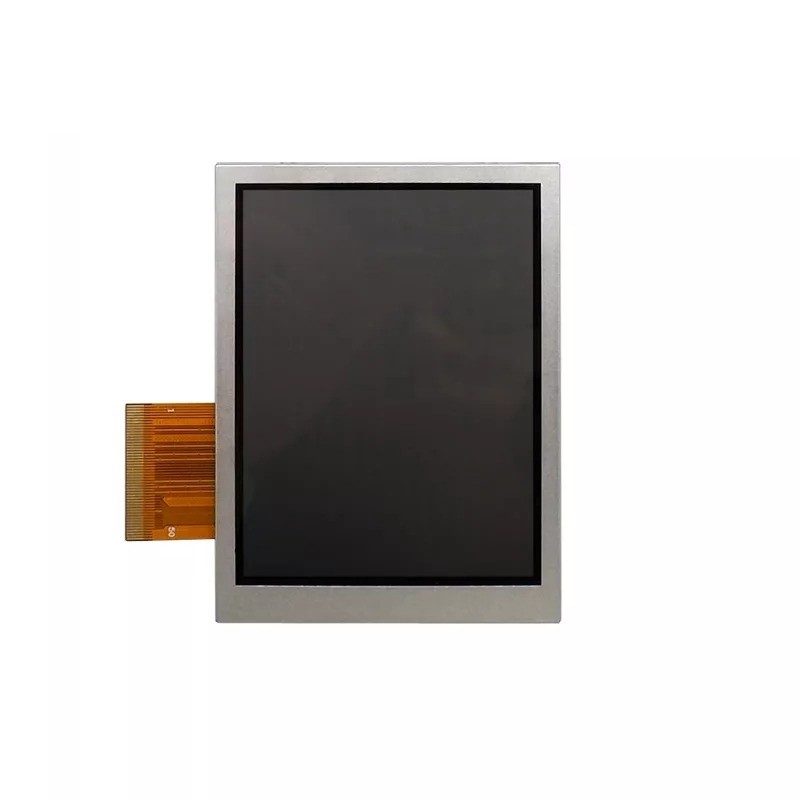

首页 产品展示 3英寸-4英寸 TFT LCD 3.5英寸 LCD RG035GQITR-01 3.5英寸 240x320 ILI9341V 反射式
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.5 | inch |
| Resolution | 240*320 | dots |
| Pixel pitch | 0.2235(H)* 0.2235(V) | mm |
| Display Mode | TN/NWbn | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 100.0 | cd/m2 |
| LCM (W * H * D) | 64.00*85.00*2.93 | mm |
| Active Area (W * H ) | 53.64*71.52 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 6S-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 18BIT RGB/SPI | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 18.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9341V | - |
