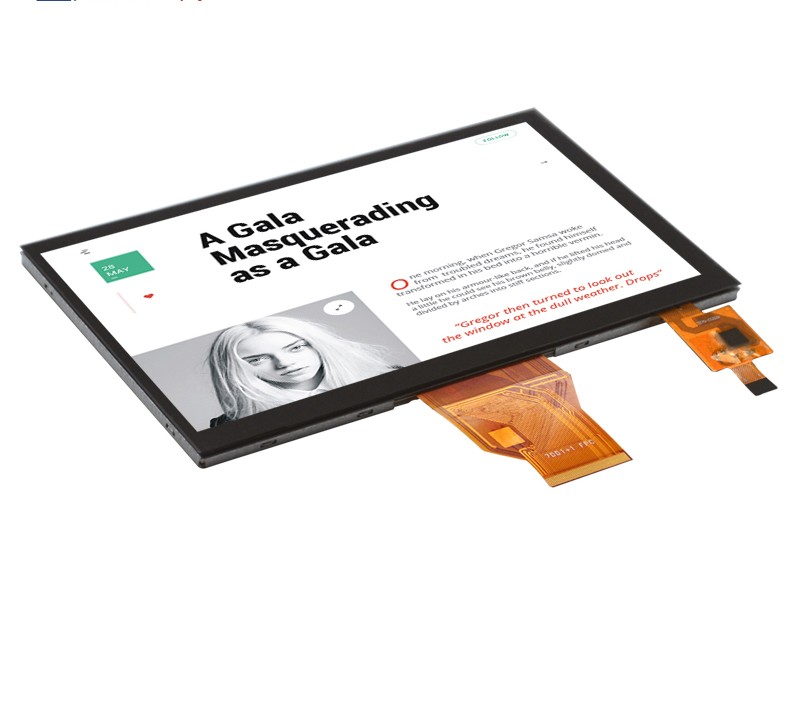

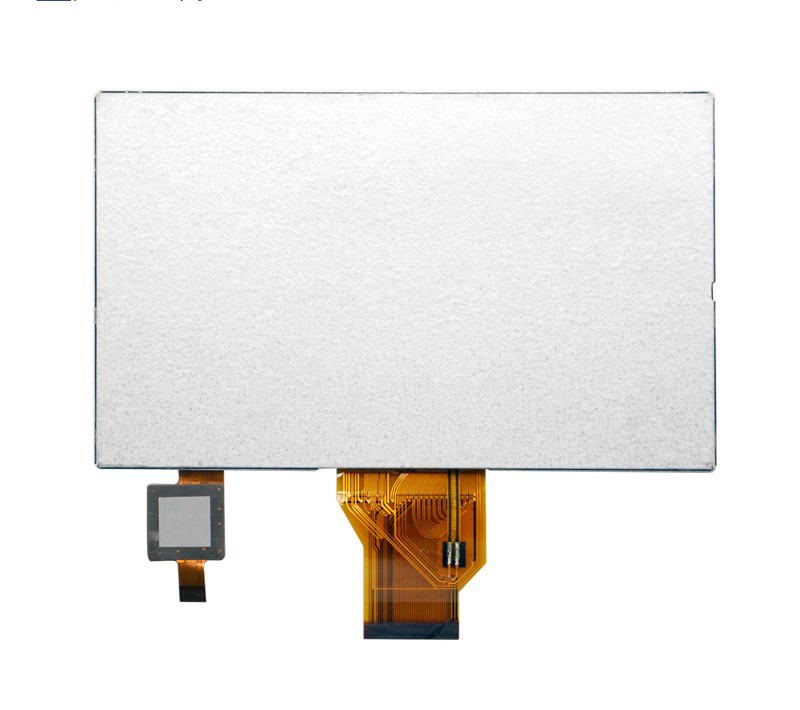

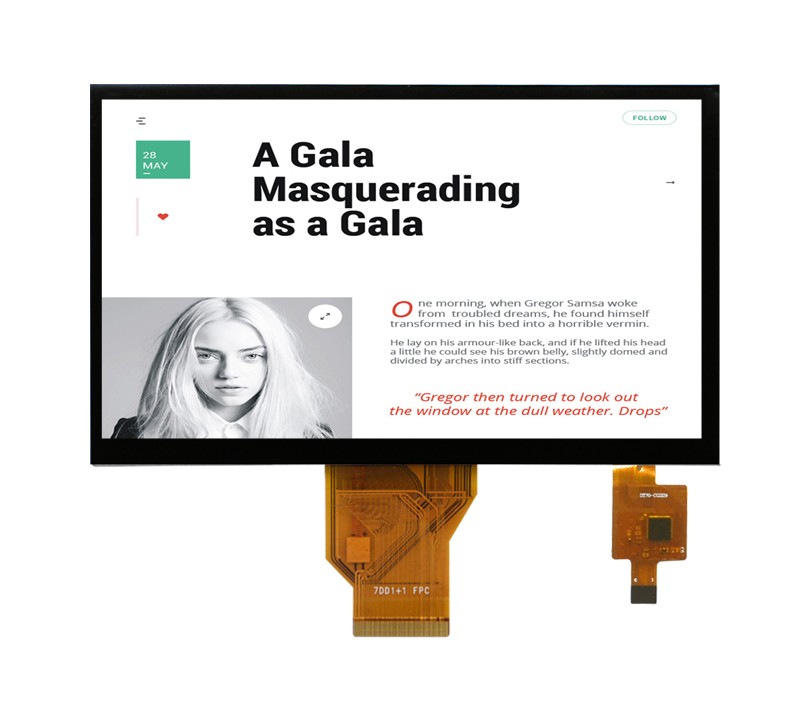

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070QWH-94CP 7英寸800x480带电容触摸屏TFT LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 7.0 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.1926(H)*0.1790(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 360 | cd/m2 |
| LCM (W * H * D) | 164.95*100.00*7.45 | mm |
| Active Area (W * H ) | 154.08*85.92 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 3S9P-LED | pcs |
| Operation temperature | -30~+85 | ℃ |
| Storage temperature | -30~+85 | ℃ |
| Interface | RGB888/50PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8664B+HX8264E | - |
