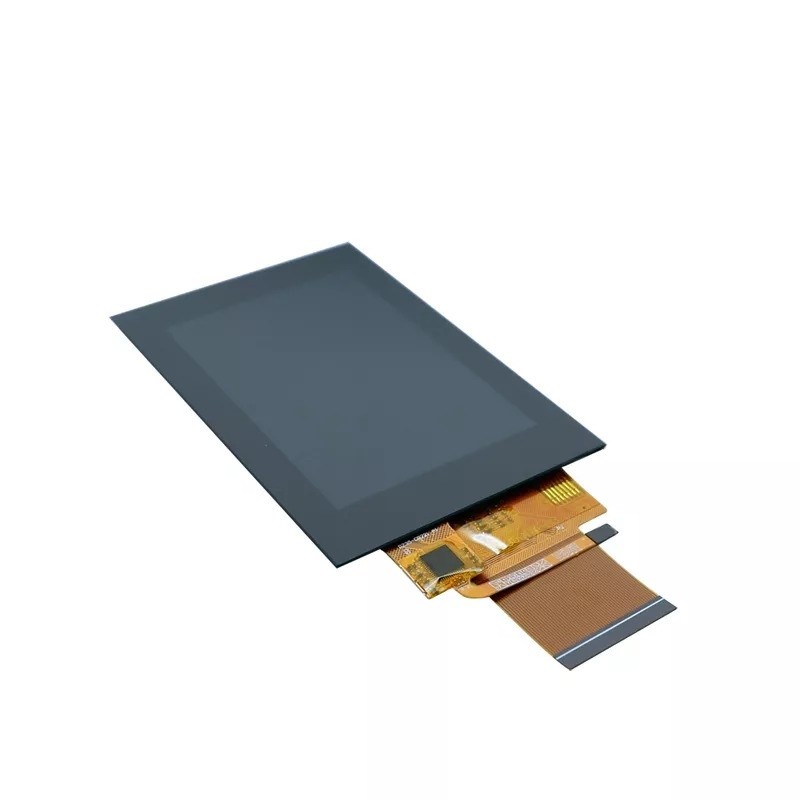

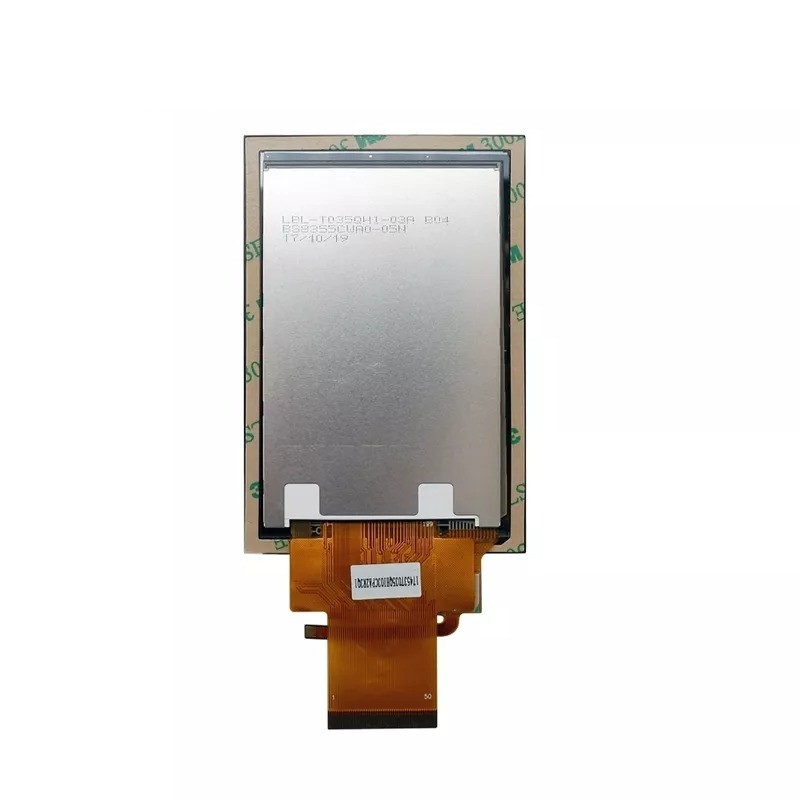

首页 产品展示 3英寸-4英寸 TFT LCD 3.5英寸 LCD RG035QHI-03CP 3.5英寸 320x240 全视角TFT带触摸屏
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.5 | inch |
| Resolution | 320*480 | dots |
| Pixel pitch | 0.153(H)*0.153(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 300 | cd/m2 |
| LCM (W * H * D) | 65.61*97.41*3.75 | mm |
| Active Area (W * H ) | 48.96*73.44 | mm |
| With /Without TP | With CTP | - |
| LED Numbers | 6P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU/RGB/SPI | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ILI9488 | - |
| CTP Dricer IC | GT911 | - |
