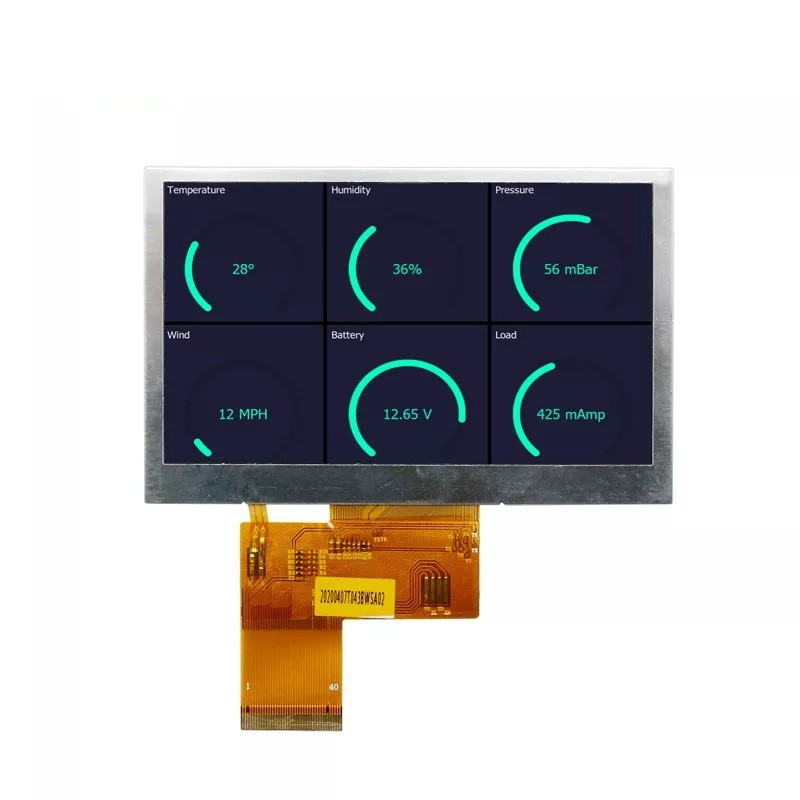

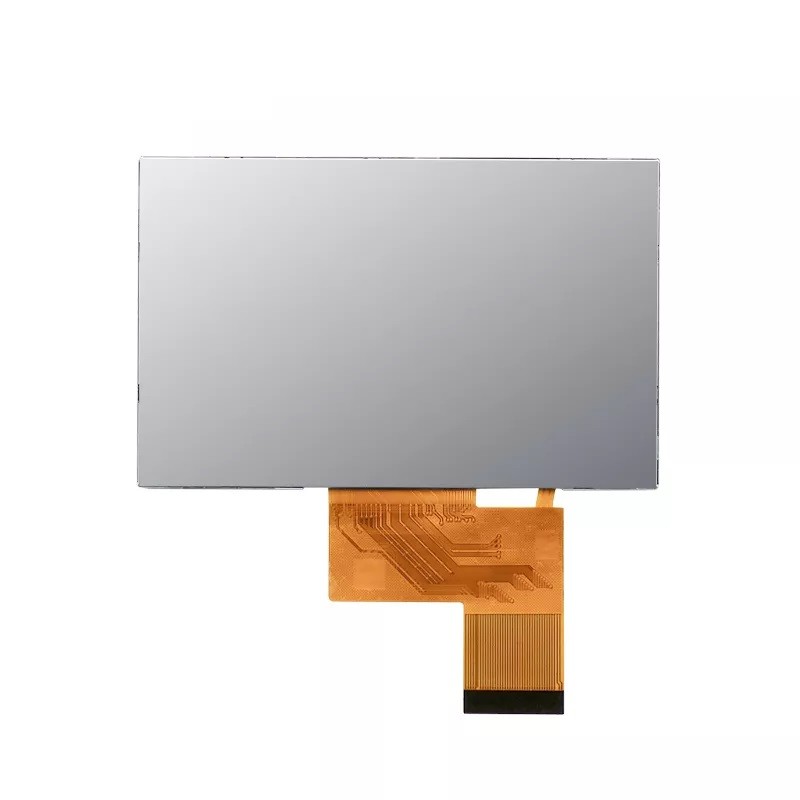

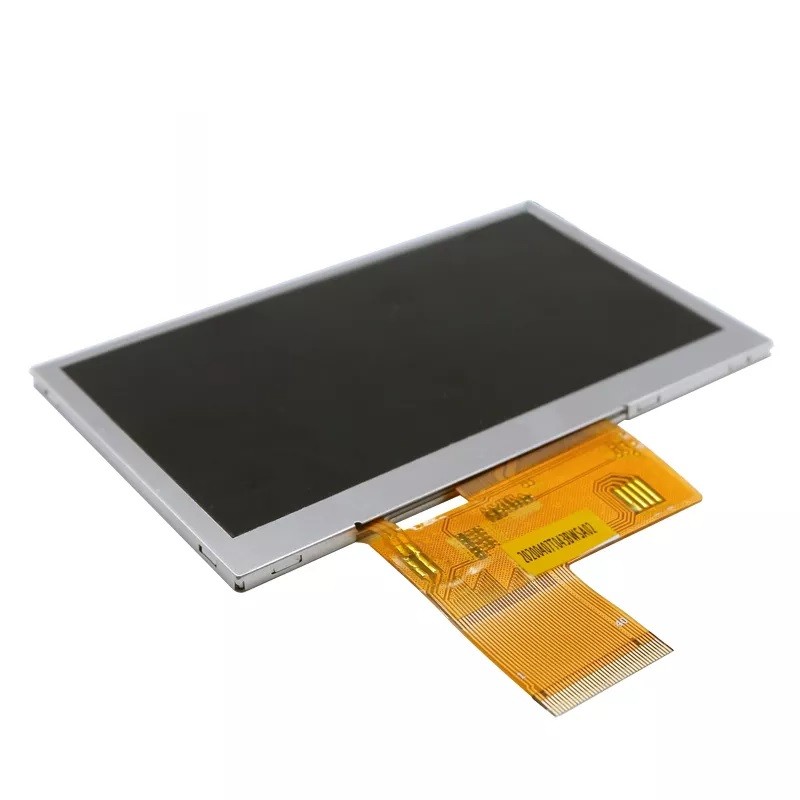

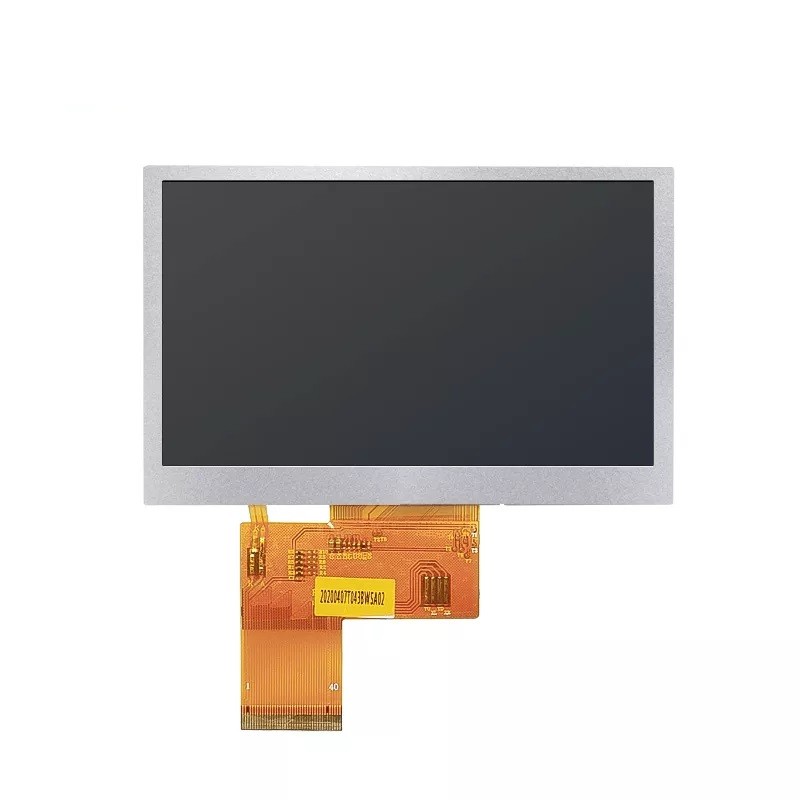

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD RG043BWSA-02 4.3英寸800x480 WVGA全视角LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 4.3 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.1188(H)*0.1122(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 500 | cd/m2 |
| LCM (W * H * D) | 105.50*67.20*3.00 | mm |
| Active Area (W * H ) | 95.04*53.86 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 5S2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888 | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 15.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ST7262E43 | - |
