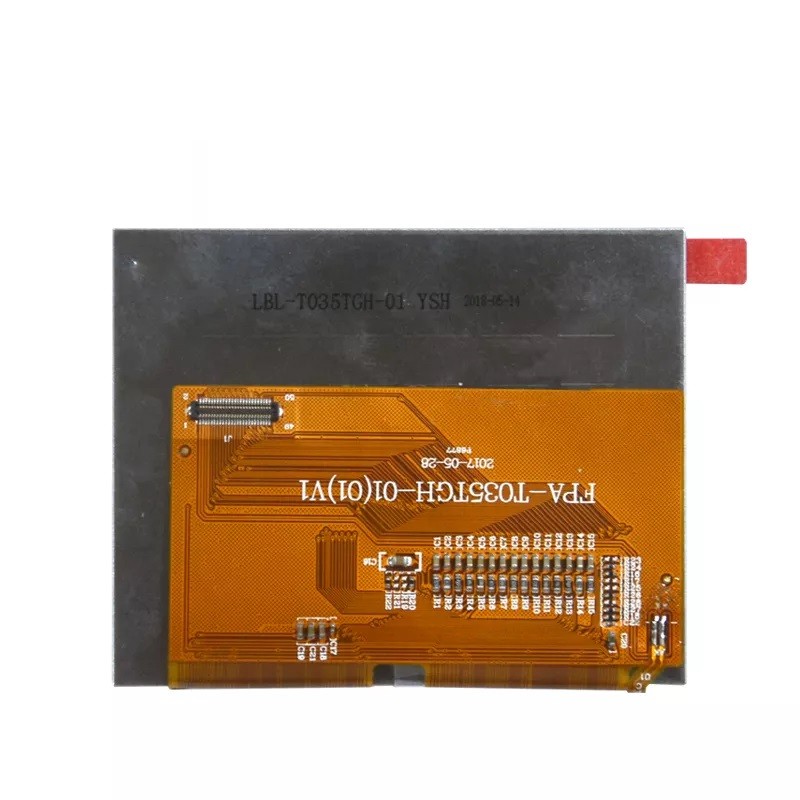

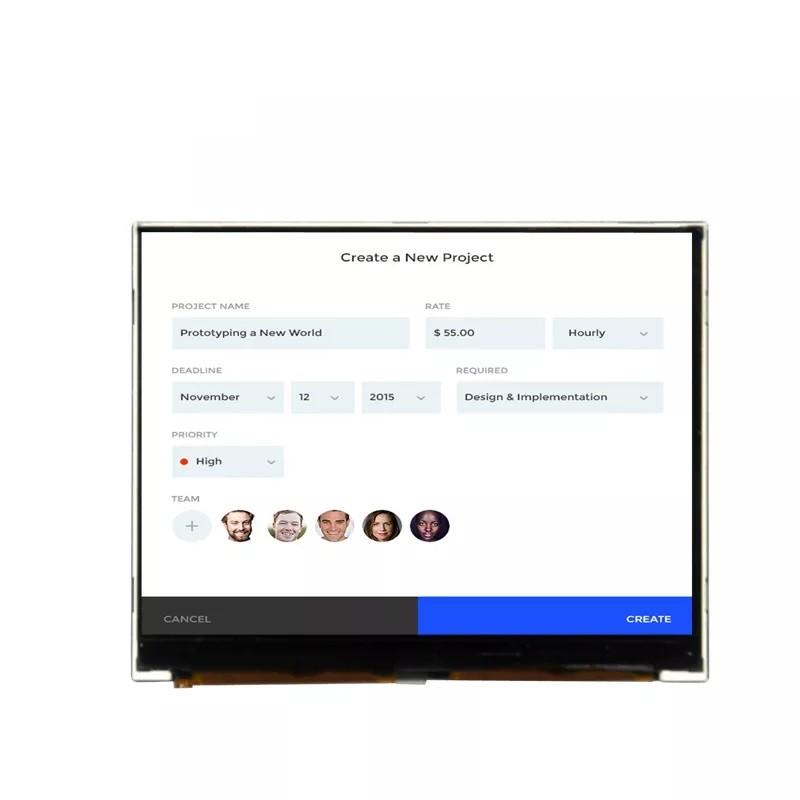

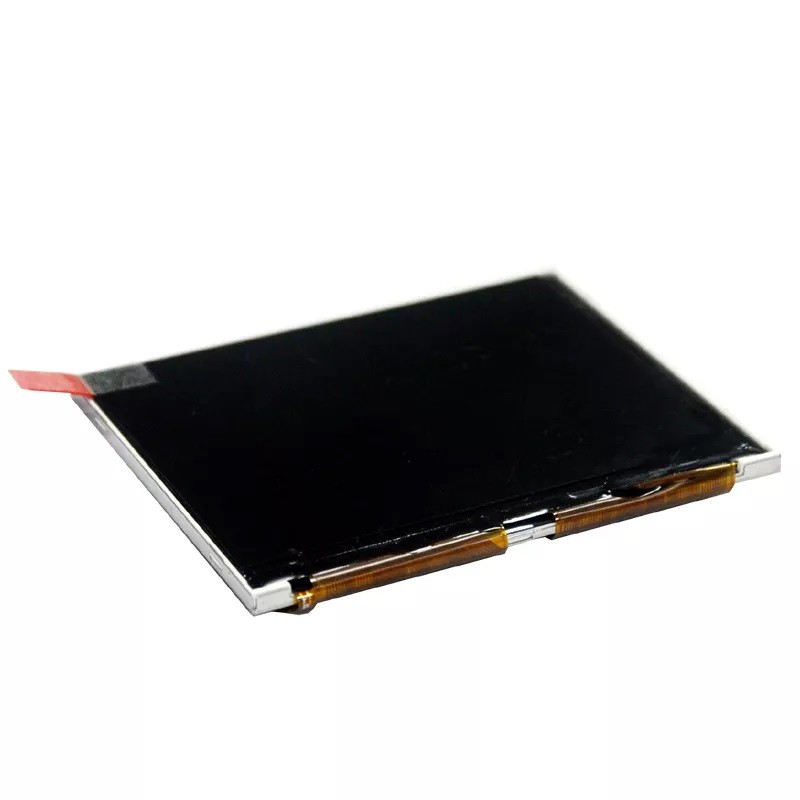

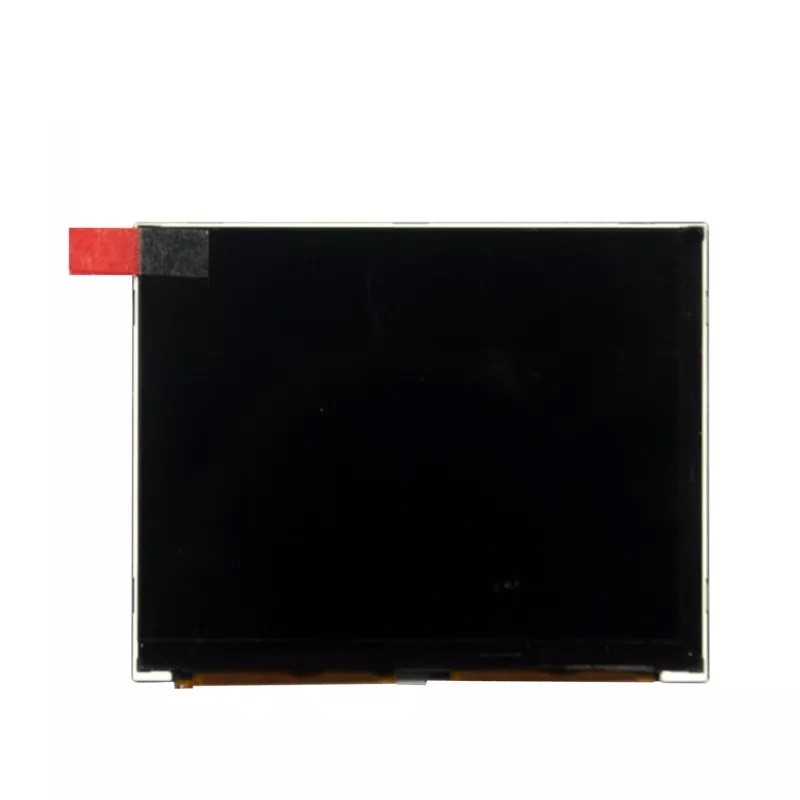

首页 产品展示 3英寸-4英寸 TFT LCD 3.5英寸 LCD RG035TGH-01 3.5英寸 高分辨率800x600 TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.5 | inch |
| Resolution | 800*600 | dots |
| Pixel pitch | 0.0891(H)*0.0891(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 250 | cd/m2 |
| LCM (W * H * D) | 80.00*64.00*3.05 | mm |
| Active Area (W * H ) | 71.28*53.46 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 6S-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888/50PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 18.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8282&HX8677 | - |
