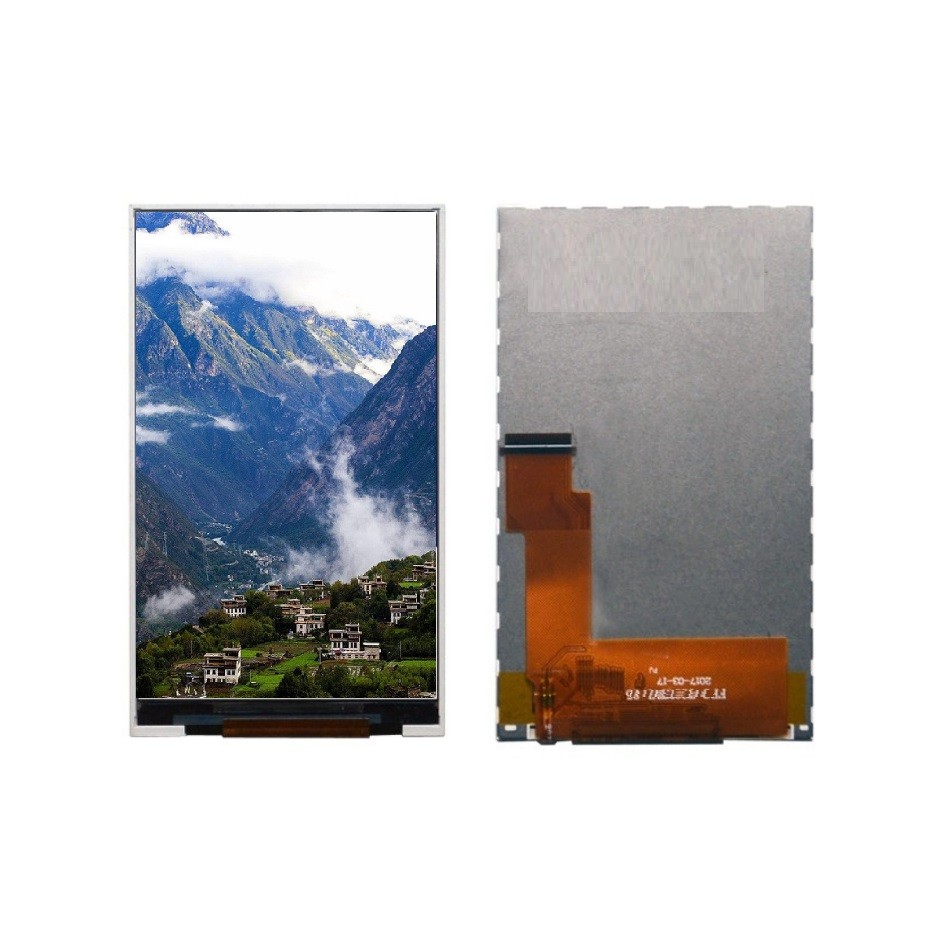

首页 产品展示 3英寸-4英寸 TFT LCD 4英寸 LCD RG040TBT-03R 3.97英寸 TFT LCD 300nit 39pin
| Items | Contents |
| Size | 3.97 inch |
| Resolution | 480*800 dots |
| Pixel Pitch | 0.108(H)*0.108(V) mm |
| Display Mode | IPS/NB |
| Viewing Direction | ALL |
| Grayscale Direction | ALL |
| Luminance | 300 cd/m2 |
| LCM(W*H*D) | 61.72*106.87*3.2 mm |
| Active Area(W*H) | 51.84*86.40 mm |
| With/Without TP | With RTP |
| LED Numbers | 4S2P-LED |
| Operation Temp. | -20~+70 ºC |
| Storage Temp. | -30~+80 ºC |
| Interface | 2LANE MIPI/24PIN |
| LCM Power Supply | 2.8 v |
| LED Power Supply | 24.0 v |
| Color Depth | 262K |
| LCM Driver IC | ILI9806E |
