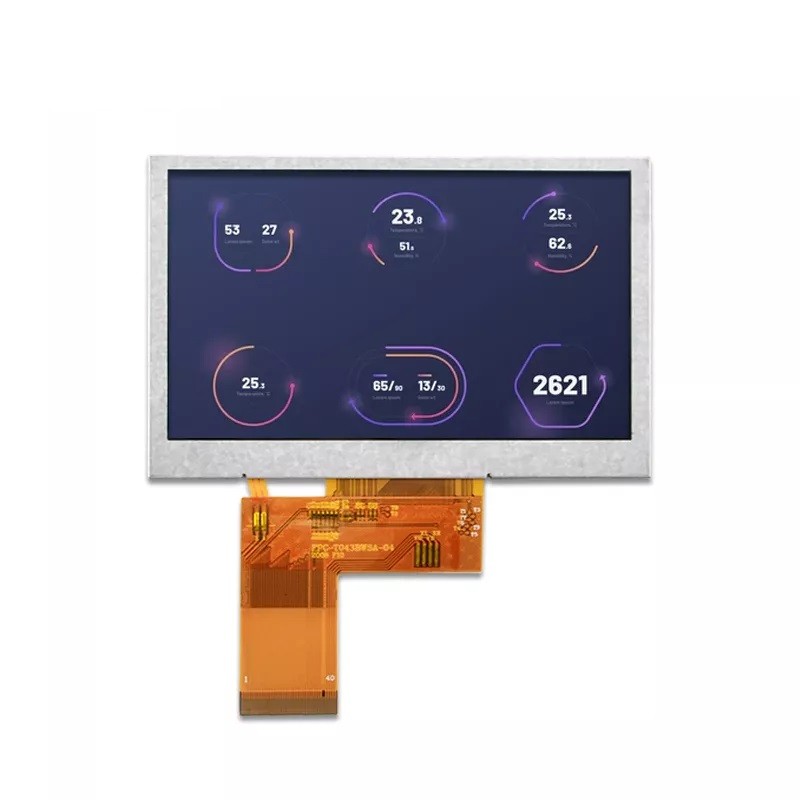

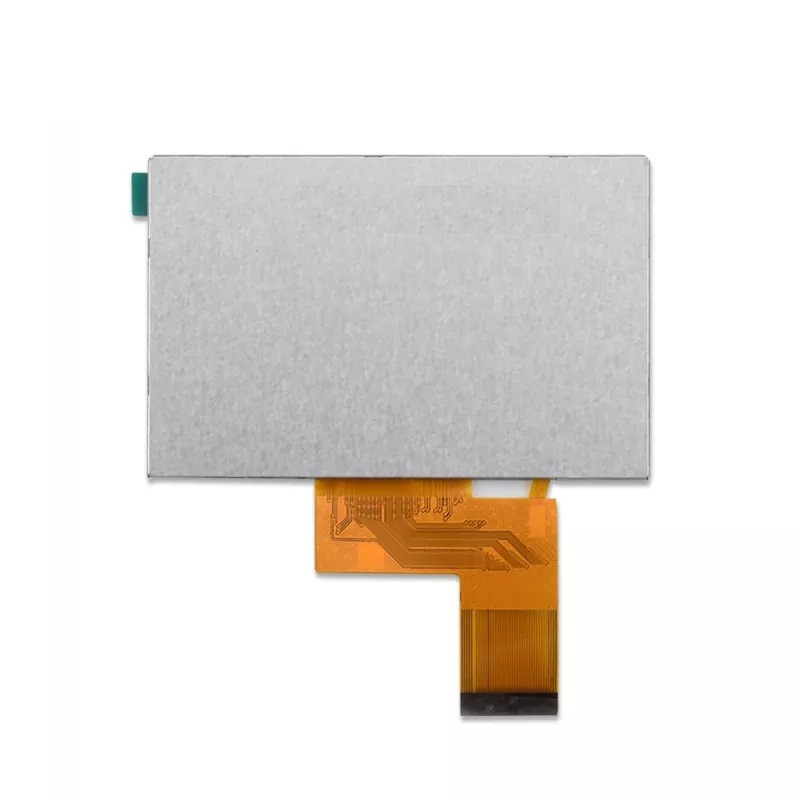

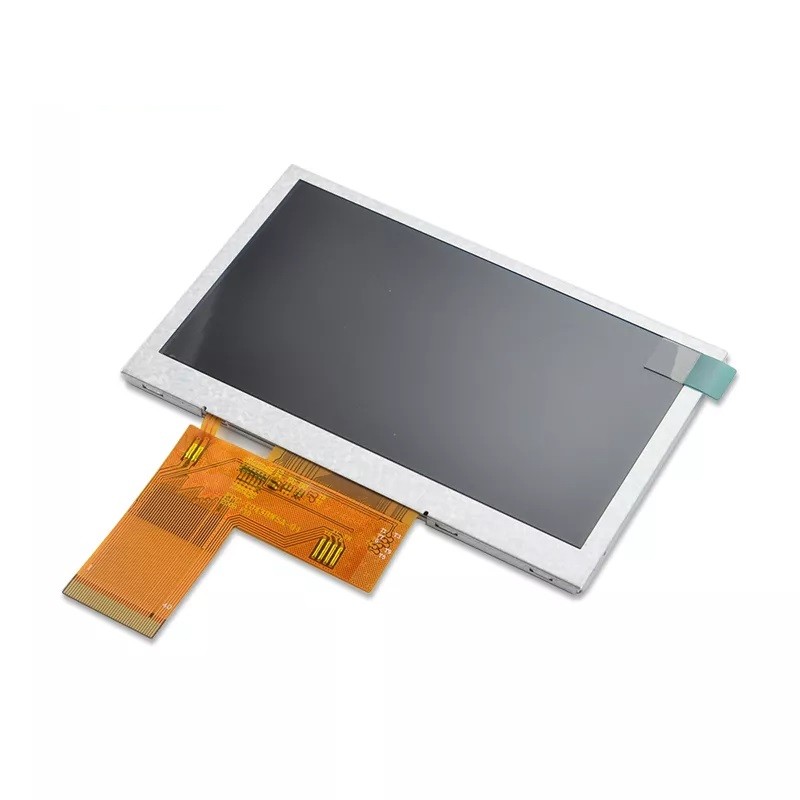

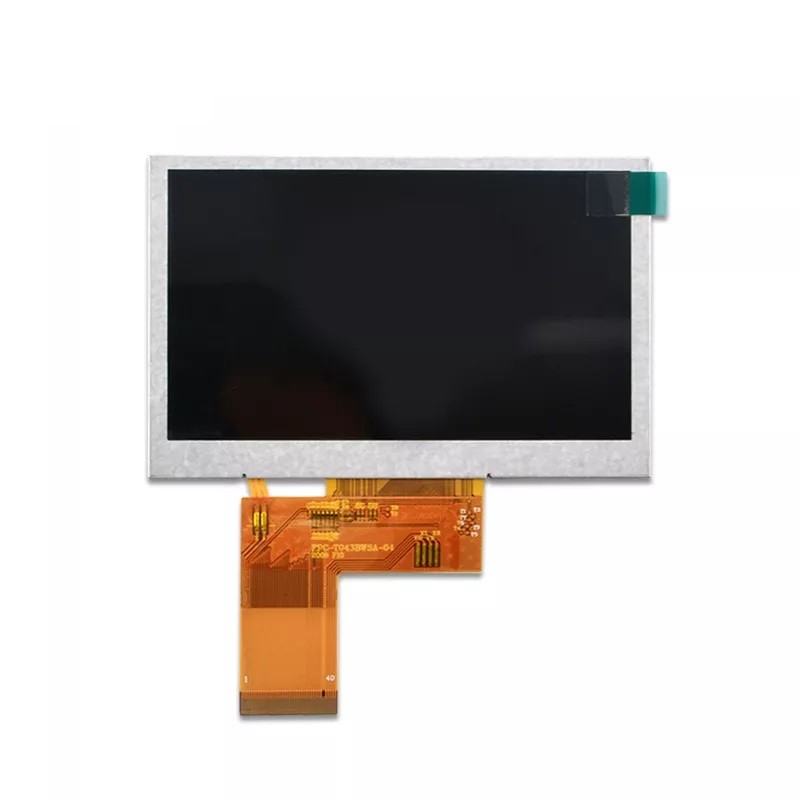

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD RG043BPSA-04 4.3英寸 480x272阳光下可视IPS TFT显示
| Size | 4.3 inch |
| Resolution | 480*272 |
| Pixel pitch | 0.1188(H)*0.1122(V) mm |
| Display Mode | IPS/NB |
| Viewing Direction | ALL |
| Gray Scale Inversion Direction | ALL |
| Luminance | 1000 cd/m |
| LCM (W * H * D) | 105.50*67.20*2.95 mm |
| Active Area (W * H ) | 95.04*53.86 mm |
| With /Without TP | Without TP |
| LED Numbers | 5S2P-LED pcs |
| Operation temperature | -20~+70 ℃ |
| Storage temperature | -30~+80 ℃ |
| Interface | RGB888 |
| LCM Power Supply | 3.3 V |
| LED Power Supply | 15.0 V |
| Color Depth | 16.7M |
| LCM Driver IC | ST7283-G4 |
