首页      产品展示     4.3英寸-6.8英寸 TFT LCD     4.3英寸 LCD       RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST728


  • RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4
  • RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4
  • RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4
RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4

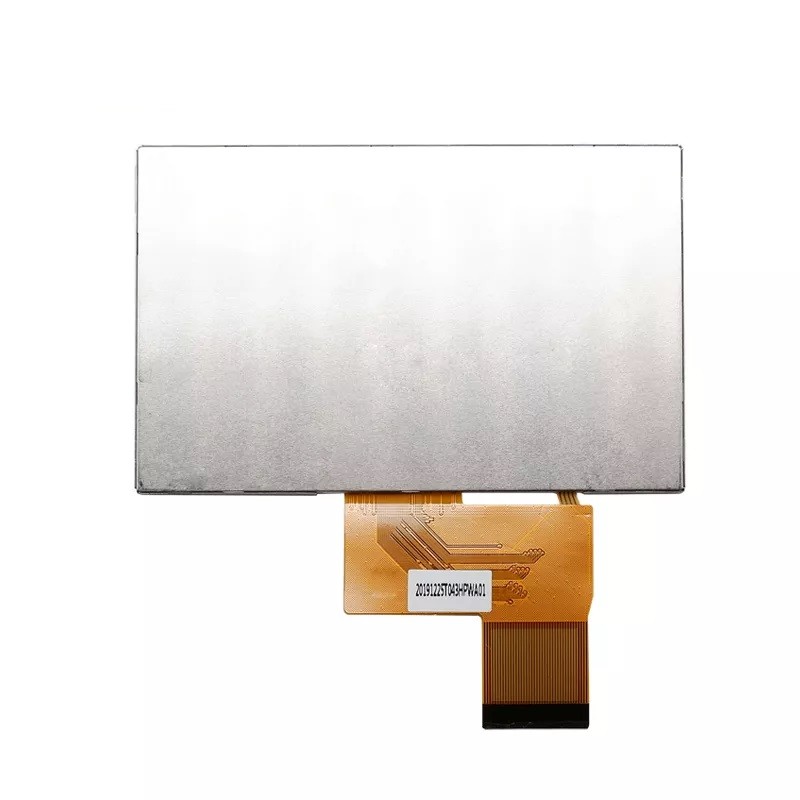

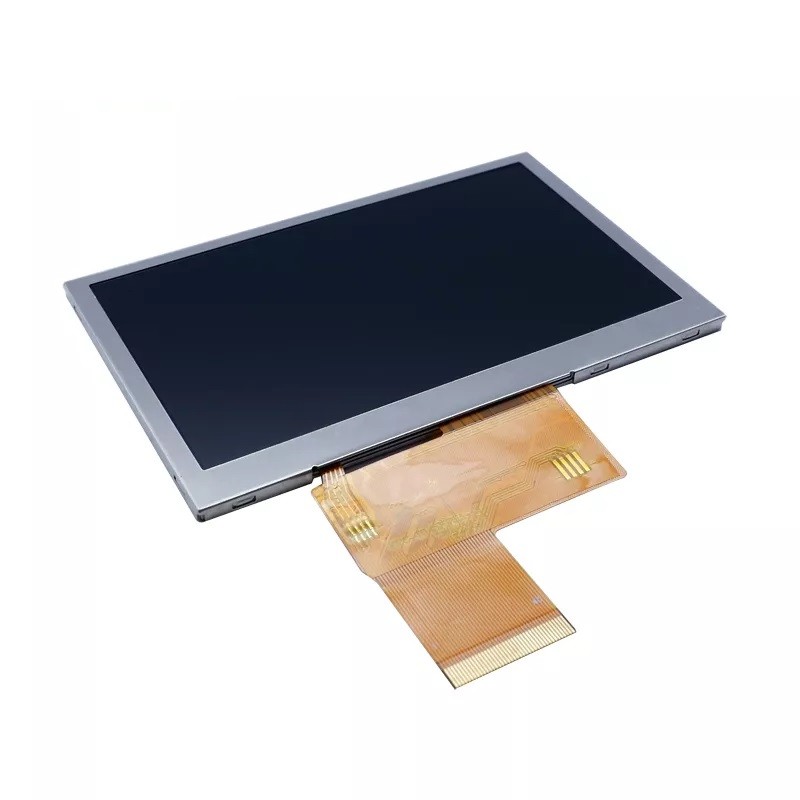

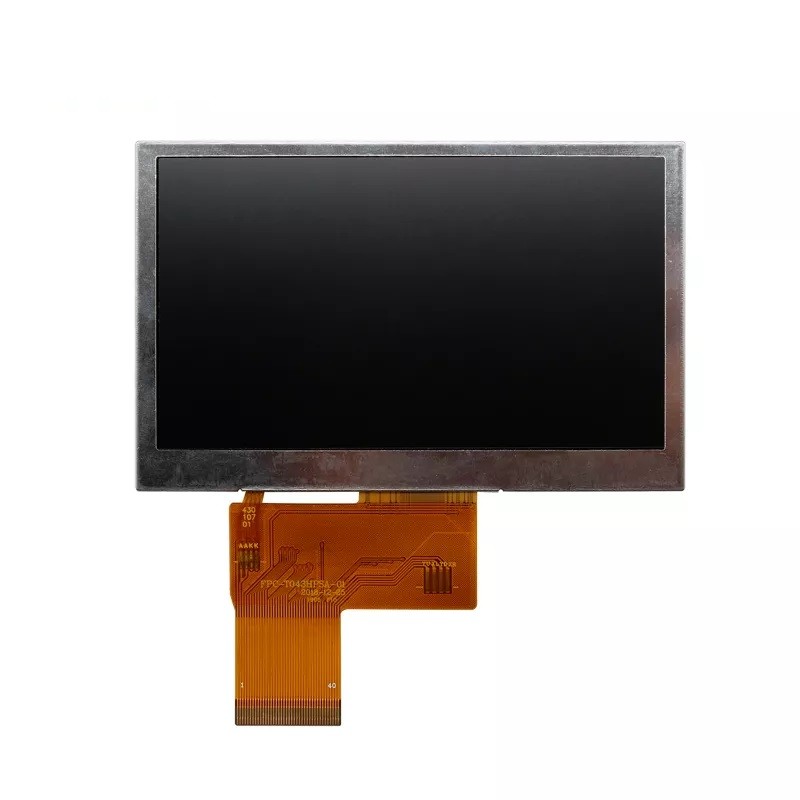

RG043BPSA-01 4.3英寸480x272 TFT-LCD模块ST7283-G4

  • 产品项目 : RG043BPSA-01
  • 类别: 4.3英寸 LCD
  • Resolution: 480*(RGB)*272
  • Luminance: 500nits
  • LCM (W * H * D): 105.50*67.20*2.95mm
  • LCM Driver IC: ST7283-G4
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 4.3 inch
Resolution 480*272 dots
Pixel pitch 0.1188(H)*0.1122(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 500 cd/m2
LCM (W * H * D) 105.50*67.20*2.95 mm
Active Area (W * H ) 95.04*53.86 mm
With /Without TP Without TP -
LED Numbers 5S2P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB888 -
LCM Power Supply 3.3 V
LED  Power Supply 15.0 V
Color Depth 16.7M -
LCM Driver IC ST7283-G4 -
