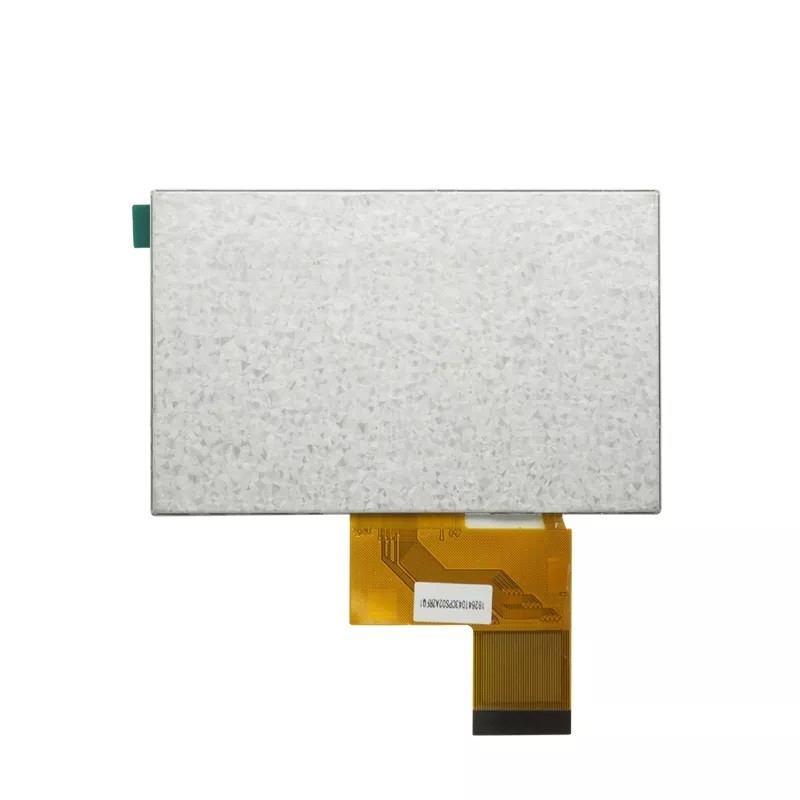

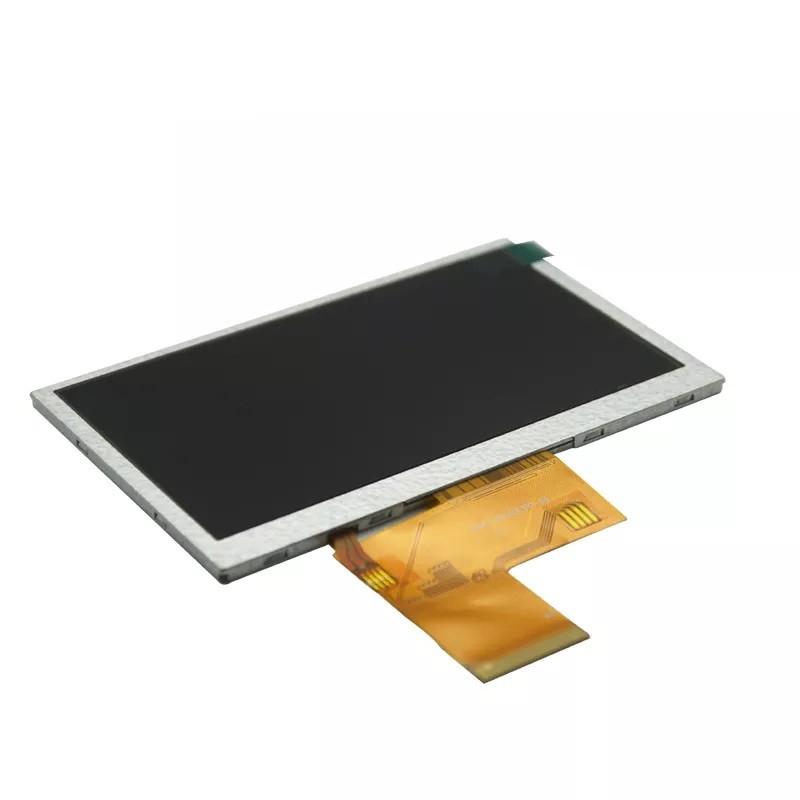

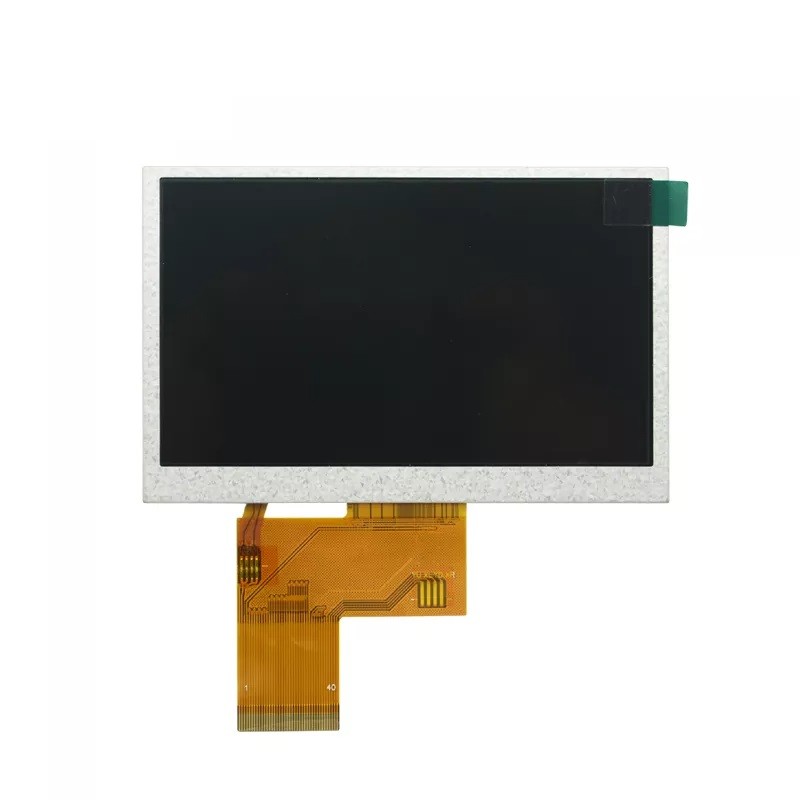

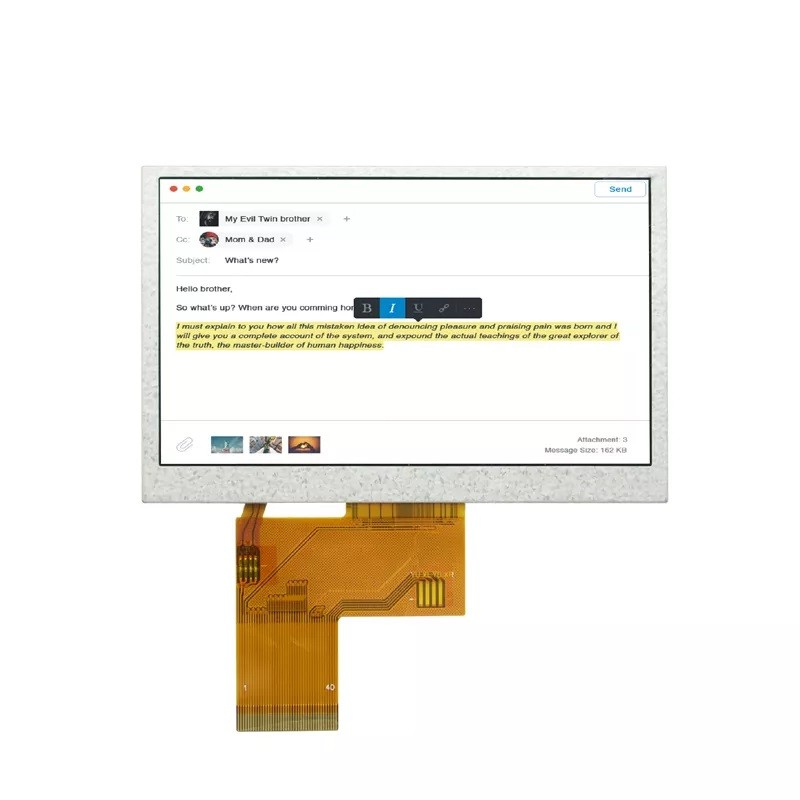

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD RG043QPH-02 4.3英寸 480X272高亮TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 4.3 | inch |
| Resolution | 480*272 | dots |
| Pixel pitch | 0.198(H)x0.198(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 500 | cd/m2 |
| LCM (W * H * D) | 105.50*67.20*3.00 | mm |
| Active Area (W * H ) | 95.04*53.86 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 5S2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 15.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ILI6480 | - |
