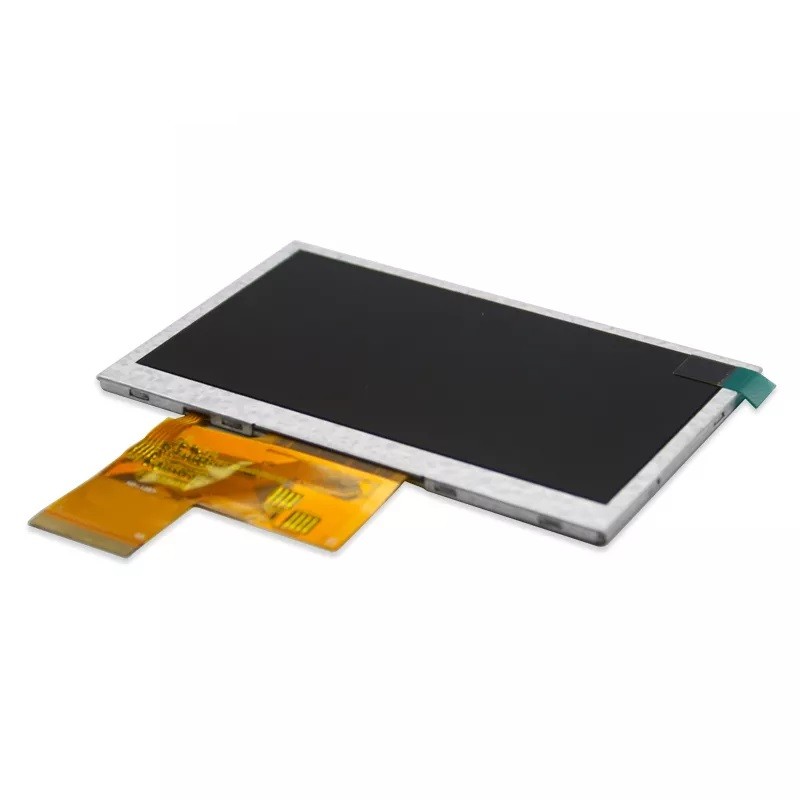

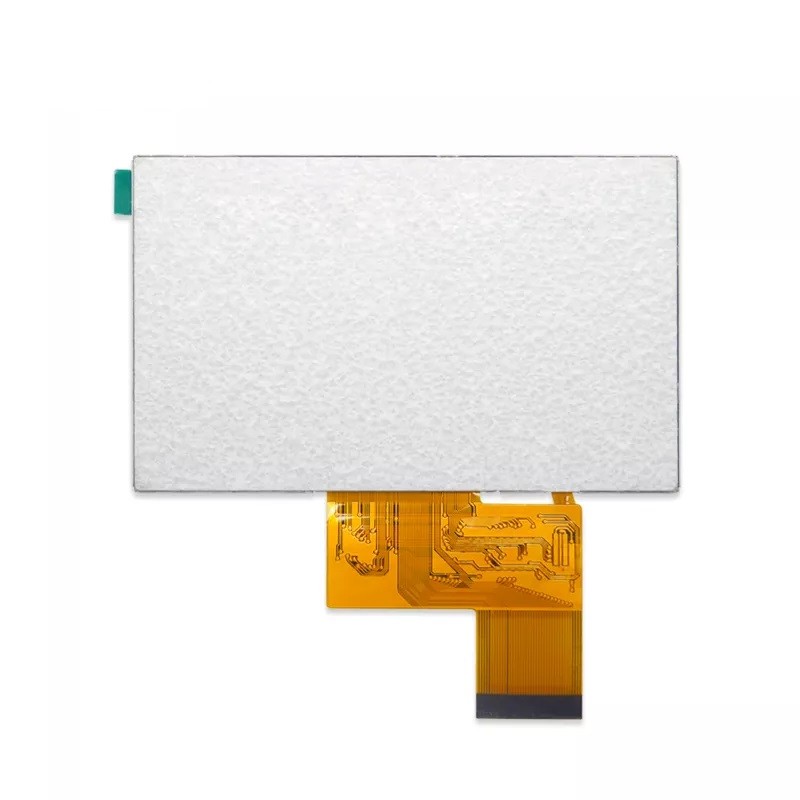

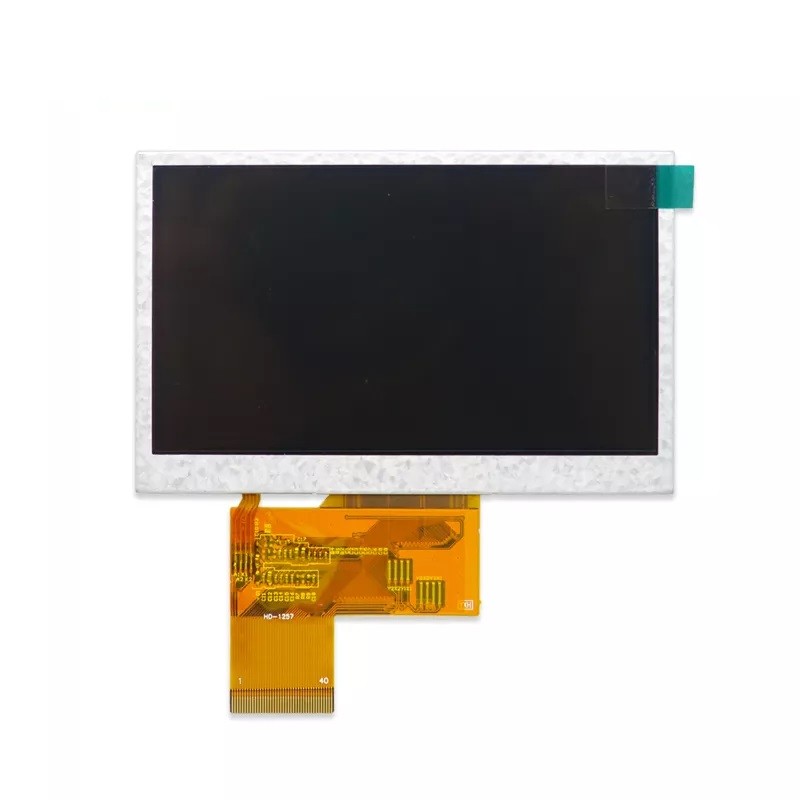

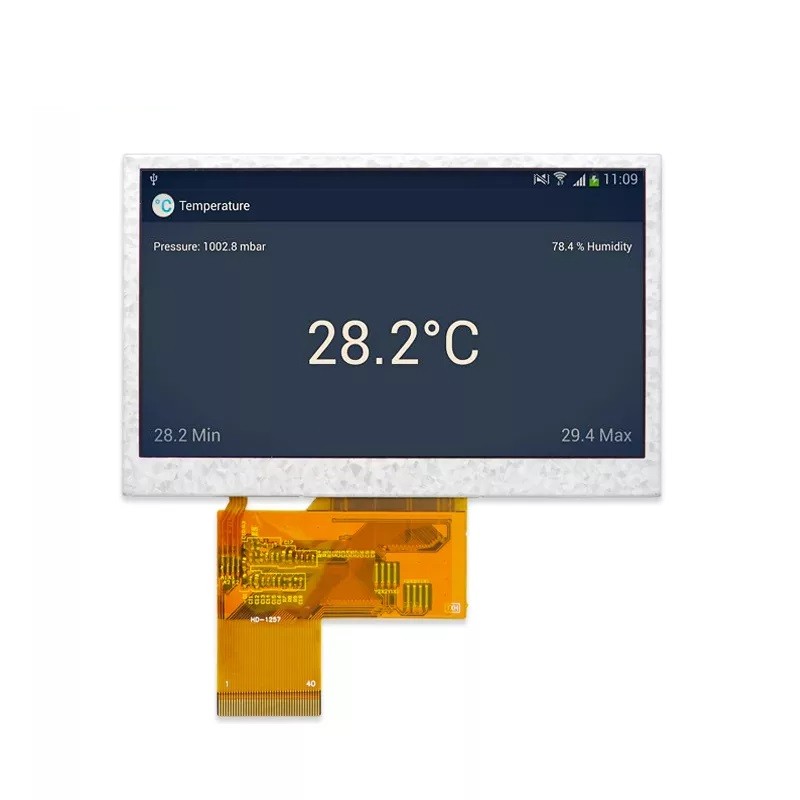

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 4.3英寸 LCD RG043QPI-03 4.3英寸480x272 TFT LCD显示模块ILI6
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 4.3 | inch | |
| Resolution | 480*272 | dots | |
| Pixel pitch | 0.198(H)x0.198(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 12 | o'clock | |
| Gray Scale Inversion Direction | 6 | o'clock | |
| Luminance | 300 | cd/m2 | |
|

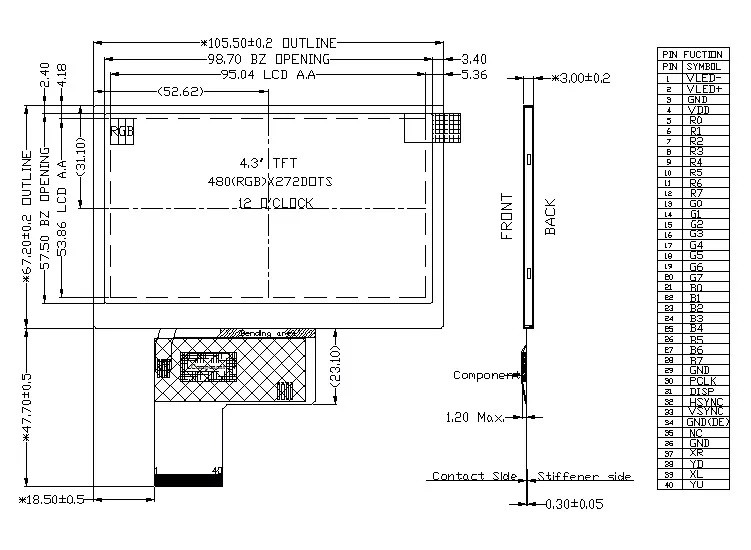

Mechanical Characteristics |
LCM (W * H * D) | 105.50*67.20*3.00 | mm |
| Active Area (W * H ) | 95.04*53.86 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 8S2P-LED | pcs | |
| Operation temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | RGB888/40PIN | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 24.0 | V | |
| Color Depth | 16.7M | - | |
| LCM Driver IC | ILI6485A | - | |
